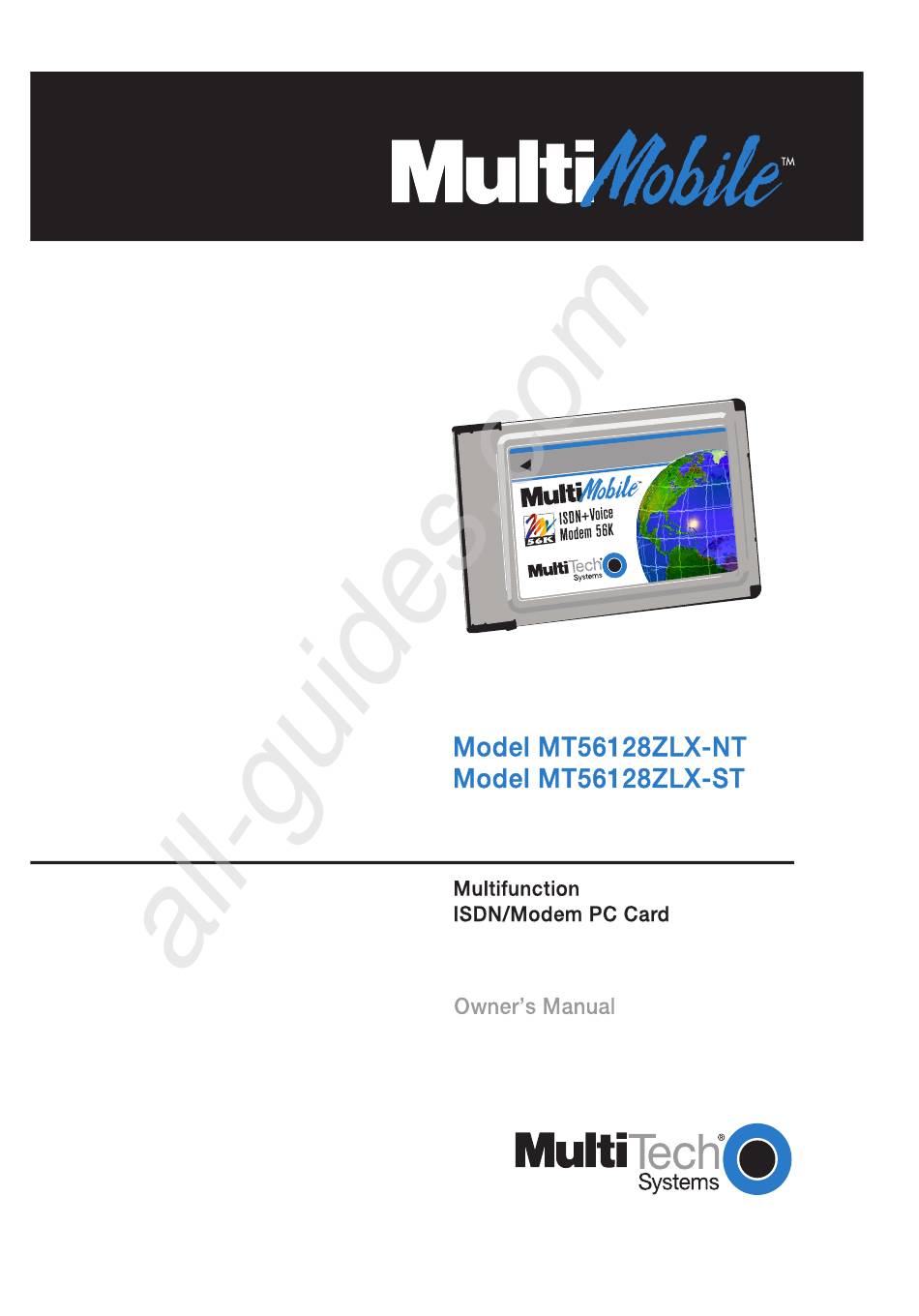

Multi-Tech MultiMobile MT56128ZLX-NT Owner's Manual

Multifunction isdn/modem pc card
Hide thumbs

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MultiMobile MT56128ZLX-NT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Multi-Tech MultiMobile MT56128ZLX-NT

Summary of Contents for Multi-Tech MultiMobile MT56128ZLX-NT

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 All manuals and user guides at all-guides.com Owner’s Manual MultiMobile Model #MT56128ZLX-NT & MT56128ZLX-ST P/N 82076503 Record of Revisions Revision Description TRADEMARKS...

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com Contents Chapter 1—Introduction/Description Chapter 2—Hardware/Driver Installation Chapter 3—Application Program Interfaces (APIs) Chapter 4—Troubleshooting Chapter 5—Service, Warranty, Technical Support...
  • Page 4 All manuals and user guides at all-guides.com Appendix Index...

  • Page 5: Chapter 1-Introduction/Description

    All manuals and user guides at all-guides.com Chapter 1—Introduction/Description...
  • Page 6 All manuals and user guides at all-guides.com Chapter 1—Introduction/Description ongratulations Features MultiMobile...
  • Page 7 All manuals and user guides at all-guides.com Chapter 1—Introduction/Description Technical Specifications Trade Name Model Numbers: System Requirements Modem Note: ISDN Standards MultiMobile...
  • Page 8 All manuals and user guides at all-guides.com Chapter 1—Introduction/Description Line Rate DTE Rate ISDN Network & Switch Compatibility B-Channel Protocols Application Program Interfaces Operating System Support MultiMobile...

  • Page 9: Chapter 2-Hardware/Driver Installation

    All manuals and user guides at all-guides.com Chapter 1—Introduction/Description Shipping Kit Contents About This Manual Chapter 1—Introduction/Description Chapter 2—Hardware/Driver Installation Chapter 3—Application Program Interfaces (APIs) Chapter 4—Service, Warranty, Technical Support Appendix A—Pin Assignments Appendix B—AT Commands, S-Registers, and Result Codes Appendix C—Upgrade Procedures Appendix D—Regulatory Information Index...
  • Page 10 All manuals and user guides at all-guides.com Chapter 1—Introduction/Description MultiMobile...
  • Page 11 All manuals and user guides at all-guides.com Chapter 2—Hardware/Driver Installation...
  • Page 12 All manuals and user guides at all-guides.com Chapter 2—Hardware/Driver Installation Installing PC Card and Drivers/Software Safety Warnings MultiMobile...
  • Page 13 All manuals and user guides at all-guides.com Chapter 2—Hardware/Driver Installation Windows 95/98 Installation—VCOMM & CAPI Before you start— MultiMobile...
  • Page 14 All manuals and user guides at all-guides.com Chapter 2—Hardware/Driver Installation Note: MultiMobile...
  • Page 15 All manuals and user guides at all-guides.com Chapter 2—Hardware/Driver Installation Windows 95/98 Installation—NDIS Note: Note: MultiMobile...
  • Page 16 All manuals and user guides at all-guides.com Chapter 2—Hardware/Driver Installation Windows NT Installation Note: MultiMobile...
  • Page 17 All manuals and user guides at all-guides.com Chapter 2—Hardware/Driver Installation MultiMobile...
  • Page 18 All manuals and user guides at all-guides.com Chapter 2—Hardware/Driver Installation Customizing the Terminal Adapter (Optional) MultiMobile...
  • Page 19 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs)
  • Page 20 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Introduction Note: MultiMobile...
  • Page 21 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) VCOMM (Virtual Communications Port) Note: Making Modem over ISDN Data Calls MultiMobile...
  • Page 22 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Making ISDN Phone over ISDN Voice Calls Note: To make voice calls, use Voice Dialer in the Configuration Utility. MultiMobile...
  • Page 23 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) To answer incoming voice calls over ISDN line Making Analog Fax/Modem over PSTN Data Calls MultiMobile...
  • Page 24 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) B-Channel Protocol Configuration V.120 Protocol Configuration MultiMobile...
  • Page 25 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) V.110 Protocol Configuration MultiMobile...
  • Page 26 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Async to Sync PPP Connection MultiMobile...
  • Page 27 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Multi-Link PPP Connection <first_ISDN_phone_number> + <secondary_ISDN_phone_number> <first_ISDN_phone_number> & <secondary_ISDN_phone_number> <first_ISDN_phone_number> ! <secondary_ISDN_phone_number> MultiMobile...
  • Page 28 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Making ISDN Data Calls Using ISDN AT Commands to Establish Multi-Link PPP Connections MultiMobile...
  • Page 29 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) ATD<first_ISDN_phone_number>+<secondary_ISDN_phone_number> ATD<first_ISDN_phone_number>&<secondary_ISDN_phone_number> ATD<first_ISDN_phone_number>!<secondary_ISDN_phone_number> MultiMobile...
  • Page 30 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Enabling Multi-Link PPP Options with the Configuration Utility MultiMobile...
  • Page 31 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) NDIS (Network Driver Interface Specification) How to Use Dial-Up Networking (DUN) with NDIS for Internet Connections MultiMobile...
  • Page 32 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) MultiMobile...
  • Page 33 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) How to Use Dial-Up Networking with NDIS for Multi-Link PPP Connections MultiMobile...
  • Page 34 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Dial-Up Networking (DUN) Note: Installation Setup Connections MultiMobile...
  • Page 35 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) MultiMobile...
  • Page 36 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) CAPI (Common ISDN Application Programming Interface) Note: MultiMobile...
  • Page 37 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) NOTE: Preparation Microsoft Exchange RVS-COM Lite Installation MultiMobile...
  • Page 38 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) ISDN CAPI Adapter Configuration ISDN Line/Phone Numbers Configuration MultiMobile...
  • Page 39 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Note: Note: calling party number E-Mail Transport Services Configuration MultiMobile...
  • Page 40 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) File Transfer Host Configuration (Host Mode in RVS CommCenter) Applications Using PPP Protocol to Connect to ISPs MultiMobile...
  • Page 41 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Using Multi-Link PPP to Connect to ISPs MultiMobile...
  • Page 42 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Making X.75 Connections Act as a Called Party (for incoming calls) MultiMobile...
  • Page 43 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Act as a Calling Party (make outgoing calls) EuroFile Transfer Applications Act as a Called Party (Host Mode) MultiMobile...
  • Page 44 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Act as a Calling Party MultiMobile...
  • Page 45 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) G3 Faxing Applications Receiving Sending MultiMobile...
  • Page 46 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Voice Applications Digital Answering Machine MultiMobile...
  • Page 47 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) Greeting/End Message Recording MultiMobile...
  • Page 48 All manuals and user guides at all-guides.com Chapter 3—Application Program Interfaces (APIs) ISDN Phone MultiMobile...

  • Page 49: Chapter 4-Troubleshooting

    All manuals and user guides at all-guides.com Chapter 4—Troubleshooting...
  • Page 50 All manuals and user guides at all-guides.com Chapter 4—Troubleshooting Troubleshooting When running applications, the system reports “Open port fail.” MultiMobile...
  • Page 51 All manuals and user guides at all-guides.com Chapter 4—Troubleshooting No Response to AT Commands The TA does not execute the command line The TA does not respond after you execute an AT Command The software does not control the TA properly or cannot detect the TA MultiMobile...
  • Page 52 All manuals and user guides at all-guides.com Chapter 4—Troubleshooting The characters on the screen are doubled No text appears on the screen when in Command mode Communications software dials, but fails to connect In NDIS mode (Microsoft ISDN Accelerator Pack already installed), when your laptop is turned on, Microsoft ISDN Accelerator Pack reports “Network adapter fail.”...
  • Page 53 All manuals and user guides at all-guides.com Chapter 4—Troubleshooting MultiMobile throughput is not as fast as expected. I can run the application successfully, and the MultiMobile responds OK when entering AT commands, but I cannot originate/answer ISDN calls. MultiMobile...
  • Page 54 All manuals and user guides at all-guides.com Chapter 4—Troubleshooting How can I make sure MultiMobile hardware functions properly? ISDN Hardware is OK ISDN Hardware is “BAD.” When the MultiMobile is plugged in, the PCMCIA alert message doesn’t sound. When installing NDIS API, the installation erroneously requests insert the driver disk .
  • Page 55 All manuals and user guides at all-guides.com Chapter 4—Troubleshooting COM Port and IRQ Conflicts MultiMobile...
  • Page 56 All manuals and user guides at all-guides.com Chapter 4—Troubleshooting Windows 95 COM Port and IRQ Conflicts MultiMobile...

  • Page 57: Chapter 5-Service, Warranty, Technical Support

    All manuals and user guides at all-guides.com Chapter 5—Service, Warranty, Technical Support...
  • Page 58 All manuals and user guides at all-guides.com Chapter 5—Service, Warranty, Tech Support Introduction Limited Warranty On-line Warranty Registration MultiMobile...
  • Page 59 All manuals and user guides at all-guides.com Chapter 5—Service, Warranty, Tech Support Software User License Agreement MultiMobile...
  • Page 60 All manuals and user guides at all-guides.com Chapter 5—Service, Warranty, Tech Support Tech Support MultiMobile...
  • Page 61 All manuals and user guides at all-guides.com Chapter 5—Service, Warranty, Tech Support Service MultiMobile...
  • Page 62 All manuals and user guides at all-guides.com Chapter 5—Service, Warranty, Tech Support About the Multi-Tech BBS To logon to the Multi-Tech BBS To download a file MultiMobile...
  • Page 63 All manuals and user guides at all-guides.com Chapter 5—Service, Warranty, Tech Support If you don’t know the file name MultiMobile...
  • Page 64 All manuals and user guides at all-guides.com Chapter 5—Service, Warranty, Tech Support About CompuServe About the Internet About the Multi-Tech Fax-Back System MultiMobile...
  • Page 65 All manuals and user guides at all-guides.com Appendix...
  • Page 66 All manuals and user guides at all-guides.com Chapter 6—Appendix Appendix A: Pin Assignments The RJ-45 Pin-outs of U-interface The RJ-45 Pin-outs of S/T-interface The RJ-11 Pin-outs of Analog Fax/Modem DAA MultiMobile...
  • Page 67 All manuals and user guides at all-guides.com Chapter 6—Appendix Appendix B: AT Command Summary, S-Register Summary, and Result Codes Summary AT Commands How To Use AT Commands MultiMobile...
  • Page 68 All manuals and user guides at all-guides.com Chapter 6—Appendix & COMMAND OPTIONS FUNCTION DESCRIPTION MultiMobile...
  • Page 69 All manuals and user guides at all-guides.com Chapter 6—Appendix & COMMAND OPTIONS FUNCTION DESCRIPTION MultiMobile...
  • Page 70 All manuals and user guides at all-guides.com Chapter 6—Appendix & COMMAND OPTIONS FUNCTION DESCRIPTION Note: The ! command modifier is used to change configuration parameters that change infrequently—typically, only once at installation. Using these ! commands during normal operation with the telephone line connected to the TA can cause unpredictable results.
  • Page 71 All manuals and user guides at all-guides.com Chapter 6—Appendix & COMMAND OPTIONS FUNCTION DESCRIPTION MultiMobile...
  • Page 72 All manuals and user guides at all-guides.com Chapter 6—Appendix & COMMAND OPTIONS FUNCTION DESCRIPTION MultiMobile...
  • Page 73 All manuals and user guides at all-guides.com Chapter 6—Appendix S-Register Summary REGISTER RANGE DEFAULT DESCRIPTION MultiMobile...
  • Page 74 All manuals and user guides at all-guides.com Chapter 6—Appendix REGISTER RANGE DEFAULT DESCRIPTION MultiMobile...
  • Page 75 All manuals and user guides at all-guides.com Chapter 6—Appendix REGISTER RANGE DEFAULT DESCRIPTION MultiMobile...
  • Page 76 All manuals and user guides at all-guides.com Chapter 6—Appendix REGISTER RANGE DEFAULT DESCRIPTION MultiMobile...
  • Page 77 All manuals and user guides at all-guides.com Chapter 6—Appendix Result Code Summary Terse Verbose MultiMobile...
  • Page 78 All manuals and user guides at all-guides.com Chapter 6—Appendix Terse Verbose MultiMobile...
  • Page 79 All manuals and user guides at all-guides.com Chapter 6—Appendix Appendix C : Upgrade Procedures Introduction Upgrade Overview Step 1: Identify the Modem Firmware MultiMobile...
  • Page 80 All manuals and user guides at all-guides.com Chapter 6—Appendix Step 2: Identify the Current Firmware Version Multi-Tech Web Site Multi-Tech BBS MultiMobile...
  • Page 81 All manuals and user guides at all-guides.com Chapter 6—Appendix Step 3: Download the Upgrade File Multi-Tech Web Site Multi-Tech BBS MultiMobile...
  • Page 82 All manuals and user guides at all-guides.com Chapter 6—Appendix Step 4: Extract the Upgrade Files Step 5: Clear Your Stored Paramenters Step 6: Upgrade the Modem’s Firmware MultiMobile...
  • Page 83 All manuals and user guides at all-guides.com Chapter 6—Appendix DOSFLASH FLASHWIN FLASHNT MultiMobile...
  • Page 84 All manuals and user guides at all-guides.com Chapter 6—Appendix Step 7: Restore Your Parameters MultiMobile...
  • Page 85 All manuals and user guides at all-guides.com Chapter 6—Appendix Appendix D: Regulatory Agency Information FCC Part 68 Telecom MultiMobile...
  • Page 86 All manuals and user guides at all-guides.com Chapter 6—Appendix FAX Branding Statement MultiMobile...
  • Page 87 All manuals and user guides at all-guides.com Chapter 6—Appendix FCC Part 15 Warning: Industry Canada MultiMobile...
  • Page 88 All manuals and user guides at all-guides.com Chapter 6—Appendix Canadian Limitations Notice Notice: Notice: Caution: MultiMobile...
  • Page 89 All manuals and user guides at all-guides.com Chapter 6—Appendix Australian Modem Warning Notice Modem Commands: Call Attempts/Retries: Warning Use of Supplied Power Transformer MultiMobile...
  • Page 90 All manuals and user guides at all-guides.com Chapter 6—Appendix For Voice Modems: Warning Protection Against Contact with TNV Circuit (Internal PC Cards) Warning New Zealand Telecom Warning Notice Warning Notice: Use of Supplied Power Transformer MultiMobile...
  • Page 91 All manuals and user guides at all-guides.com Chapter 6—Appendix Compliance with BABT Requirements Warning: European Low Voltage Directive MultiMobile...
  • Page 92 All manuals and user guides at all-guides.com Chapter 6—Appendix EMC, Safety, and Terminal Directive Compliance Commission Decision “CTR21” MultiMobile...
  • Page 93 All manuals and user guides at all-guides.com Index...
  • Page 94 All manuals and user guides at all-guides.com Index Index MultiMobile...
  • Page 95 All manuals and user guides at all-guides.com Index MultiMobile...
  • Page 96 All manuals and user guides at all-guides.com Index MultiMobile...
