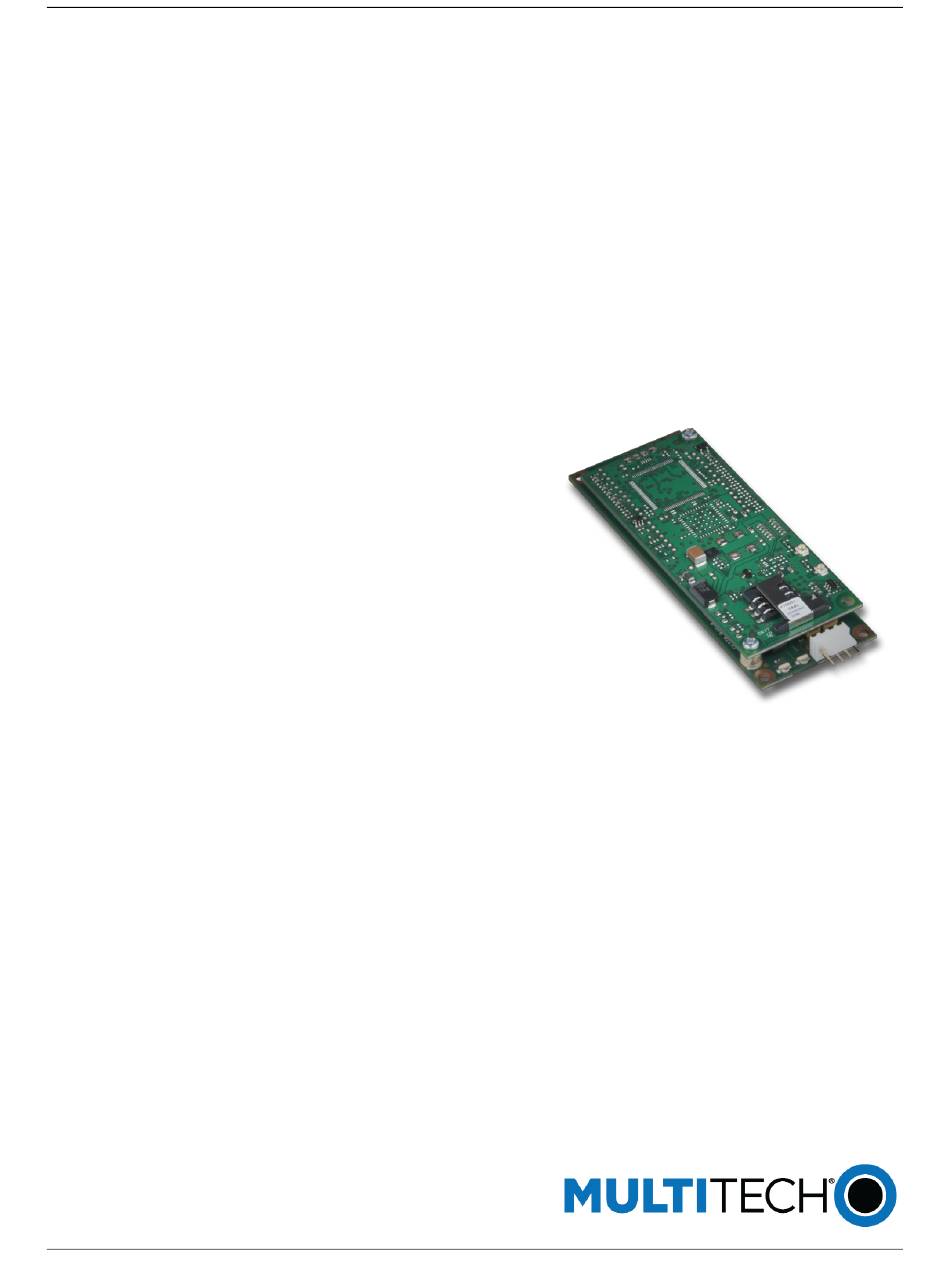

- Page 1 QuickCarrier™ USB MT100UCC MT100UCC-H5 Developer’s Guide...
- Page 2 Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc., to notify any person or organization of such revisions or changes.
-
Page 3: Table Of Contents
Contents Chapter 1 – Overview ..........................6 Product Ordering Guide ........................6 AT Commands ..........................6 Chapter 2 – Design Considerations ......................7 USB Power Considerations ........................7 Noise Suppression Design Considerations .................... 7 Mounting Hardware ..........................7 Electromagnetic Interference (EMI) Considerations ................8 Electrostatic Discharge Control ...................... - Page 4 Contents South African Statement ........................15 Korea Class B Statement ........................15 Waste Electrical and Electronic Equipment Statement ..............16 WEEE Directive ............................ 16 Instructions for Disposal of WEEE by Users in the European Union ........... 16 Restriction of the Use of Hazardous Substances (RoHS) ..............17 Chapter 6 –...
- Page 5 Contents Connection Manager displays "Device Error" status for a serial device ..........33 QuickCarrier Developer’s Guide...
-
Page 6: Chapter 1 - Overview
Global MT100UCC-AK Accessory kit. Includes USB cables, antenna cable, and antenna applicable AT Commands Multi-Tech provides the following AT Command Guides: For Product Reference Guides Title and Document Product Number MT100UCC-H5 H5 AT Commands Reference Guide (S000574) All reference guides are available at www. -
Page 7: Chapter 2 - Design Considerations
Chapter 2 – Design Considerations USB Power Considerations ● Use a high speed USB cable that is as short as possible. It is recommended that you use a 12 inch cable. Some computers with high speed USB connectors run additional cables to the mother board. The additional length can then cause enumeration issues. -
Page 8: Electromagnetic Interference (Emi) Considerations
Program Plan Technical Requirements (grounding/bonding systems, personnel grooming, protected areas, packaging, marking, equipment, and handling), and Sensitivity Testing. Multi-Tech Systems, Inc. strives to follow all of these recommendations. Input protection circuitry has been incorporated into the Multi-Tech devices to minimize the effect of this static buildup, proper precautions should be taken to avoid exposure to electrostatic discharge during handling. -
Page 9: Chapter 3 - Antenna System And Device Labeling
The antenna must be the same type, with similar in-band and out-of-band radiation patterns. Coax Cables Specifications Category Description Cable Type Coaxial Cable Attenuation <1.0db Connector Impedance 50 ohm Maximum Cable Length 16" (40 cm) You can order optional antenna cables from Multi-Tech Systems, Inc. QuickCarrier Developer’s Guide... -
Page 10: Oem Integration
OEM Integration FCC Grant Notes The OEM should follow all the grant notes listed below. Otherwise, further testing and device approvals may be necessary. The antenna gain, including cable loss, for the radio you are incorporating into your product design must not exceed the requirements at 850 MHz and 1900 MHz as specified by the FCC grant for mobile operations and fixed mounted operations as defined in 2.1091 and 1.1307 of the FCC rules for satisfying RF exposure compliance. -
Page 11: Fcc Definitions
The Multi-Tech SocketModem is an Industry and/or Carrier Approved modem. In most cases, when integrated and used with an antenna system that was part of the Multi-Tech modem certification, no additional approvals or certifications are required (however, EV-DO has a few exceptions) for the device you develop as long as the following are met: ●... -
Page 12: Chapter 4 - Safety Notices
Chapter 4 – Safety Notices Note to OEMs: The following safety statements may be used in your final product documentation. RF Safety Remote modems are cellular devices. It is important to follow any special regulations regarding the use of radio equipment due in particular to the possibility of Radio Frequency (RF) interference. Caution: A separation distance of at least 20 cm must be maintained between the modem transmitter’s antenna and the body of the user or nearby persons. -
Page 13: Vehicle Safety
● In the unlikely event of a fault in the cellular device, contact Multi-Tech Tech Support. Handling Precautions To avoid damage due to the accumulation of static charge, use proper precautions when handling any cellular device. -
Page 14: Chapter 5 - Regulatory Information
Chapter 5 – Regulatory Information EMC, Safety, and R&TTE Directive Compliance Some models have received CE certification. If you need CD compliance, check with your sales representative. The CE mark is affixed to this product to confirm compliance with the following European Community Directives: ●... -
Page 15: Emc Requirements For Industry Canada
EMC Requirements for Industry Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement Canadien sur le matériel brouilleur. This device complies with Industry Canada RSS Appliance radio exempt from licensing. The operation is permitted for the following two conditions: the device may not cause harmful interference, and the user of the device must accept any interference suffered, even if the interference is likely to... -
Page 16: Waste Electrical And Electronic Equipment Statement
Hazardous Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all Multi-Tech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 17: Restriction Of The Use Of Hazardous Substances (Rohs)
Certificate of Compliance 2011/65/EU Multi-Tech Systems confirms that its embedded products comply with the chemical concentration limitations set forth in the directive 2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS) These Multi-Tech products do not contain the following banned chemicals ●... -
Page 18: Chapter 6 - Mt100Ucc-H5 Models
Chapter 6 – MT100UCC-H5 Models The QuickCarrier USB HSPA is an embedded USB cellular modem uses HSPA technology to deliver some of the fastest cellular data speeds. These quick-to-market devices combine a network approved cellular SocketModem and a USB carrier card in one compact design. With its 4-pin USB interface the QuickCarrier USB embedded cellular modem cables to an existing device’s internal USB port and can be secured using the four mounting holes located at the corners of the printed circuit board. - Page 19 Chapter 3 – QuickCarrier USB HSPA (MT100UCC-H5) Category Description Compliance EMC Compliance FCC Part 15 Class B EN 55022 Class B EN 55024 Radio Compliance FCC Part 22 FCC Part 24 RSS 132 RSS 133 EN 301 511 EN 301 489-1 EN 301 489-7 EN 301 489-24 Safety Compliance...
-
Page 20: Mechanical Drawing
Chapter 3 – QuickCarrier USB HSPA (MT100UCC-H5) Mechanical Drawing QuickCarrier Developer’s Guide... -
Page 21: Pin-Out Specifications
JP2-3 USB DP USB data JP2-4 Ground Power Draw Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into your power source when determining product load. AT command used to set Radio Idle, SIM Agilent Connection Radio radio function and power... - Page 22 Chapter 3 – QuickCarrier USB HSPA (MT100UCC-H5) Radio IP Connection to Agilent with Data Protocol Low Power Half Power Max Power Measured (GSM) Measured MS Xmit (GSM) Xmit Pwr Measured Peak Reset (GSM) Xmit Pwr Current Transmit Xmit Pwr Current Level Burst or (HSDPA) Ch.
-
Page 23: Application Notes
Chapter 3 – QuickCarrier USB HSPA (MT100UCC-H5) Application Notes LED Interface The LED signal indicates the working status of the QuickCarrier. Power LED Signal Description No power to the unit The unit is functioning Link Status LED Signal Description No power to the unit Continuously lit Powered and connected, but not transmitting or receiving. -
Page 24: Frequency Bands Supported
Chapter 3 – QuickCarrier USB HSPA (MT100UCC-H5) Category Description Maximum output power (UMTS Band II 1900, +23 dBm ± 1 dBm (class 3) V 850, &VI 800) Maximum output power (UMTS Band I 2100) +23 dBm ± 1 dBm (class 3) RF Connection and Antenna The RF connector on the QuickCarrier is a UFL standard type. -
Page 25: Chapter 7 - Account Activation
Chapter 5 – QuickCarrier USB HSPA (MT100UCC-H3) Chapter 7 – Account Activation Some Multi-Tech cellular modems have been pre-configured to operate on a specific cellular network, such as Sprint and Verizon Wireless. However, before you can begin to use the modem, you must set up a cellular data account with your cellular network provider. -
Page 26: Chapter 8 - Using Connection Manager
Chapter 5 – QuickCarrier USB HSPA (MT100UCC-H3) Chapter 8 – Using Connection Manager Use Connection Manager to: ● Install the latest device drivers. ● Activate and connect your device to your carrier’s network. Note: Connection Manager can install drivers and connect your device regardless of your cellular ●... -
Page 27: Setting Up A Serial Device In Windows Device Manager
Chapter 5 – QuickCarrier USB HSPA (MT100UCC-H3) CAUTION: Unless you are certain that the drivers for your USB device are already installed on the computer, make sure that you check Install the modem driver. Failure to do this will cause the application to incorrectly detect your device or not detect the device at all. Note: Because serial devices do not require drivers, it does not matter if you check or uncheck Install the modem driver for a serial device. - Page 28 Chapter 5 – QuickCarrier USB HSPA (MT100UCC-H3) In the Add Hardware Wizard: Click Next. Select Install the hardware that I manually select from a list, then click Next. Select Modems, then click Next. Check Don't detect my modem; I will select it from a list, then click Next. Select Standard Modem Types, then select Standard 33600 bps Modem on the right.
-
Page 29: Connecting A Device
Chapter 5 – QuickCarrier USB HSPA (MT100UCC-H3) Connecting a Device Before You Begin ● Make sure that your device is connected to the computer where Connection Manager is installed. ● Set up the device in Device Manager. Refer to Setting Up a Serial Device in Windows Device Manager. -
Page 30: Uninstalling Connection Manager
Chapter 5 – QuickCarrier USB HSPA (MT100UCC-H3) Note: Settings displayed for a USB device on the Settings tab are determined automatically ● and cannot be changed. To set the application to run during Windows startup, check Run application at ● Windows startup. -
Page 31: Connection Manager User Interface
Chapter 5 – QuickCarrier USB HSPA (MT100UCC-H3) Connection Manager User Interface Connection Manager consists of the following tabs: ● Main ● Settings ● Connection ● Details ● Terminal ● Charts Main tab The Main tab displays the following: ● Status of device connection: Searching, Connecting, Connected, Disconnecting, or Disconnected ●... -
Page 32: Settings Tab
Chapter 5 – QuickCarrier USB HSPA (MT100UCC-H3) ● Connection statistics: download and upload speeds, amount of traffic sent and received (only when connection to the carrier's network is established) ● The keep-alive check status and when the last ping response was received if Enable keep-alive check is checked on the Connection tab. -
Page 33: Device Is Not Detected ("No Device")
Chapter 5 – QuickCarrier USB HSPA (MT100UCC-H3) Device is not detected ("No Device") After following the steps to activate your device, the Main tab still indicates "No Device." Try the following steps: Click the Settings tab and make sure that the appropriate modem type is selected: USB or Serial. If you are connecting a serial device, make sure that all serial modem settings correspond to the serial modem and serial port configuration.
