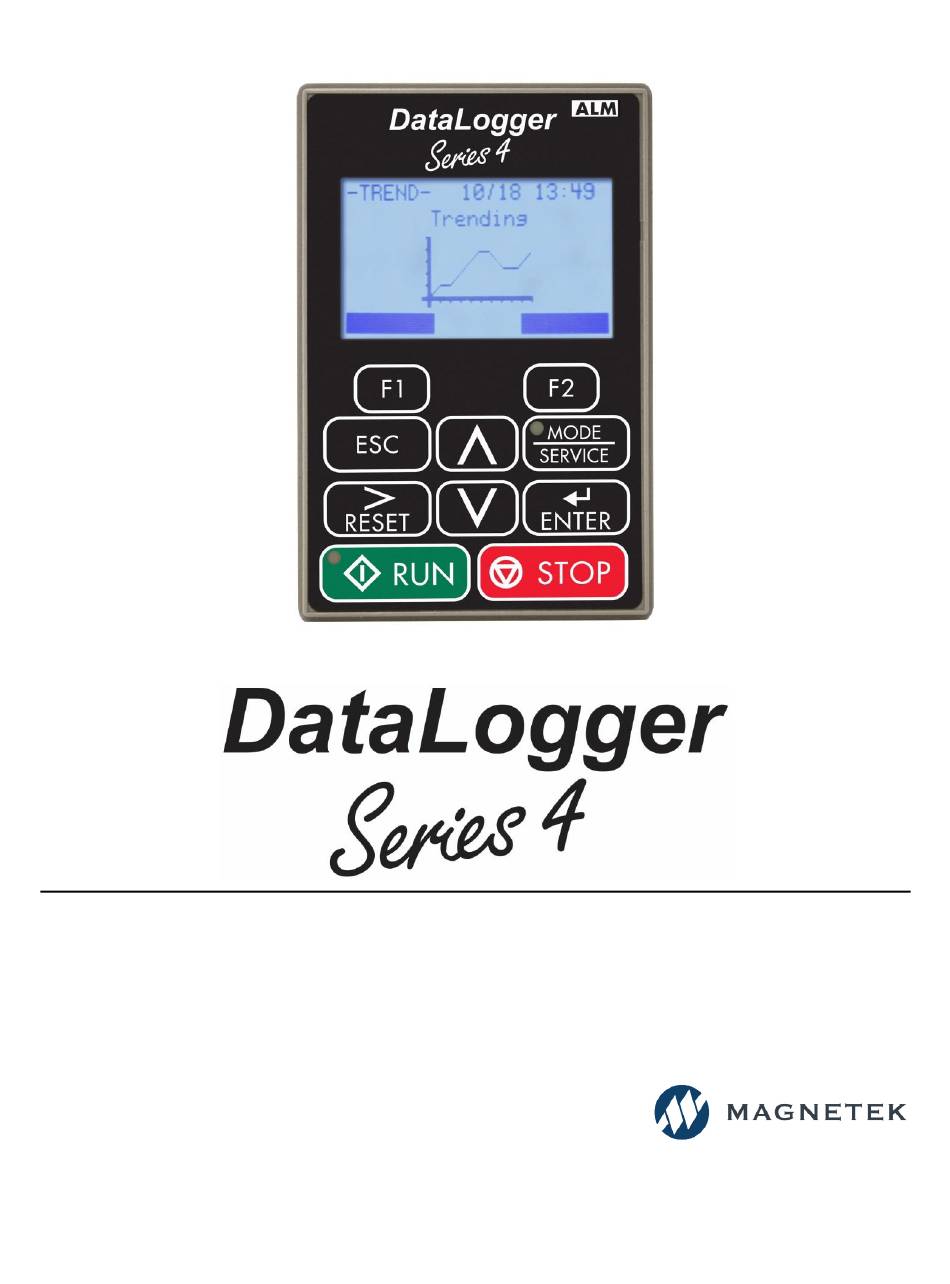

- Page 1 Technical Manual Part Number: 144-27097 R1 February 2021 © Copyright 2021 Magnetek...
-
Page 2: Columbus Mckinnon Corporation Locations
SERVICE INFORMATION For questions regarding service or technical information contact: 1.866.MAG.SERV (1.866.624.7378) International Service Outside the U.S. and Canada call +1.262.783.3500, press 3. Columbus McKinnon Corporation Locations Magnetek N49 W13650 Campbell Drive Menomonee Falls, WI 53051 Telephone: 800.288.8178 E-mail: field.service@magnetek.com... -
Page 3: Product Safety Information
It is the responsibility of the owners, users, and operators of the Magnetek Products to know, understand and follow these requirements. It is the responsibility of the employer to make its employees aware of the above listed requirements and to make certain that all operators are properly trained. - Page 4 DANGER DANGER indicated an imminently hazardous situation which, if not avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situations. WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or...
-
Page 5: Table Of Contents
Table of Contents Columbus McKinnon Corporation Locations ..................2 Product Safety Information ........................3 Product Warranty Information ........................3 DANGER, WARNING, CAUTION, and NOTE Statements ............... 3 1. Overview ..............................7 2. Recorded Data Types ..........................8 2.1 Log Data Overview ..........................8 2.2 Trend Data Overview .......................... - Page 6 10.4 Rename Parameter Data ........................ 23 11. DataLogger Settings Menu ........................ 24 11.1 Set Date/Time ..........................24 11.2 Version (Firmware) Information....................... 25 11.3 Diagnostics ............................25 11.4 Set Baud ............................25 11.5 Test Screen ............................. 25 12. Panel-Mount Bracket .......................... 26 13.
-
Page 7: Overview
1. Overview The DataLogger Series 4 (DLS4) is designed to simplify troubleshooting by recording and presenting detailed operational histories that are necessary for cost-saving preventive maintenance. The DataLogger Series 4 is a logging device that allows the operator to easily access Run, •G+ ®... -
Page 8: Recorded Data Types
2. Recorded Data Types The recorded data is organized into three types: log data, trend data, and parameter data. Log data consists of run information, faults, and alarms. Trend data consists of monitor information in graph form. Parameter data consists of drive settings. 2.1 Log Data Overview The DLS4 automatically collects data without input from the user. -
Page 9: Event Data
3. Event Data 3.1 When a Run Occurs When the DLS4 detects a run, it increments the run counter and begins to take average and peak values of the monitors being logged. It also logs how long the run remains active. When the run has ended, this information is written to the internal memory. -
Page 10: Parameter Data
5. Parameter Data The DataLogger Series 4 can store parameter data from a drive. When a DLS4 is connected to a powered-on drive, it will automatically upload the current parameters into Slot 0. This parameter set may be used to “undo” any changes made while troubleshooting an issue. Note that Slot 0 will be overwritten on each power up. -
Page 11: Impulse•G+ Mini
6.4 IMPULSE•G+ Mini For connection to an IMPULSE•G+ Mini drive, open the door on the drive’s front cover (located by the keypad/display). Use an RJ45 cable to connect the DLS4 to the drive. Figure 1: Drive Connection Locations 6.3 OmniPulse DDC Series 2 The OmniPulse DDC Series 2 DC motor control drive contains the DLS4 as its standard keypad. -
Page 12: Main Menu
7. Main Menu 7.1 IMPULSE•G+/VG+ Series 4 and DC Drives When the DataLogger is connected to an IMPULSE•G+/VG+ Series 4 drive, the menu is structured the same as the standard keypad. It retains the existing functionality plus four additional DataLogger function menus. -
Page 13: Impulse•G+/Vg+ Series 3
7.2 IMPULSE•G+/VG+ Series 3 When the DataLogger is connected to an IMPULSE•G+/VG+ Series 3 drive, the menu structure will remain the same as its normal keypad. Navigating to the DataLogger functions is executed by pressing the F2 key when the label above the F2 key shows “DLS4”. Returning to the normal keypad menu is accomplished by pressing the F2 key when “Keypad”... -
Page 14: Impulse•G+ Mini
7.3 IMPULSE•G+ Mini When the DataLogger is connected to an IMPULSE•G+ Mini drive, the menu structure will be simulated on the display, and it will function the same as using the integrated keypad. Navigating to the DataLogger functions is executed by pressing the F2 key when the label above the F2 key shows “DLS4”. Returning to the normal keypad menu is accomplished by pressing the F2 key when “Keypad”... - Page 15 Figure 5: DataLogger Menu Navigation - IMPULSE•G+ Mini DataLogger Series 4 Technical Manual February 2021 Page 15 of 28...
-
Page 16: Event History Menu
8. Event History Menu The Event History menu contains: ▪ Run, Fault, and Alarm History logs ▪ Counter of the stored Run, Fault, and Alarm events ▪ Filter settings for Faults and Alarms ▪ Option to clear the Run, Fault, and Alarm history logs ▪... -
Page 17: Run, Fault, And Alarm History
8.1 Run, Fault, and Alarm History The Run History menu contains information on each time the drive receives a run command or changes direction. Various measurements are logged for the duration of the run. The Fault History menu contains information for each stored fault event. Various measurements are logged at the exact moment the fault occurs. -
Page 18: Counters
8.2 Counters This screen displays the total number of logged Run, Fault, and Alarm events stored in the DLS4 memory. 8.3 Clear History The Run, Fault, and Alarm history logs can be cleared with this option. With “Clear History” selected, press the ENTER key and a confirmation dialog will appear on the screen. -
Page 19: Trending Menu
9. Trending Menu The Trending feature of the DataLogger Series 4 autonomously logs real-time drive information, such as current or torque changes over time. This trending data is viewable by connecting the DLS4 to a PC and opening the trending files in the IMPULSE•Link 5 software. A new trend data file is created every hour and is labeled by drive model and time-stamp. -
Page 20: Trend In Bb (Base Block)
9.3 Trend in BB (Base Block) The Trend in BB option allows the user to enable the DLS4 to log trending data when the drive is Base Blocked (not running). By default, this option is disabled. By enabling this option, the Trend’s circular buffer will fill up faster, causing old Trend data to be overwritten sooner. -
Page 21: Custom Monitor Options
9.2 Custom Monitor Options IMPULSE•G+/VG+ Series 4 ▪ ▪ U01-15 (Term A1 Level) U01-69 (LC Margin) ▪ ▪ U01-16 (Term A2 Level) U01-85 (NLB Rel Torque) ▪ ▪ U01-17 (Term A3 Level) U01-86 (Brake Test Torque) ▪ ▪ U01-20 (SFS Output) U04-08 (Heatsink Temp) ▪... -
Page 22: Parameter Backup Menu
10. Parameter Backup Menu The Parameter Backup menu allows the user to store (read) up to 11 parameter sets to the DataLogger Series 4, which can then be transferred (written) to any drive with the same software version, model, control method (Flux Vector, Open Loop Vector, or V/f), and motion. If any of these four conditions is not met, a message will indicate which condition does not match. -
Page 23: Write Parameter Data
10.2 Write Parameter Data The user may write any of the stored parameter sets to a drive with the same type, firmware version, model (KVA), control method (Flux Vector, Open Loop Vector, or V/f), and motion (Traverse, Standard Hoist, etc.). If any of these conditions are not met, a message will be displayed to indicate which condition. -
Page 24: Datalogger Settings Menu
11. DataLogger Settings Menu The DataLogger Settings menu contains the options for setting the date and time, viewing the firmware version of the DLS4, setting the baud rate, testing the keypad buttons, and viewing various diagnostics screens, which monitors the hardware components in the DLS4 in real-time. Figure 12: DataLogger Settings Menu 11.1 Set Date/Time The month, day, year, hour, and minute can be adjusted individually in this menu. -
Page 25: Version (Firmware) Information
11.2 Version (Firmware) Information The Version Info screen will display the firmware version. This screen will display for 3 seconds and then automatically return to the previous Setup menu screen. The user may want to occasionally check if a new firmware version is available on the columbusmcKinnon.com website under Software Downloads at https://www.columbusmckinnon.com/en-us/software-downloads/. -
Page 26: Panel-Mount Bracket
An accessory is available for mounting the DLS4 to a control panel door. This is useful for arc flash safety and accessibility convenience. The part number for the kit is DLS4-RMT-OPER-KIT. Contact Magnetek for more information. 13. Connecting to a PC The DLS4 has a micro-USB port on its bottom edge, which is used to connect to a PC via USB cable. -
Page 27: Firmware Updates
14.2 Firmware Updates The IMPULSE•Link 5 PC software is used to update the DLS4 firmware to incorporate any new features and enhancements. If the PC has internet, the software will automatically check for a firmware update and alert the user if a newer version is available. The newest version of the firmware may be manually downloaded from Software Downloads on columbusmckinnon.com at https://www.columbusmckinnon.com/en-us/software-downloads/. - Page 28 DataLogger Series 4 Technical Manual January 2021 DataLogger Series 4 Technical Manual February 2021 Page 28 of 28...
