Protocol Converter
Fiber-30voice+4E1+4FE+4RS232 Multiplexer
Shenzhen Optostar Optoelectronics Co., Ltd
2013. 02(Version 2)
Advertisement
Table of Contents
Related Manuals for Optostar Fiber-30voice-4E1-4FE-4RS232
Summary of Contents for Optostar Fiber-30voice-4E1-4FE-4RS232

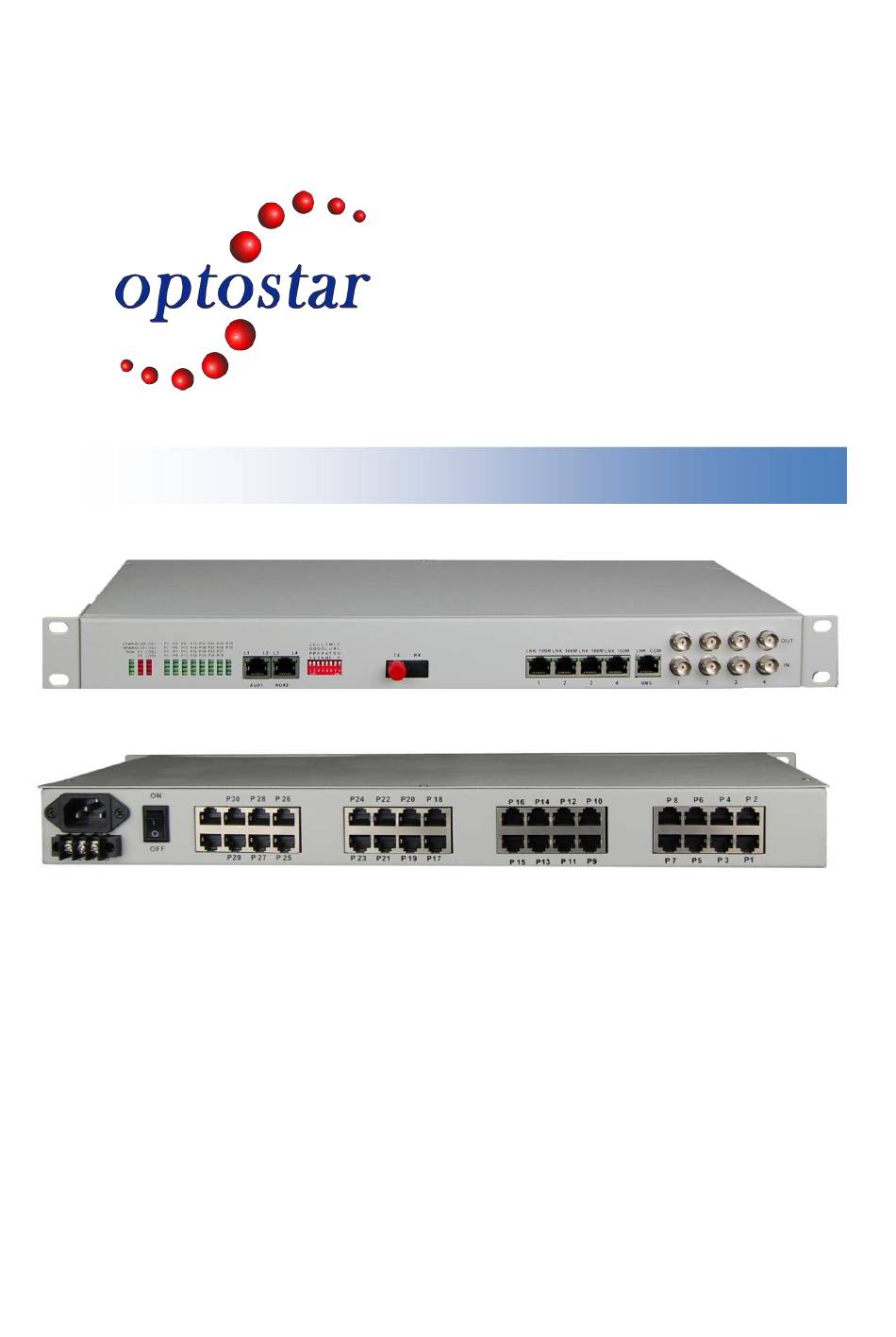

- Page 1 Protocol Converter Fiber-30voice+4E1+4FE+4RS232 Multiplexer Shenzhen Optostar Optoelectronics Co., Ltd 2013. 02(Version 2)
- Page 2 20μs, the peak output voltage 6KV open standards The transmission distance is up to 2-120Km without interruption AC 220V, DC-48V, DC24V can be optional Shenzhen Optostar Optoelectronics Co., Ltd. A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email:info@optostar.com.cn 0086-755-26400198/0086-0755-26400288 Fax:0086-755-26411001...
- Page 3 G.703; Interface Rate: n*64Kbps±50ppm; Interface Code: HDB3; E1 Impedance: 75Ω (unbalance), 120Ω (balance); Jitter tolerance: In accord with protocol G.742 and G.823 Allowed Attenuation: 0~6dBm Shenzhen Optostar Optoelectronics Co., Ltd. A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email:info@optostar.com.cn 0086-755-26400198/0086-0755-26400288 Fax:0086-755-26411001...
- Page 4 20 dB Working environment Working temperature: -10°C ~ 50°C Working Humidity: 5%~95 % (no condensation) Storage temperature: -40°C ~ 80°C Storage Humidity: 5%~95 % (no condensation) Shenzhen Optostar Optoelectronics Co., Ltd. A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email:info@optostar.com.cn 0086-755-26400198/0086-0755-26400288 Fax:0086-755-26411001...
- Page 5 30 * telephone，4E1，4*100 Mbps Ethernet，Console or SNMP，Support 6U Description rackmount，Two Fiber interface，4*RS232/422/485 Power Power supply: AC180V ~ 260V；DC –48V；DC +24V Power consumption: ≤10W Product Size: 485X138X45mm(WXDXH) 19 1U Dimension Weight 2.4KG Application: Shenzhen Optostar Optoelectronics Co., Ltd. A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email:info@optostar.com.cn 0086-755-26400198/0086-0755-26400288 Fax:0086-755-26411001...
- Page 6 OPTOSTAR policy ofcontinuous improvement specifications may changewithout notice. The publication of information in thisdata sheet does not imply freedom from patent or otherprotective rights of OPTOSTAR or others. Further detailsare available from any OPTOSTAR sales representative. Contact OPTOSTAR Shenzhen Optostar Optoelectronics Co., Ltd Address:A-14,Haide Building,the Intersection of Nanxin Road and Haide Second Road Nansha n District Shenzhen,China .
