Maury Microwave A028F Manual

7mm digital connector gage kit metrology grade

Advertisement

Quick Links

7mm Digital
Connector Gage Kit
Metrology Grade
Model A028F
028-61 (Rev A) 04/211

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A028F and is the answer not in the manual?

Questions and answers

Summary of Contents for Maury Microwave A028F

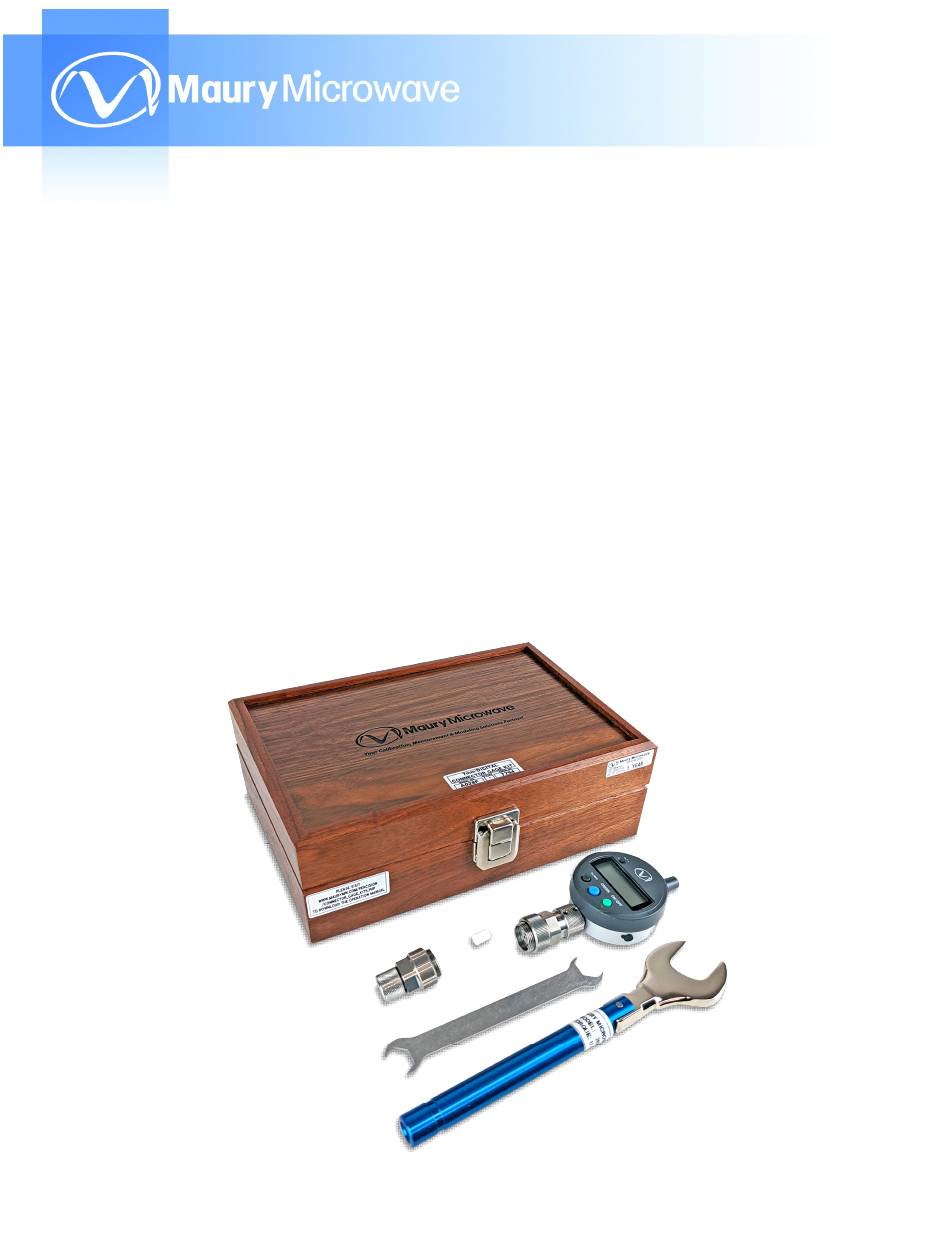

  • Page 1 7mm Digital Connector Gage Kit Metrology Grade Model A028F 028-61 (Rev A) 04/211...
  • Page 3 User Guide 7mm Digital Connector Gage Kit Model A028F 2900 Inland Empire Boulevard Ontario, California 91764-4804 USA Phone: (909) 987-4715 Facsimile: (909) 987-1112 maurymw.com 028-61 (Rev A) 04/211 Copyright © 2021 Maury Microwave Corporation. All rights reserved.
  • Page 5 Maury Microwave hardware products are warranted against defects in materials and workmanship for a period of one year from date of shipment. During the warranty period, Maury Microwave will, at its option, either repair or replace products which prove to be defective.
  • Page 7: Table Of Contents

    Contents General Information ...................... 1 Gage Kit Description ......................1 Operation ........................4 Cleaning ..........................7 Error Messages ........................7 Gaging Precision 7mm Connectors ..................8 Gaging Sliding Loads ......................10 Gaging 7mm Air Lines ....................... 13 Maintenance ........................15 Calibration .........................
  • Page 9: General Information

    General Information Gage Kit Description The Maury model A028F connector gage kit is designed to measure 7mm connectors with either female or male interfaces. The digital indicators used in the A028F connector gage kit provide a measurement resolution of .0001” when used in the inch mode or .001mm (0.000040 inches) when used in the metric mode. For simplicity, the rest of this manual will refer to measuring in inches.
  • Page 10 General Information Figure 1. The A028F Connector Gage Kit 028-61 (Rev A) 04/211...
  • Page 11 General Information Figure 2. Data Output 028-61 (Rev A) 04/211...
  • Page 12: Operation

    Operation (This page intentionally blank) 028-61 (Rev A) 04/211...
  • Page 13 Operation Specifications In order to determine the specifications for the A028F gages, Maury performed an extensive gage study with the gages at the Maury factory. The study involved the use of multiple gages and personnel making multiple measurements of a known standard. A statistical analysis was performed on the data collected and the resultant +/- 2-sigma value was determined.
  • Page 14 Operation 028-61 (Rev A) 04/211...
  • Page 15: Cleaning

    Operation Visual Inspection Inspect all connectors carefully before each use. If a connector shows deep scratches, dents, uneven wear, or particles clinging to the mating plane surfaces, clean it and inspect again. Damaged connectors should be set aside for repair. Also, try to determine the cause of the damage before making further connections. Cleaning Use dry compressed air at a very low velocity first;...
  • Page 16: Gaging Precision 7Mm Connectors

    A028D2. Apply light finger pressure avoiding rotation of the mating planes. If you use a torque wrench, it should be rated at 12 inch-pounds. Maury model 2698C2 is recommended and supplied with the A028F kit. Hold the corresponding part with the 3/4 open end wrench supplied with the kit.
  • Page 17 Operation Figure 4. Gaging Precision 7mm Connectors 028-61 (Rev A) 04/211...
  • Page 18: Gaging Sliding Loads

    For flush set operation, the sliding load center conductor is first set to the correct position using a connector gage. Then the center conductor is aligned axially and connected to the mating connector. NOTE: The nominal interface dimension is set using the A028F type connector gage. Gaging Sliding Loads CAUTION: This section may not have complete information for your particular sliding load.
  • Page 19 Operation Figure 5. Gaging Precision Sliding Loads 028-61 (Rev A) 04/211...
  • Page 20 Operation Figure 6. Interface Requirements for 7mm Connector 028-61 (Rev A) 04/211...
  • Page 21: Gaging 7Mm Air Lines

    NOTE: Use care when handling air line parts. Wear cotton gloves to prevent excessive thermal expansion. When using a 7mm airline, a master gage is first connected to one end of and the corresponding A028F indicator gage is connected to the opposite end.
  • Page 22 Operation Figure 7. Gaging Beadless Precision 7mm Airlines 028-61 (Rev A) 04/211...
  • Page 23: Maintenance

    To maintain verification that a connector gage kit is performing to traceable specifications, we recommend that all kits be periodically returned to Maury Microwave for calibration. The typical calibration cycle is one year, although actual need may vary depending on usage.
  • Page 24 (This page intentionally blank) 028-61 (Rev A) 04/211...
  • Page 25: Appendix

    Appendix Data Sheet Resources 2Y-051 – Connector Gages and Connector Gage Kits http://maurymw.com/pdf/datasheets/2Y-051.pdf 2Y-050A – Torque Wrenches http://maurymw.com/pdf/datasheets/2Y-050A.pdf 028-61 (Rev A) 04/211...
  • Page 26 (This page intentionally blank) 028-61 (Rev A) 04/211...
  • Page 27: Contacts

    Contacts Corporate Maury Microwave Corporation 2900 Inland Empire Boulevard Ontario, California 91764-4804 United States of America 909-987-4715 909-987-5855 eMail maury@maurymw.com Sales 909-204-3224 909-987-1112 eMail maury@maurymw.com Customer Support 909-204-3283 909-987-1112 eMail support@maurymw.com Web Site http://maurymw.com Web Resources Visit our web site for additional product information and literature.
