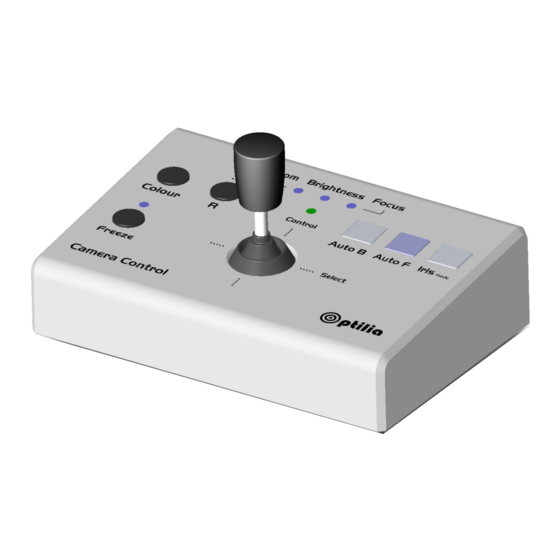

- Page 1 Instructions Manual for Control Unit for Optilia High Definition Cameras Product No. OP-009 020 This manual describes how to use Control Unit together with W10x-HD, W20x-HD, HD10 and HD20 cameras...
- Page 2 Joystick. In addition, the operator can Freeze the live image or Save and Recall any configuration by pressing one button. Camera Control Unit communicates with Optilia HD cameras via serial RS232 communication protocol. Connections Power-On Sequence a) Attach circular connector of HD camera to the mating connector on Control Unit.
- Page 3 Controls and Functions Joystick Left/Right: Selects Zoom, Brightness and Focus functions. Joystick Up/Down: Increase/Decrease value of the selected function. Auto B: Switches between auto brightness and manual brightness modes. When Auto B is activated, brightness of the picture is controlled automatically. Joystick up/down will change “target”...
- Page 4 Optilia Instruments AB´s operating and maintenance instructions Optilia Instruments AB shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as original Optilia products or Optilia approved products by Optilia Instruments AB.
