Instructions Manual

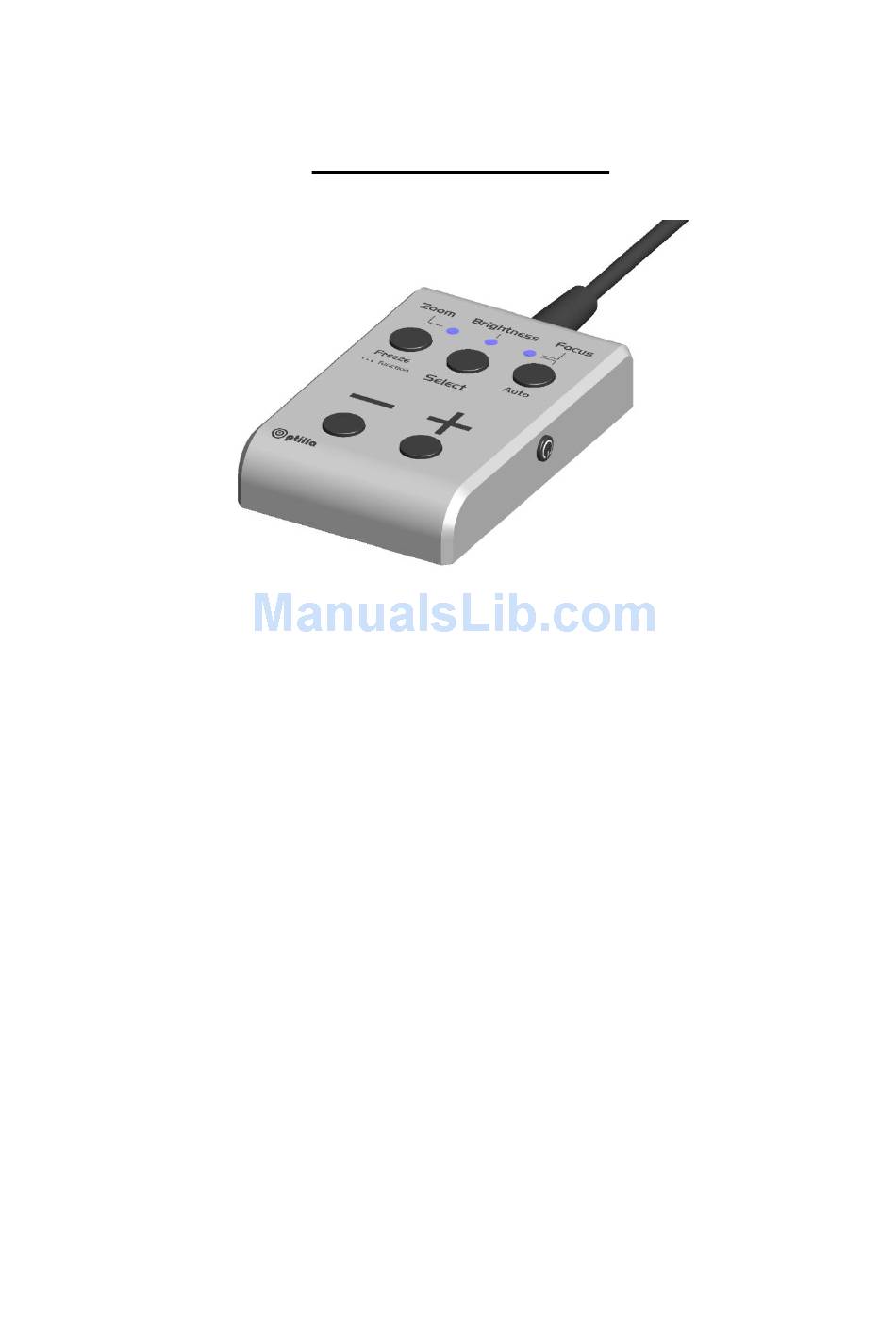

M20x Camera Control with Cross-line, Zoom Display and 2 Save/Recall

Overview

This optional software enables M20x EasyView and Freesight cameras
to display zoom factor, Cross line and to save/recall 2 presets, A and B.
Three display modes are supported:
1. Zoom Display:
The zoom factor is displayed on up-right corner and current preset
is displayed on down right corner. 2 presets can be saved and
recalled.
2. Zoom Display and Cross Line.
A cross line is displayed on the center of the screen. The zoom
factor is displayed on up-right corner and current preset is
displayed on down right corner. 2 presets can be saved and
recalled.
3. Standard.
Display is off. Control box will function as standard. Save/recall
function is not available in this mode.
Product No. OP-009 032

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M20x and is the answer not in the manual?

Questions and answers

Related Manuals for Optilia M20x

Summary of Contents for Optilia M20x

  • Page 1 Instructions Manual M20x Camera Control with Cross-line, Zoom Display and 2 Save/Recall Product No. OP-009 032 Overview This optional software enables M20x EasyView and Freesight cameras to display zoom factor, Cross line and to save/recall 2 presets, A and B.
  • Page 2 Connections a) Connect the camera to Y/Pb/Pr component video inputs of a HD Monitor or HD Frame Grabber. b) Attach the Foot Switch to external foot switch input of the control unit (optional) c) Connect the Power supply to 12/5 V DC-input of the camera. After connecting the power supply the LEDs will start to flash on the control unit and start the camera.
  • Page 3 Saving preset A: Press and hold the Freeze and – button together for 5 seconds until the LEDs are flashed and release. A is displayed on down-right corner on-screen. Saving preset B: Press and hold the Freeze and + button together for 5 seconds until the LEDs are flashed and release.
  • Page 4 Instruments AB,s products. Optilia Instruments AB is not responsible for any use of this information for other purposes. Optilia Instruments AB shall not be liable to the purchaser of this product or third parties for damages, losses, costs or expenses incurred by the...
