- Page 1 GPON Home Gateway Innbox G Quick Start Guide Iskratel, September...
-
Page 2: Table Of Contents
Innbox G Quick Start Guide Table of Contents Safety Precautions ......................Description of the Innbox G .................... Top View ............................. Back View ........................... Bottom View ..........................Connecting to the Internet and Powering on ............... -
Page 3: Safety Precautions
Innbox G Quick Start Guide Safety Precautions Congratulations for purchasing the Innbox G home gateway! To ensure the optimum performance of the device without damaging the equipment or endangering yourself and other users, please make sure to follow all safety precautions. -
Page 4: Description Of The Innbox G

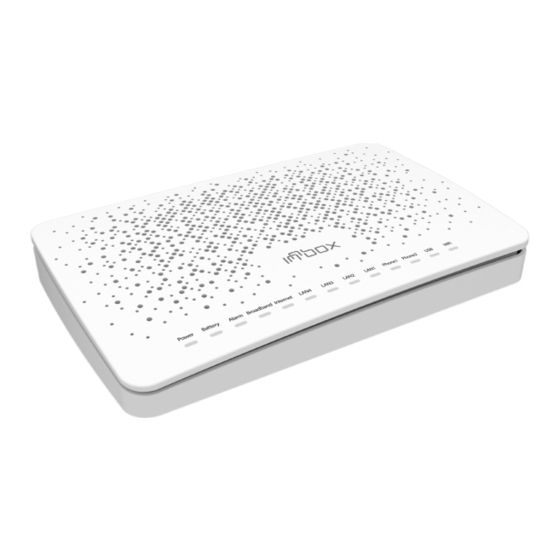

Innbox G Quick Start Guide Description of the Innbox G Top View The top of the Innbox G home gateway is equipped with several light indicators that provide you with the status of the device. Indicator Colour Significance Power Green On –... -
Page 5: Back View
Blinking – Wireless connectivity is in use. Off – Wireless connectivity on the home gateway is disabled. Back View The back of the Innbox G home gateway is equipped with connectors and switches that allow you to connect your device. -
Page 6: Bottom View
Innbox G Quick Start Guide Bottom View The bottom of the Innbox G home gateway is equipped with an optical GPON connector that allows you to connect your device. Item Purpose Optical interface to connect the device to the internet ©... -
Page 7: Connecting To The Internet And Powering On
Innbox G Quick Start Guide Connecting to the Internet and Powering on What you need: The Innbox G home gateway (included in the package); The power-supply adapter (included in the package). Steps to follow: Remove the protective cap from the GPON optical port at the bottom of the device. - Page 8 When you switch the home gateway on, pay attention to the light indicators. It takes about seconds for the Innbox G home gateway to boot up; the INTERNET and BROADBAND light indicators should be on uninterruptedly.
-
Page 9: Connecting Your Devices
. Plug the other end of the Ethernet cable to the Ethernet port on your computer. When the Innbox G home gateway is switched on and your computer connected, pay attention to the corresponding LAN light indicator. - Page 10 . Plug the other end of the Ethernet cable to the Ethernet port on your set-top box. When the Innbox G home gateway is switched on and your set-top box connected, pay attention to the BROADBAND light indicator.
-
Page 11: Setting Up Internet Access On The Computer
Quick Start Guide Setting up Internet Access on the Computer Once you have powered on the Innbox G home gateway and connected the computer to it, you are ready to access the internet. The internet connection should be established automatically. -
Page 12: Web Management
Innbox G Quick Start Guide Web Management The web management enables you to view or edit the settings of the Innbox G home gateway, or to configure the plethora of supported functions. Accessing the Web Management What you need: Make sure that the Innbox G home gateway is powered on and connected as described above;... -
Page 13: Getting Around The Web Management
Innbox G Quick Start Guide Getting around the Web Management The user interface of web management is simple and intuitive. Left frame (navigation tree) lists the home gateway functions that you can change. The function names act as hyperlinks: when you click a link, the corresponding configuration page is displayed in the right frame. -
Page 14: Fcc Statement
Innbox G Quick Start Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to FCC Title CFR Part . These limits are designed to provide reasonable protection against harmful interference in a residential installation.
