INSTALLATION INSTRUCTION
Important Instructions. Please read first
•
Please follow instructions carefully. Failure to do so will void the
local law and applicable standards.
1.
Only use a GLP power supply unit.
2.
Ensure correct input v oltage is supplied to the luminaire.
3.
Ensure the power is disconnected before making any connections.
4.
Do not make modification nor alter the luminaire without written approv al from GLP.
5. Ensure to keep luminaire in a clean area free of debris.
INSTALLATION
•
Step 1:
Find the location where the luminaire has to be installed. Install a suitable wiring from the power supply
(12VAC) to the luminaire.
•
Step 2:

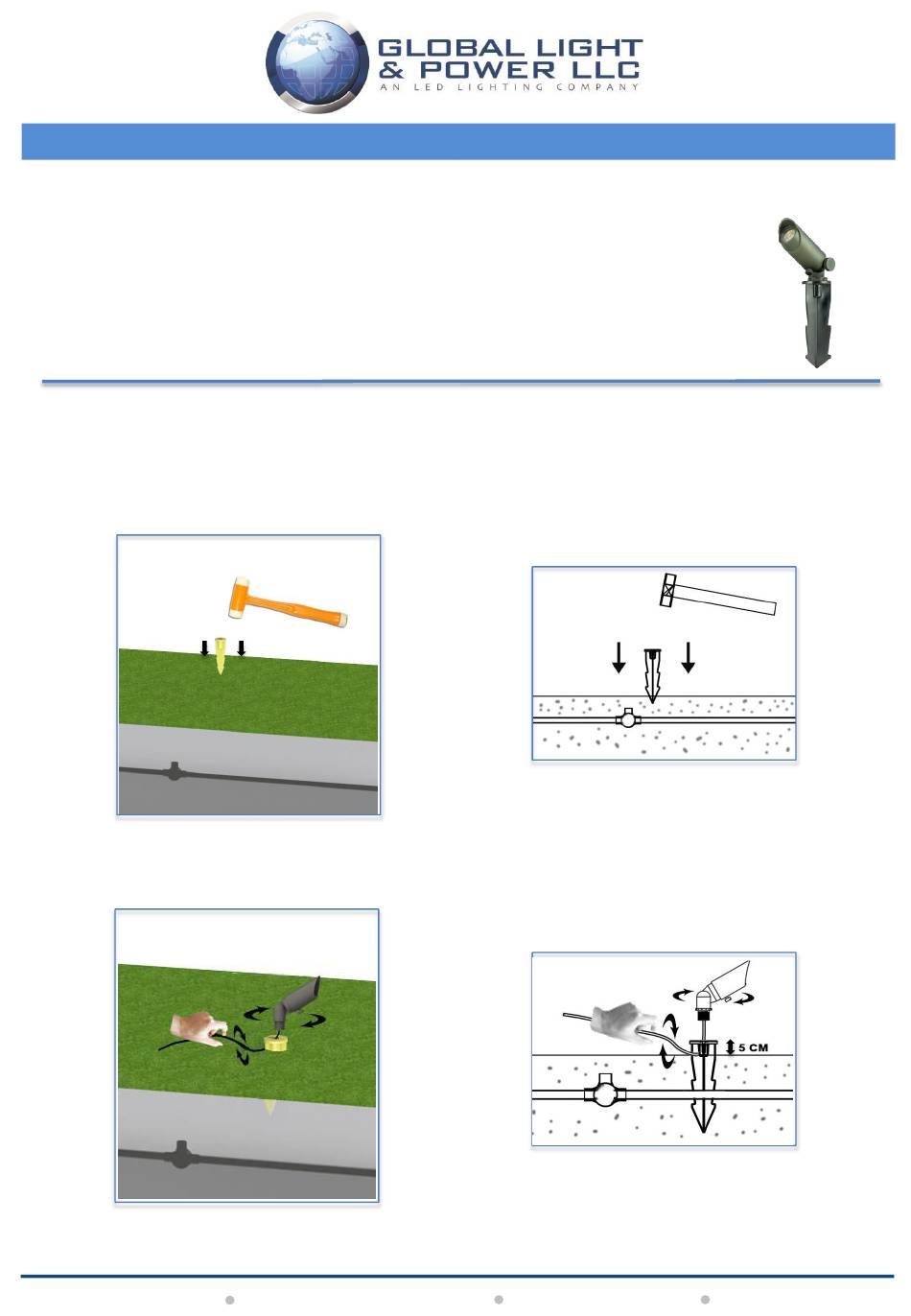

Mount the spike on the surface using a rubber mallet. Depending on type of surface raise the stake by
5cm abov e the surface as illustrated.
•
Step 3:
Fix the luminaire on the stake by rotating. Make sure the luminaire input cable is rotating with the
luminaire to av oid potential damage to the luminaire input cable as illustrated.
