INSTALLATION INSTRUCTION
Important Instructions. Please read first
•
Please follow instructions carefully. Failure to do so will void the
local law and applicable standards.
1.
Only use a GLP power supply unit.
2.
Ensure correct input v oltage is supplied to the luminaire.
3.
Ensure the power is disconnected before making any connections.
4.
Do not make modification nor alter the luminaire without written approv al from GLP.
5. Ensure to keep luminaire in a clean area free of debris.

INSTALLATION

•

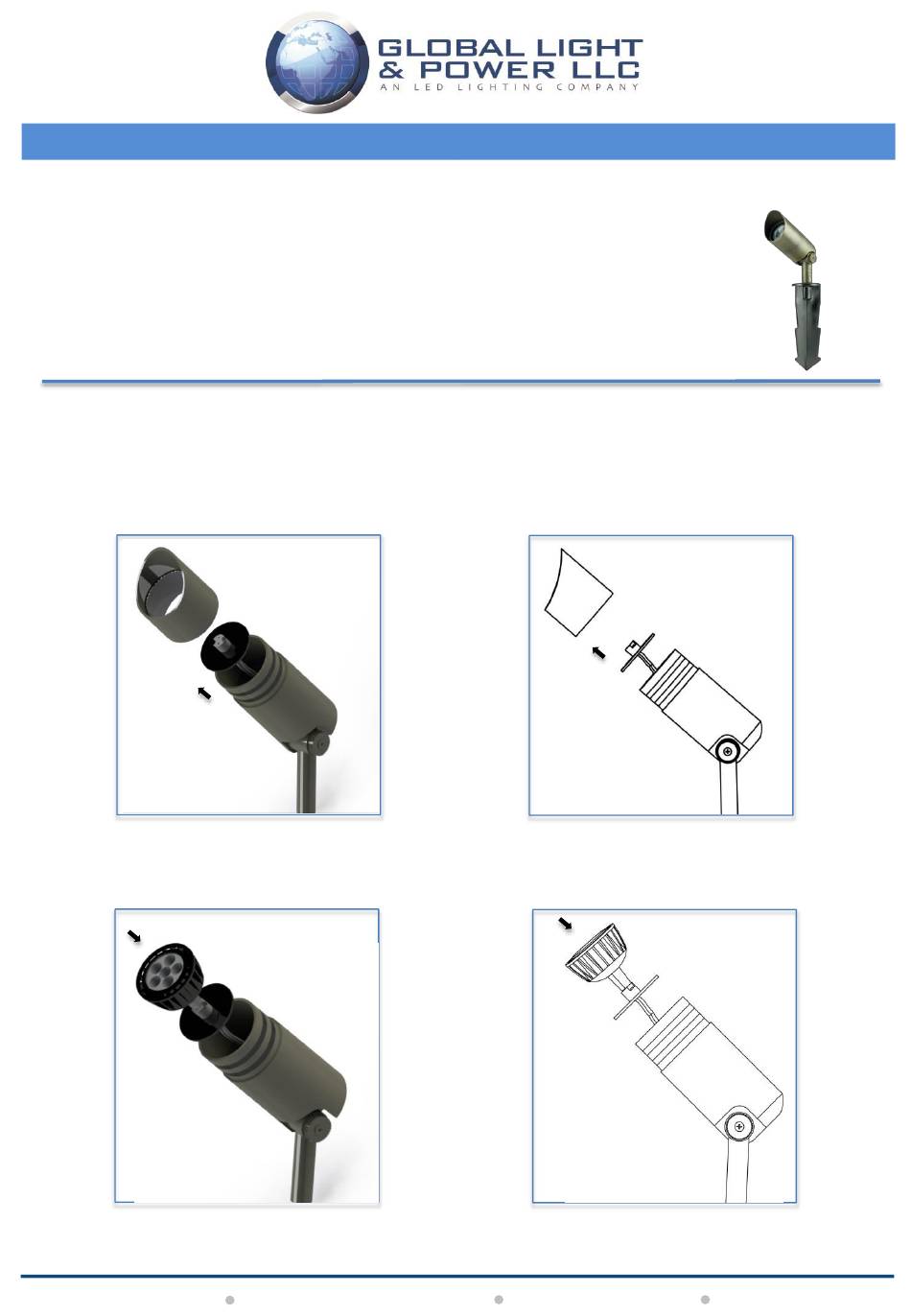

Step 1:
Find a location where the luminaire has to be installed. Install a suitable wiring from the power supply
(12VAC) to the luminaire.
•
Step 2:
Remov e the luminaire front cov er and pull out the lamp holder.
•
Step 3:
Fit the MR16 lamp properly on the holder.
www.globallightllc.com
.
info@globallightllc.com
warranty.
Please ensure installation complies with
Tel: +971 4 340 44 58
SP880484
Fax: +971 4 341 10 90
