Summary of Contents for Jon-Don DYNAMIC DIAMOND DDV36

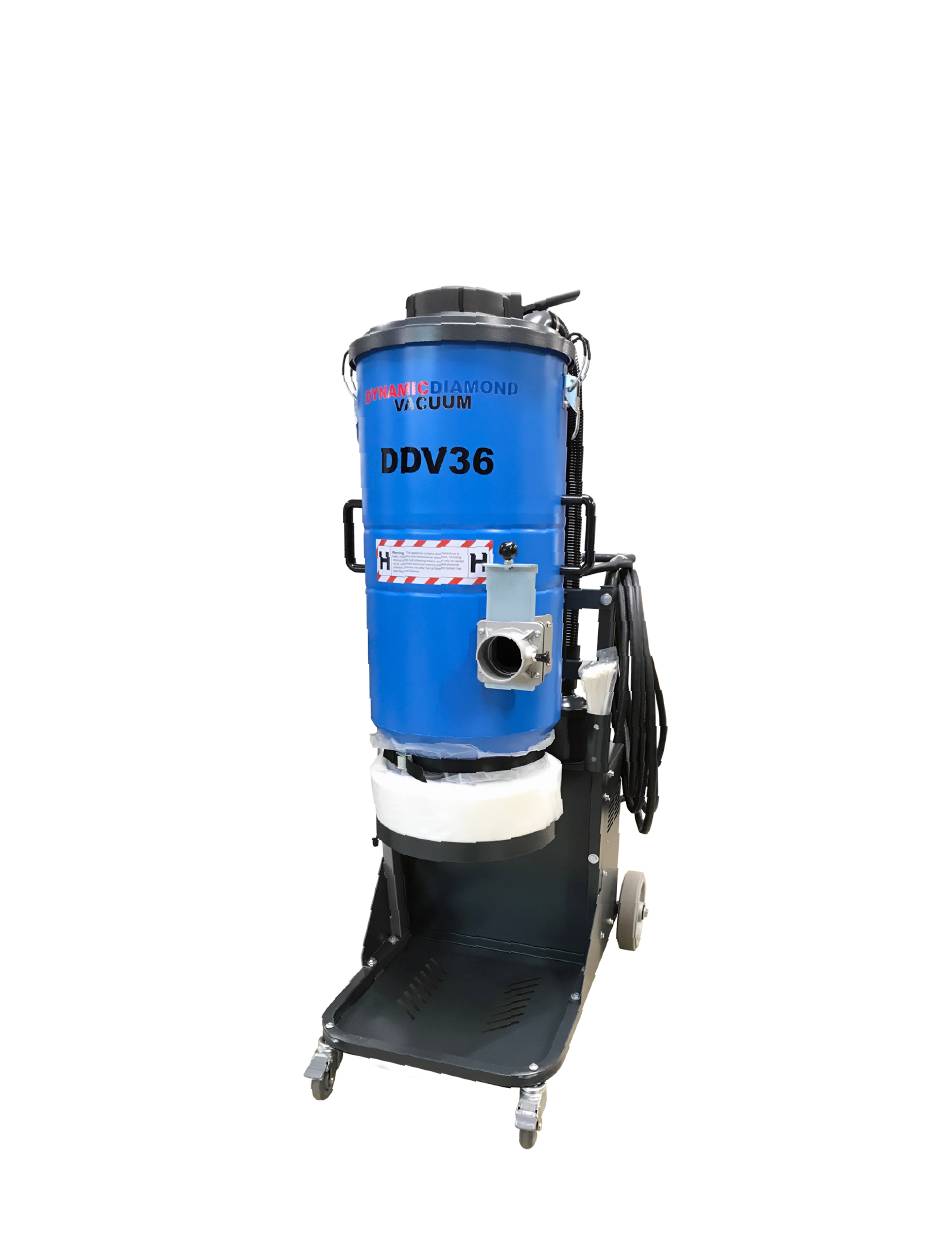

- Page 1 DYNAMIC DIAMOND VACUUM DDV36 Vacuum Manual...
- Page 2 INTRODUCTION Thank you for choosing Dynamic Diamond Vacuum (DDV), a high-quality product based on the newest state-of-the-art technology. We hope that this device will be to your satisfaction and meet your expectations. We are continuously striving to improve our products in our product segment and will continue to supply the market with new equipment.
-
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: WARNING – To reduce the risk of fire, electric shock or injury: Cables damaged through crushing or splitting can be dangerous if used and should be replaced ... -
Page 4: Grounding Instruction
THERMAL PROTECTION The dust extractor is equipped with a safety thermal protector to prevent motor from overheating. Should thermal protector activate, turn off machine, unplug power cord and check for full dust bag, vacuum hose clog or filter blockage. It may take up to 45 minutes for the thermal protector to reset. - Page 5 3. FUNCTION The machine is designed for vacuuming and separating dry, non-combustible dust with an explosion limit value of 0.1mg/m The dust extractor is started by the switch. All the switches can operate independently. Type Models with Jet pulse filter cleaning Red switch 2 step 0: Motor off, 1: Motor on Notice...
-
Page 6: Filter Cleaning
5. FILTER CLEANING The filter must be cleaned from time to time. This must be done before changing the bag collection system and should also be done when work is completed or when there is poor suction. Procedure: 1. Push down the damper , cover the inlet. 2. -
Page 7: Warranty
WARNING Remember to switch off the machine and pull the plug out of the outlet before servicing. Pre-filter Loosen the 3 clamps and remove the top. Take the bag from the new filter. Lift out the filter and place it gently in a plastic bag. This bag must be properly disposed. Insert a new filter. -
Page 8: Problem Solving
10. PROBLEM SOLVING The dust extractors are designed and manufactured for severe environments and tasks, but the user must note that the machine must be protected from knocks and blows. Filter, seals, attachments, and connections are carefully adapted and selected with regard to the operator’s work environment. Therefore, the operator and service personnel must treat the machine with care in order for it to work correctly for many years. - Page 9 Technical data sheet Data Unit TS3000/120V TS3000/230V Voltage 120V 230V Power max Current(UL) 14.4 Airflow m³/h (max) Vacuum(Max) mbar Water lift(inch) inch Main hose Metric 10mxD63 10mx D63 (mm) USCS 32’X2.5’’ 32’X2.5’’ (inch) Inlet Metric (mm) USCS 2.8’’ 2.8’’ (inch) Pre filter 99.5 99.5...
- Page 10 DDV36 - 120V Packing list Description Quantity Unit DDV36 dust extractor S8046 2’’ S wands,2PCS/SET C2031 2.75’’/2’’ adaptor S8008 2’’ anti static EVA hose Meter S8006 2’’ hose cuff S8045 2’’ floor brush 2.75’’/2.5’’ adaptor C2044 S8037 2.5’’ PU hose with PC spiral Meter...
- Page 11 DDV36 - 120V Exploded views Description Quantity Dimension Note DDV36 engine kit C2143 DDV36 wagon complete packing C2093 DDV36 slider bar upper bracket C2138 DDV 36 right stand column C2146 DDV lifting hook C2097 DDV36 slider bar C2087 DDV barrel holder C2045 D25 round tube pulley C2101...
- Page 12 DDV36 - 120V Dustbin kit...
- Page 13 Description Quantity Dimension C3026 Plastic cover C2117 DDV36 top cap C2134 Lever (for jet pulse filter cleaning) S0013 C2057 Lever holder S0028 Bolt M6*60 S0088 Cushion S0010 Bolt M6*12 S0011 S0059 Holder kit C2120 DDV36 barrel D70 inlet kit C2092 Holder S0023 Bolt...
- Page 14 DDV36 - 120V Engine kit Description Quantity Dimension Note S0091 Nuts C2115 H13 filter cover S8031 H13 filter C2116 H13 filter hood C3007 Motor damping ring S1034 Single phase motor 240V, 1000W S1035 Single phase motor 120V, 800W S0087 Hex socket head shoulder M6-96.5 screw-2 S9028...
- Page 15 DDV36 - 120V D70 inlet kit Description Quantity Dimension Note C3031 70mm inlet gasket C3032 70mm inlet S0075 Cross screw with flat head M5*10 C3019 Slideway C2043 Inlet close door S0076 Copper collision C2022 Index plunger C3021 70 outer inlet S0013 Locknut S0013...
