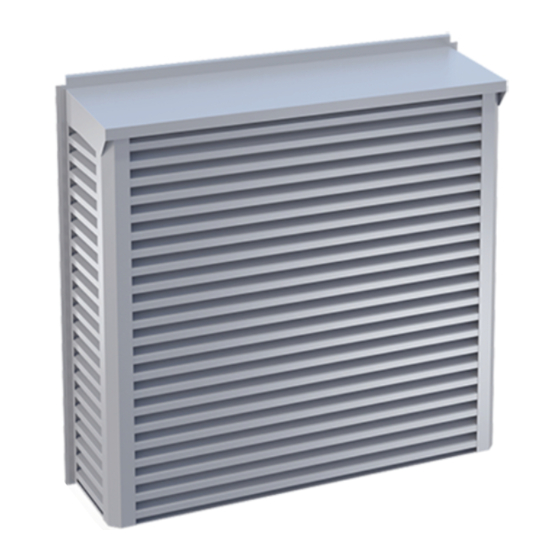

TUISKU
surface-mounted
snow covers
Installation manual
T
The mounting instructions are the same for the following product series:
TUISKU-VS, TUISKU-PS, TUISKU-V and TUISKU-P
TUISKU-AF
TUISKU-O
The connection instructions of TUISKU-AF is in separate connection manual
climecon.fi
Advertisement
Related Manuals for Climecon TUISKU-VS
Summary of Contents for Climecon TUISKU-VS

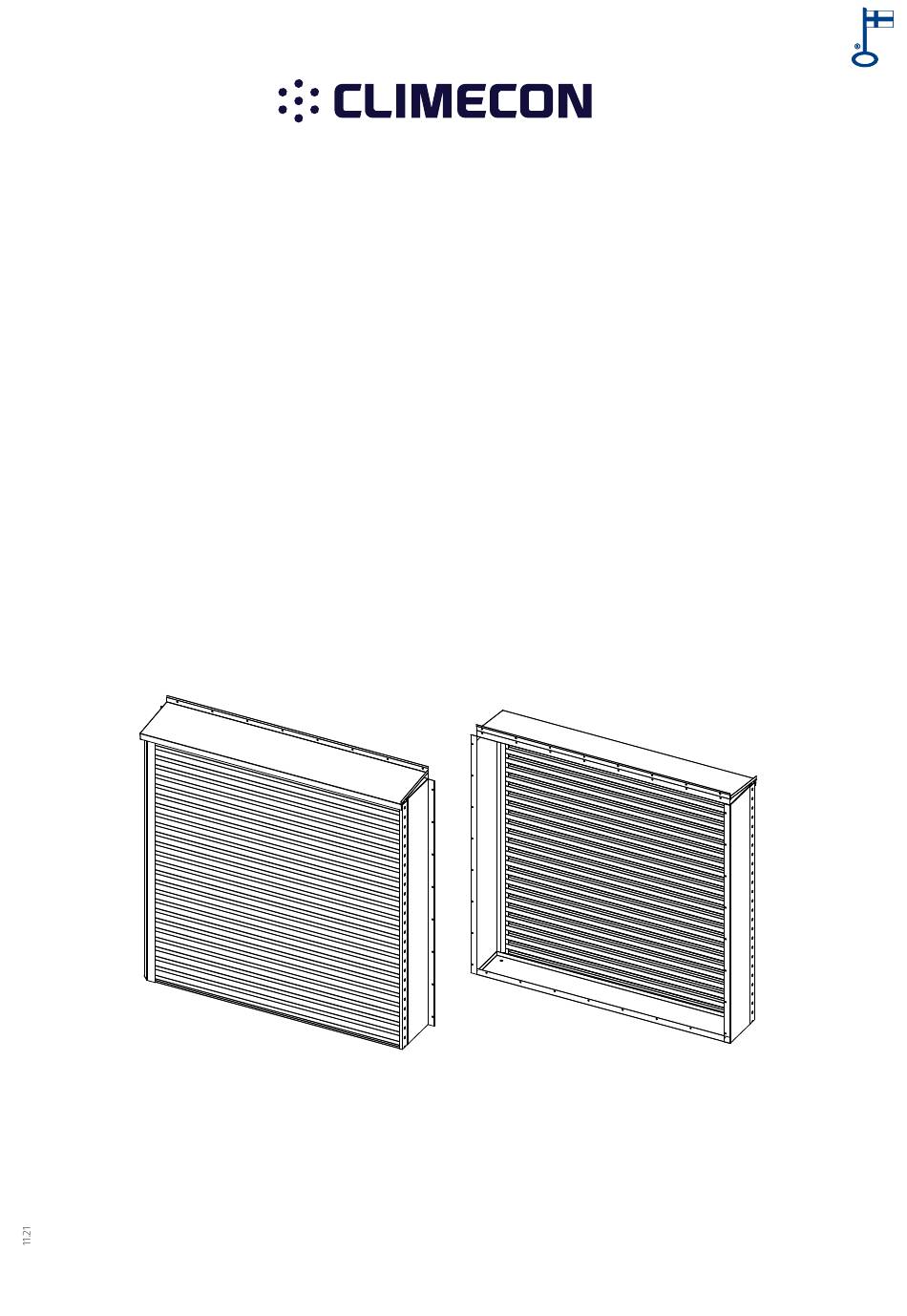

- Page 1 TUISKU surface-mounted snow covers Installation manual The mounting instructions are the same for the following product series: TUISKU-VS, TUISKU-PS, TUISKU-V and TUISKU-P TUISKU-AF TUISKU-O The connection instructions of TUISKU-AF is in separate connection manual climecon.fi...
- Page 2 Water drainage hole + heat tracing / snow melting Min. 100 mm It is advisable to build a chamber and drainage similar to the figure behind the snow covers to prevent light snow and water caused by exceptionally strong winds from getting into the ducts. © Climecon...
- Page 3 • Concrete: Concrete screw Fisher FBS 6 x 40/5 mm US or equivalent • Sandwich: Sandwich panel screw with washer, drill point (4-14 MM) SPA 5.5 x L = panel thickness • Steel: EJOT JT2-6-6.3 x 25 mm zinc-plated drill point © Climecon...
- Page 4 • Concrete: Concrete screw Fisher FBS 6 x 40/5 mm US or equivalent • Sandwich: Sandwich panel screw with washer, drill point (4-14 MM) SPA 5.5 x L = panel thickness • Steel: EJOT JT2-6-6.3 x 25 mm zinc-plated drill point © Climecon...
- Page 5 • Concrete: Concrete screw Fisher FBS 6 x 40/5 mm US or equivalent • Sandwich: Sandwich panel screw with washer, drill point (4-14 MM) SPA 5.5 x L = panel thickness • Steel: EJOT JT2-6-6.3 x 25 mm zinc-plated drill point © Climecon...
- Page 6 • Wood: TX-20 4.5X40 zinc-plated countersunk head full thread chipboard screw • Concrete: Concrete screw Fisher FBS 6x40/5 mm US or equivalent • Sandwich: Sandwich panel screw with washer, drill point 4-14 mm SPA 5.5 x L (L=panel thickness) • Steel: EJOT JT2-6-6.3x25mm zinc-plated drill point © Climecon...
- Page 7 • Sandwich: EJOT JT2-6-6.3 x 25 mm zinc-plated drill point + U-profile installation rails to the end of the panel • Steel: EJOT JT2-6-6.3 x 25 mm zinc-plated drill point The structure must always be approved by a structural engineer. © Climecon...
- Page 8 • The upper TUISKU elements are lifted on top of the lower TUISKU elements and then mounted from the sides and the top into the load-bearing structure. TUISKU is mounted on the TUISKU-AK installing frame with zinc-plated drill point screw EJOT JT2-6-6.3x25mm. The TUISKU elements are mounted together with zinc-plated drill point screws EJOT JT2-6-6.3x25mm. © Climecon...
- Page 9 • The upper TUISKU elements are lifted on top of the lower TUISKU elements and then mounted from the sides and the top into the load-bearing structure. TUISKU is mounted on the TUISKU-AK installing frame with zinc-plated drill point screw EJOT JT2-6-6.3x25mm. The TUISKU elements are mounted together with zinc-plated drill point screws EJOT JT2-6-6.3x25mm. © Climecon...
- Page 10 If you have any questions concerning TUISKU installation, you can contact the Climecon customer service Tel. +358 (0)20 1986 600 Email info@climecon.fi Climecon Oy Lämmittäjänkatu 4 A 00880 HELSINKI FINLAND climecon.fi © Climecon...
