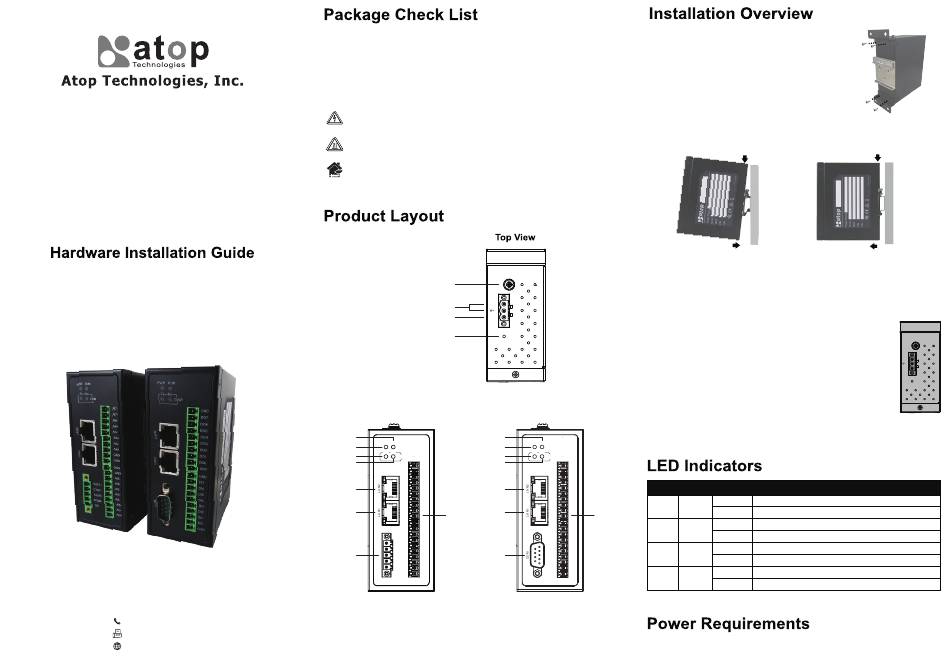

Atop IO5202 Series Hardware Installation Manual

Industrial IoT Remote I/O
IO5202 Series
Version 1.1
Updated in October, 2021
P/N : 89900584G
+ 886-3-5508137
+ 886-3-5508131
www.atoponline.com

Inside the package you will find the following items:

■ Industrial IoT remote x 1
■ 3-Pin lockable terminal block for power x 1
■ 10-Pin I/O terminal blocks x 2
■ 5-Pin lockable terminal block for serial port x 1 (-TB models only)
■ Installation guide with warranty card x 1
Never install or work on electrity or cabling during periods of lightning activity.
Never connect or disconnect power when hazardous gases are present.
Warning: Hot surface, do not touch. RESTRICTED ACCESS AREA: The equipment
should only be installed in a Restricted Access Area.
This equipment should be installed indoors and not connected directly with
equipment installed outdoors.
I n d o o r I n d o o r
1. Grounding Screw 1
2. Terminal for Power
2 V+
3. Frame Ground
3
F.G.
4. Reset Button
4
IO5202-TB Series Front View IO5202-DB Series Front View
1 1
PWR RUN
2 2
TX RX
3 3
COM
4 4
5 5
6 6
7
8 9
1. System Power LED 4. COM LED- RX
2. System Run LED 5. 10/100 Ethernet Port 2
3. COM LED-TX 6. 10/100 Ethernet Port 1
1. If you have purchased the wall mount kit, proceed to place
the screws on the back of the device as shown in (Fig. 1).
Wall mount screw specifications: M3 0.5p
Screw depth: 4 mm (Max)
Screws x 4 pcs
2. Once the plate is firmly in place, proceed to mount the
whole device as shown in (Fig.2). Refer to (Fig. 3) if
you want to remove the device from the DIN-Rail.
(Fig. 2)
3. Connet the device to the LAN (switch or PC, depending on the case), taking
care when using the RJ-45 connector. Afterwards, you can proceed to the
device's settings.
4. Although internal grounding has been done inside, hazardous
ESD can come into contact and damage your equipment. In
order to ensure overall maximum performance and to protect
your device, it is still strongly advised to ground the device
properly.
On the power terminal block, there is a terminal for Frame
Ground. You can connect it either to grounding or to the ground-
ing screw next to the terminal block (the one chosen should be
connected at all times) (Fig. 4).
■ The openings on the device's sides are for heat dissipation.
Never obstruct, cover, or try to insert anything through them.
PWR RUN
TX RX
COM
LED Color
PWR Green
7
RUN Green
TX COM Green
RX COM Green
7. I/O Port
8. TB-COM Port
Power input: 12 to 48 VDC; 0.8A max
9. DB-COM Port
(Fig. 1)
1
1
(Fig. 3)
2 2
State Description
On PWR is connected
Off PWR is disconnected
On System is booted up and running
Off System is still booting up or powered off
Blinking COM 1 is transmitting
Off COM 1 is not transmitting
Blinking COM 1 is receiving
Off COM 1 is not receiving
V+
F.G.
(Fig. 4)
