Summary of Contents for Elektor Dual DC LISN

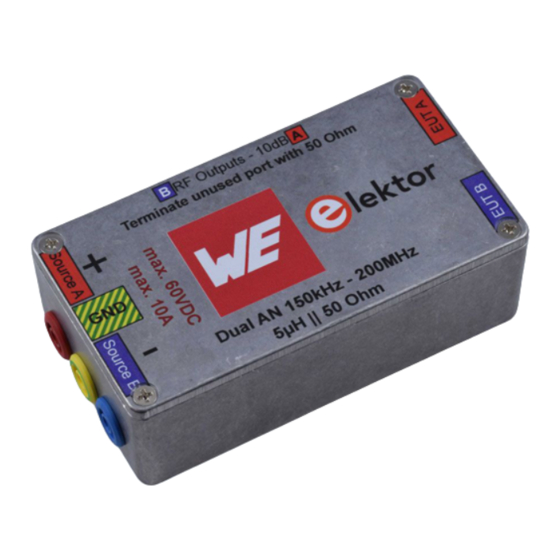

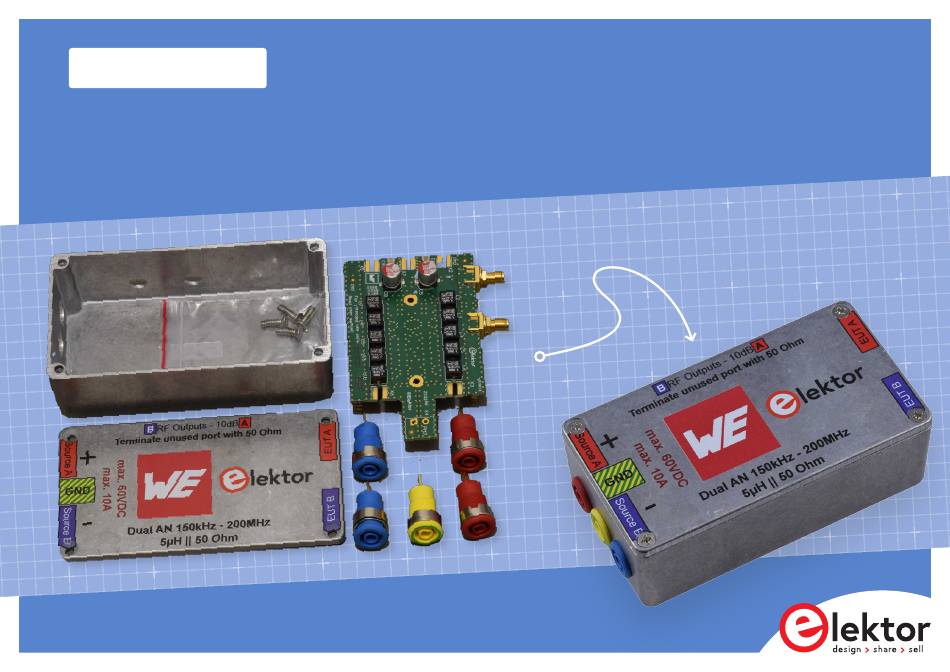

- Page 1 User manual Dual DC LISN 150 kHz – 200 MHz Assembly of the KIT SKU 19869...
- Page 2 Carefully slide the PCB into the enclosure. Pay close attention to the contact fingers soldered to the bottom of the PCB so they don’t get hooked by the edge of the enclosure and get damaged. User manual Dual DC LISN 150 kHz – 200 MHz | Assembly of the KIT...
- Page 3 PCB. X2 and X3 are the red sockets, X5 and X6 are the blue sockets and X7 is the yellow/green socket. User manual Dual DC LISN 150 kHz – 200 MHz | Assembly of the KIT...
- Page 4 7. Please only use neutral detergents for cleaning. Never use alcohol, benzene or thinner. User manual Dual DC LISN 150 kHz – 200 MHz | Assembly of the KIT...
- Page 5 Connectors: 4 mm banana Enclosure: 1590N1 Hammond MFG diecast aluminium 121.2 x 65.5 x 39.8 mm Important Read following articles and the information on our labs website carefully! User manual Dual DC LISN 150 kHz – 200 MHz | Assembly of the KIT...
