Endorphin.es TWO OF CUPS Manual

Short press: MODE button for changing
the mode for voice 1 & 2 knobs:
envelope decay (blue),
sample selection per voice (fuchsia).
Long press: BANK change from 1 to 8:
Pressing the button shortly three times
saves the knobs positions set for the current
bank of all modes and both voices.
META control voltage inputs (range 0...+5V)
If no CV applied or sample selected,
then the first sample of each
voice's folder is chosen.
Unattenuated META control voltage inputs
(range -5...+5V), voltage value added to the manual
offset sample selection knob (fuchsia mode).
Individual trigger/gate inputs
for each of the voices:
Typically you patch GATE or TRIGGER
pulses from the sequencer here.
If there is no clock present,
but a patch cable is inserted
into the CLOCK IN* jack,
manual launch buttons will not work.
ENDORPHIN.ES® – TWO OF CUPS
Module design by Andreas Zhukovsky
Collection Spring / Summer 2022
Endorphin.es are made in Barcelona, Spain
Follow, like, post and tag us at instagram:
@endorphin.es
WARRANTY
RTFM – be so kind and read the manual. It will provide you with the information you need to fully indulge the module you just purchased – for which we like to thank you.
Enjoy your sound experiences, dear sonic traveller. Beginning from the product's purchase date a 1-year warranty is guaranteed for each product in case of any manufacturing errors
or other functional deficiencies during runtime.
The warranty does not apply in case of: • damage caused by misuse • mechanical damage arising from careless treatment (dropping, vigorous shaking, mishandling, etc.)
• damage caused by liquids or powders penetrating the device • heat damage caused by overexposure to sunlight or heating • electric damage caused by improper connecting
The warranty covers replacement or repair, as decided by us. Please contact us via email for a return authorization before sending anything. Shipping costs of sending a module back for
servicing is paid by the customer. Device complies with all EU regulations concerning RoHS lead-free manufacturing and WEEE disposal

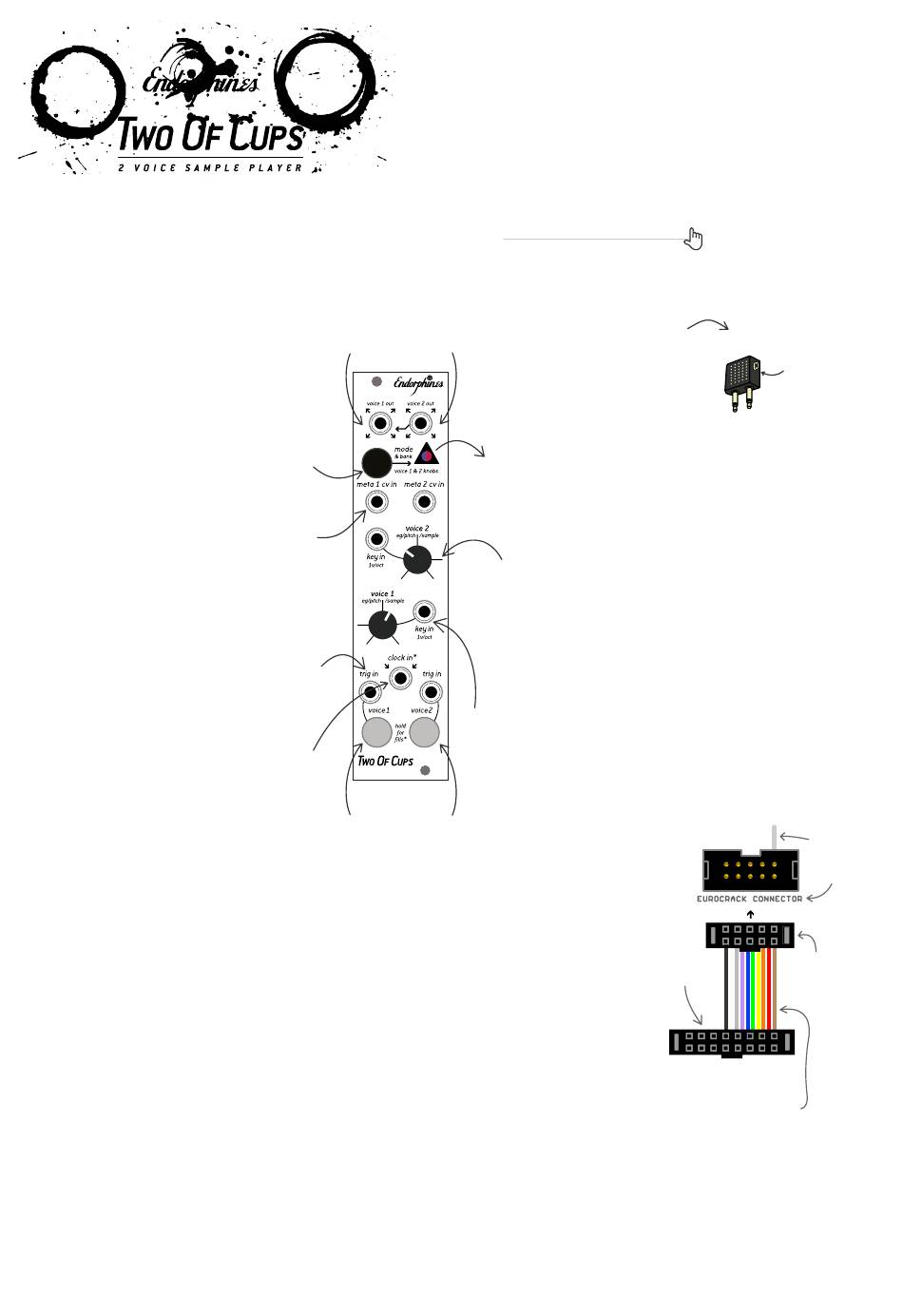

TWO OF CUPS OVERVIEW
Separate voices outputs,
voice 2 is pre-patched to voice 1 out
pitch (red),
Manual launch buttons for voices 1 & 2:
In case there is a clock signal applied to the
CLOCK IN* jack, the buttons trigger rolls
following the clock
IT IS BETTER TOGETHER
• 6 HP width, 2 voice intuitive sample player with 8 banks
• Zero-latency sample playback—directly from microSD card
• Factory soundbank by Julia Bondar
• Onboard envelope generator decay control, pitch control with 1V/Oct input
and sample selection control with meta cv input
• Arbitrary sample rate: 8 and 16 bit samples with 12 bit output bitrate
• Depth: 30mm (with ribbon cable plugged in)
• Power requirements: +12V: 125mA, -12V: 20mA
Video manual: https://youtu.be/rdacPSxF4n4
voice 1/2 jack outputs compatible
with the airplane stereo adapter**
Short press: MODES visualization:
envelope decay (blue),
•
sample selection per voice (fuchsia).
•
Long press: BANK visualization:
bank 1, bank 2,
• ••
bank 5, bank 6,
• ••
Voice 1 & 2 knobs adjust parameters in
each mode:
- decay envelope (min. 10 ms/max. 10 sec.)
If knob is set CW the full sample is played –
no decay at all.
- pitch +/-2 octaves
- sample select per voice: from 1st one
in alphabetical order to 24th.
1v/oct CV inputs for each of the voices 1 & 2:
Typically you patch pitch CV output from
the sequencer here.
1v/oct inputs range -3...+3V (6 octaves),
pitch voltage value added to the manual
pitch offset selection knob (red mode).
You can adjust the v/oct scale in the
settings/pitch_1/2.txt file.
© Endorphin.es 2011–2022
LINK: https://endorphines.myshopify.com/collections/all-products/
products/airplane-audio-adapter-stereo-into-l-r-mono
for further easier routing.
** if using stereo samples,
only left channel is played
pitch (red),
•
bank 3, bank 4,
••• ••••
bank 7, bank 8
••• ••••
connect with the
16-pin side into the
power buss board
POWER CONNECTION
red/brown pair or wires correspond
to negative -12V power connector
stereo TRS 3.5mm
input/output
separate left and rigth
3.5mm TS inputs/outputs
-12V / red stripe
polarity marking
bottom/rear
side of the module
connect to the module
from the back side
