Endorphin.es Running Order Manual

connect to the
power bus board
Output Output Output Output Output

POWER CONNECTION

- internal clock out jack: 30...300 BPM in 16
(PPQN24÷6) when no external clock applied;
- external clock output in 16

FIRMWARE UPDATE

download latest firmware for
RUNNING ORDER:
http://airways.endorphin.es
power OFF you modular system:
hold STEP while powering your system again:
you will see the illuminati LED
slowly blink BLUE:
with simple mono or stereo cable connect
audio output from your computer headphones
output to REPEAT 1 CV IN input of the module
Press PLAY and wait 2+ minutes.
Illuminati LED will quickly blink BLUE.
The modue will reboot automatically blinking
FUCHSIA LED after new firmware is installed
Disable alarms and notifications during
the update process as they will most likely
interupt the update procedure, flight mode
on phones is recommended.
When Illuminati LED flashes
that means signal is too low or too high:
Just reset the firmware update process by
pressing REST once and regulating the signal level
with RATE knob: full CCW: 1x amplification,
full CW: 10x amplification).
Video update guide: https://youtu.be/WKt7FdRGRYI
WARRANTY
RTFM – be so kind and read the manual. It will provide you with the information you need to fully indulge the module you justpurchased – for which we like to thank you.
Enjoy your sound experiences, dear sonic traveller. Beginning from the product's purchase date a 1-year warranty is guaranteed for each product in case of any manufacturing errors
or other functional deficiencies during runtime.
The warranty does not apply in case of:
• damage caused by misuse • mechanical damage arising from careless treatment (dropping, vigorous shaking, mishandling, etc.)
• damage caused by liquids or powders penetrating the device • heat damage caused by overexposure to sunlight or heating • electric damage caused by improper connecting
The warranty covers replacement or repair, as decided by us. Please contact us via email for a return authorization before sending anything. Shipping costs of sending a module back for
servicing is paid by the customer. Device complies with all EU regulations concerning RoHS lead-free manufacturing and WEEE disposal
-12V / red stripe
polarity marking
back side of the module
connect to the module
from the back side
red/brown pair of wires correspond
to negative -12V power connector
track I and II trigger outputs,
trigger output length: 10 msec
Output range: 0...+10V
Clock output:
th notes
th notes after divider;
Output range 0...+10V
Repeats I/II :
manual knobs
with CV inputs.
Set amount of active
trigger repeats or
Euclidean trigger fills
External clock
input, 16
notes clock
expected
(0...+5V or +10V,
0.65V threshold)
- If in live mode, the buttons
WAV
- If in step record mode,
- If in Euclidean record mode,
RED

LISTEN TO THE HEART BEAT CAREFULLY

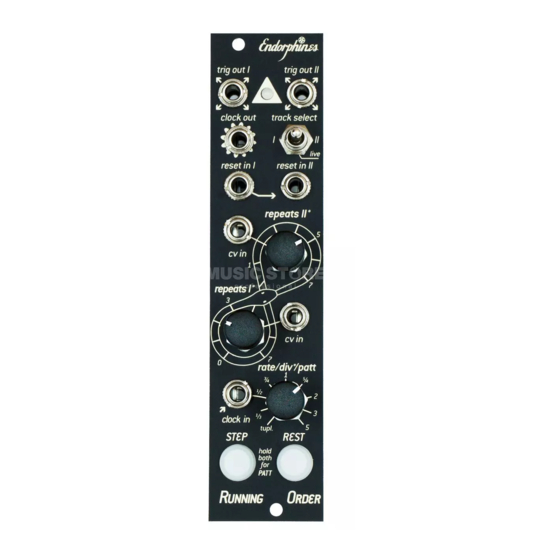

• 6 HP wide, 2-track trigger generator
• Zero-jitter clock generation: less than 50 microseconds internal clock jitter
th
• 101-style 16 note input mode (step/rest) with manual or CV controllable
amount of trigger repeats after the active trigger step happens.
• Euclidean mode enabled for each track, set total length and the number of fills
inside the Euclidean circle. Fill amount is also CV controllable.
• Individual reset inputs per track, reset for track 1 is normalled to reset of track 2
• Clock divider for incoming external clock allows to quickly obtain various
musical divisions on the fly incl. triplets of course, but more importantly tuplet
mode lets you stretch the desired amount of trigger repeats into a single bar.
• Dedicated mute buttons for each track
• 8 patterns of trigger sequences stored in the module and will be recalled on
each power cycle.
Depth: 30 mm (with plugged in ribbon cable)
Power requirements: +12V: 30 mA, -12V: 10 mA
th
(PPQN24÷6)
are individual Track I and II
MUTE buttons.
the buttons are used for
adding steps and rests.
the buttons set the length
of the Euclidean circle
(+1 step pressing STEP and
+16 steps by pressing REST)
© Endorphin.es® 2011–2021
- blinking to BPM in blue in live mode;
- lights up red in step recording,
- fuchsia in euclidean recording
Track selector switch:
- record a trigger sequence or set
the Euclidean length by switching
to the left (track I) or right (track II);
- playback live mode in the middle
Reset/syncronization trigger inputs.
Each trigger applied resets a certain track's
sequence to its first step.
'Reset in I' is normalled to 'reset in II', if no
cable is inserted into 'reset in II'.
When a CV cable is inserted,
each Repeats knob acts as CV
attenuator; expected CV range: 0...+5V
Rate/divider knob:
- if no clock cable is inserted, then
this knob sets the speed of the internal
clock in BPM, from 30 to 300;
- if clock is inserted via cable, this knob
sets the speed of dividers/tuplets for
the repeats.
