Installing and operating the Rackmount
Charger
Introduction
This chapter describes how to install, configure and operate the Rackmount Charger. The
Rackmount Charger is a rack charger equipped with a USB port and two Ethernet ports, making
it possible to connect it directly to a LAN or to a PC for the purpose of upgrading or configuring
cordless telephones placed in the Rackmount Charger or the Rackmount Charger itself.
The Rackmount Charger is part of the Avaya IP-DECT systems. It charges the Avaya 3720/
3725 DECT Telephones.
Each Rackmount Charger charges six telephones simultaneously.
The USB port is used to connect the Rackmount Charger to a PC running the Portable Device
Manager (PDM) or to the Avaya In-Building Wireless Server (AIWS). This program can be used
to upgrade the software and to configure parameters in cordless telephones placed in the
Rackmount Charger as well as the Rackmount Charger itself. The Ethernet ports makes it
possible to connect up to four Rackmount Charger to one single LAN outlet.

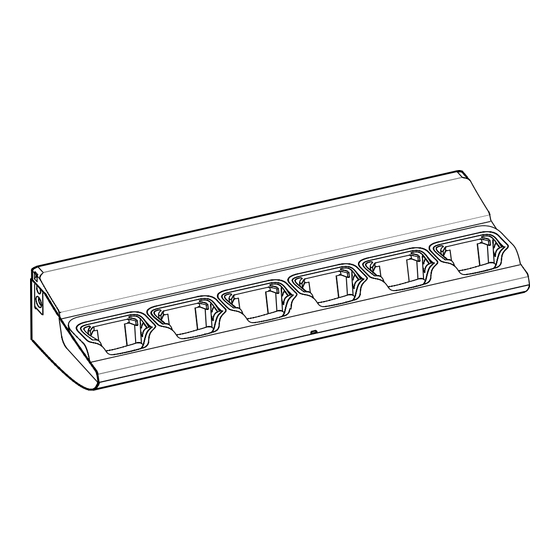

Figure 48: Rackmount Charger
This chapter is intended as a guide for installation, maintenance and troubleshooting purposes.
Supply voltage
Avaya DECT R4 - Installation and Maintenance Guide
Power Supply for Rackmount Charger
100–240 VAC/0.7 A, 50/60 Hz; Building fuse
for fixed installation: 10 A maximum
201
06/2009
