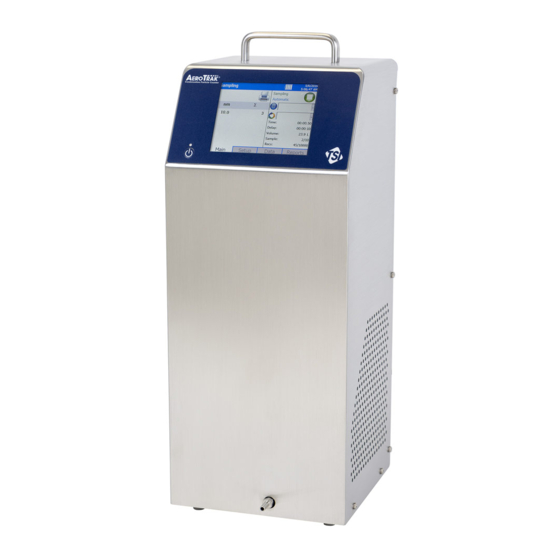

- Page 1 AEROTRAK ® CLEANROOM CONDENSATION PARTICLE COUNTER MODEL 9001 QUICK START GUIDE P/N 6010559, REVISION C OCTOBER 2017...
- Page 2 This guide will walk you through the setup screens required to make the unit run and log data. The logged data can then be downloaded to a USB thumb drive. I M P O R T A N T Before turning the unit ON, make sure the fill and drain bottles are connected appropriately.
- Page 3 • Power the unit ON using the “power” button. The Cleanroom Condensation Particle Counter (CPC) will take about 10 to 15 minutes to warm-up. The warm-up screen is shown below. • Wait for all the warm-up screen “reds” to turn green. If you really need to exit the warm-up screen, press the Power Down button on the instrument and then select “Cancel”...
- Page 4 “warming up” will be displayed. You can setup the unit while the unit is warming up. • For instrument setup, go to the “Setup” tab. • Click on “Device.” • Select “Maintenance." AeroTrak Cleanroom Condensation Particle Counter Model 9001...
- Page 5 The maintenance screen has a number of useful features as described below. Field Description Whenever wicks are replaced or the unit is fully Prime Wicks shut off for prolonged periods of time (> 1 day), wicks need to be primed. Click “Prime Wicks” and the instrument will go through a priming cycle that injects water to all three wicks.
- Page 6 ∞ as shown below. Hold time is the time you want to wait between taking samples. More often, it is set to 0 to take samples continuously. AeroTrak Cleanroom Condensation Particle Counter Model 9001...
- Page 7 • Save the recipe and exit back to the setup screen. • To setup the instrument to log data using a computer or FMS software, you can query the IP address of the instrument on the setup screen by clicking on the icon “Info” as shown below. •...
- Page 8 Data tab. If you do not have a USB thumb drive, you can still review the data record by record. • To download data, click on the “USB thumb drive” icon as shown below. AeroTrak Cleanroom Condensation Particle Counter Model 9001...
- Page 9 • Click on “Export As” to save to a file. You can enter the filename as shown below. • To download data selected by Zone and optionally filtered by date, make the choices on the form below and click on “Export” button. •...
- Page 10 Data will be saved to the USB thumb drive as shown below. • To clear any logged data, on the Setup Screen, click on “System” icon and then click on “Clear Samples” as shown below. AeroTrak Cleanroom Condensation Particle Counter Model 9001...
- Page 11 P o w e r i n g t h e U n i t D o w n To power down the unit, press the “power” button on the front panel. The unit can be powered down by pressing the “Turn Off” button. You do not need to have the fill and drain bottles connected to the unit after it is completely powered down.
- Page 12 TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 874 2811 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China Tel: +86 10 8219 7688 France Tel: +33 1 41 19 21 99 Singapore Tel: +65 6595 6388 Germany Tel: +49 241 523030...
