modeazy ME-TSO-01 Manual

Toy storage organizer
Hide thumbs Also See for ME-TSO-01:

Advertisement

Quick Links

Download this manual

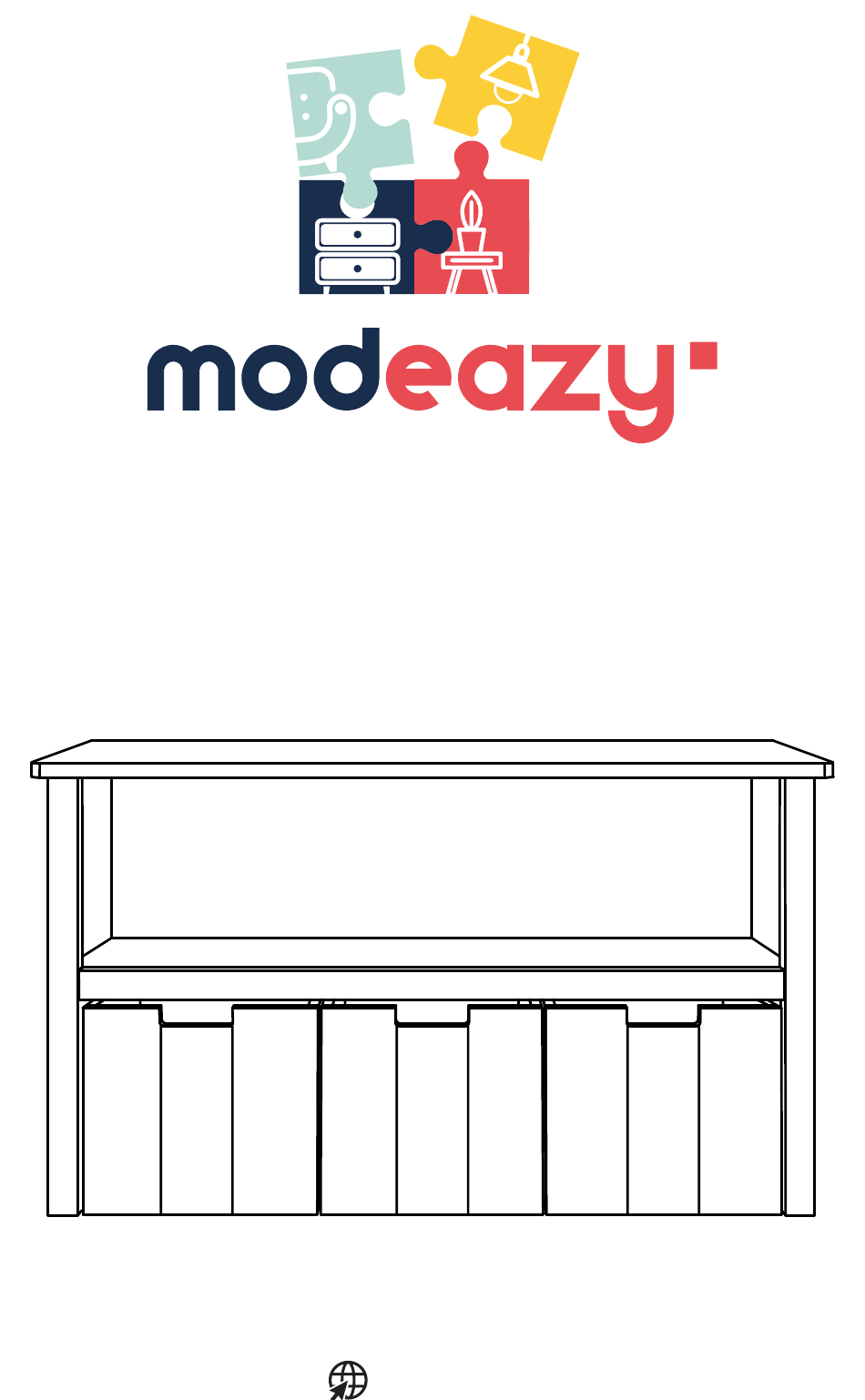

ME-TSO-01
Toy Storage Organizer
modeazy.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ME-TSO-01 and is the answer not in the manual?

Questions and answers

Related Manuals for modeazy ME-TSO-01

Summary of Contents for modeazy ME-TSO-01

  • Page 1 ME-TSO-01 Toy Storage Organizer modeazy.com...

  • Page 2: Maintenance And Care

    Manual Guide Notes •Please read the following instructions carefully and use the product properly. •Keep this manual for future assemblies or hand over when you transfer the product. •Check the product upon receiving and make sure there are no manufacturing defects.

  • Page 3: Assembly And Installation Instructions

    ASSEMBLY AND INSTALLATION INSTRUCTIONS PARTS LIST Right Side Partition (Qty 1) Left Side Partition (Qty 1) Top Shelf (Qty 1) Fixed Middle Shelf (Qty 1) Box Left & Right Side (Qty 3+3) F Box Front & Back Side (Qty 3+3) G Back Panel (Qty 1) H Box Bottom Side (Qty 3) I Wood Dowel (Qty 8)
  • Page 4 •Before assembly, make sure to check all the parts and accessories. If any parts are missing or damaged, please do not return the product. Instead, please contact us within a week of receiving the product and share the item name(s) that is missing or damaged and we will send you a replacement. 2.1 Place the Wood Dowels (I) in cutouts locations.
  • Page 5 3.1 Bring the left side partition (A) and right side partition (B) install plastic feet pad nail (L) on bottom. 3.2 Bring the (D) and install it to right side partition (B). fixed middle shelf Tighten minifixes (J ) clockwise to lock. ARROW TOWARD MINIFIX...
  • Page 6 4.1 Attach the left side partition (A) to (D). fixed middle shelf Tighten minifixes (J ) clockwise to lock. ARROW TOWARD MINIFIX OPENING 4.3 Install the back panel (G) between (A) and (B) partitions.
  • Page 7 5.1 Bring the top shelf (C) and install it over the (A) and (B) partitions. Tighten minifixes (J) clockwise to lock. 5.3 Bring the box left side (E) and back side (F) then attach them. Tighten minifixes (J) clockwise to lock. ARROW TOWARD MINIFIX...
  • Page 8 6.1 Attach the box right side (E) with back side (F). Tighten minifixes (J ) clockwise to lock. ARROW TOWARD MINIFIX OPENING 6.3 Install the wheel (N) to back side of box bottom (H) with using screw (M). 6.4 Install all wheels (N) on box bottoms.
  • Page 9 7.1 Install the box bottom side (H). 7.2 Attach the box front side (F).
  • Page 10 8.1 After attach the box front side (F) tighten minifixes (J ) clockwise to lock. ARROW TOWARD MINIFIX OPENING 8.2 Install all boxes with same instruction.
  • Page 11 “Product Description” Approximate Dimensions: 33 (width) x 102 (length) x 62 (height) cm, Small Drawers: 30.2 (width) x 30.2 (length) x 29.5 (height) cm With three easily removable drawers, you can organize items such as toys, books, socks, and other miscellaneous small items; use as a table for your kids to do their homework and pictures;...
  • Page 12 Thank you for your purchase. Please contact us if you have any questions or difficulty with assembly. Email: info@modeazy.com Please make sure to share your full name and order details so that we can assist you better. /modeazy /modeazycom modeazy.com...
