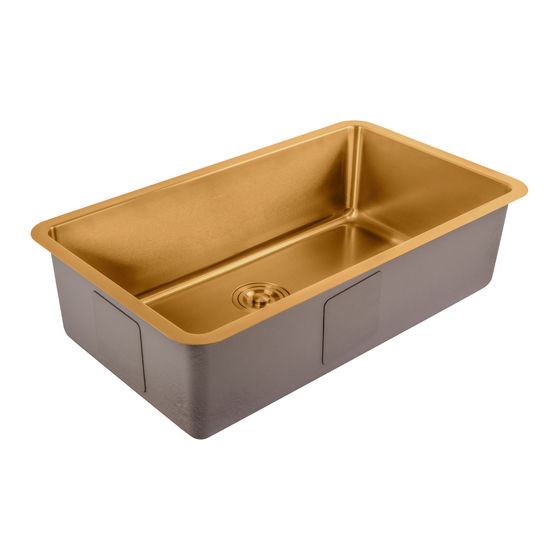

Orion undermount single bowl sink

Advertisement

AQUAECO
WASHROOM AND PLUMBING SOLUTIONS
INS-ORI-U-SINK
ORION UNDERMOUNT SINGLE BOWL SINK
www.sanipexgroup.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUAECO INS-ORI-U-SINK and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanipex AQUAECO INS-ORI-U-SINK

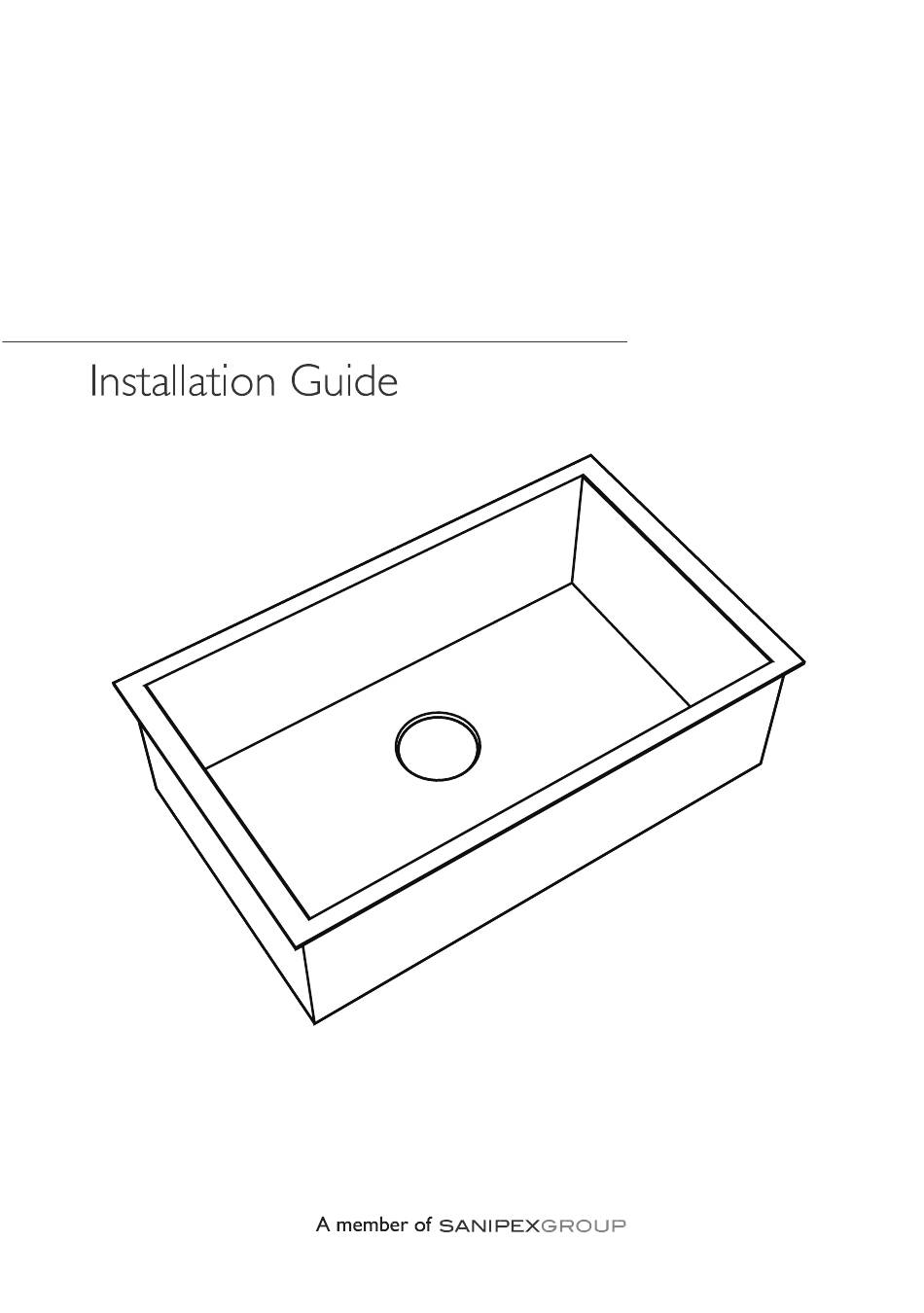

  • Page 1 AQUAECO WASHROOM AND PLUMBING SOLUTIONS INS-ORI-U-SINK ORION UNDERMOUNT SINGLE BOWL SINK www.sanipexgroup.com...
  • Page 2 IMPORT ANT PLEASE READ Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and invalidate the guarantee. Installation must comply with all Local/National Water Supply Authority Regulations/Byelaws and Building and Plumbing Regulations.
  • Page 3 NOTICE! It is highly recommended the sink to be installed by a professional installer. Installation: 1. Povide your countertop fabricator with the included cut-out template to determine the size of the opening and the placement of the sink. When determining anchor locations, allow space for faucet clearance. Sink Cutout * Faucet Not Included 2.
  • Page 4 3. Loosely attach the mounting brackets to the underside of the counter top. Countertop Screw Mounting Bracket 4. Apply a bead of silicon sealant around the edges of the sink.
  • Page 5 5. Lift the sink into place and tighten the mounting brackets evenly. (WARNING: Do not overtighten!) Countertop Silicon Sink Mounting Bracket Screw 6. Apply a bead of silicon sealant at the edge of the sink fill any gap. Wipe away any excess silicon and allow to dry.
  • Page 6 7. Install drain assembly (not included). INSTALLATION COMPLETE!!!
  • Page 7 Note:...
  • Page 8 AQUAECO WASHROOM AND PLUMBING SOLUTIONS www.sanipexgroup.com INS-ORI-U-SINK-11-21...
