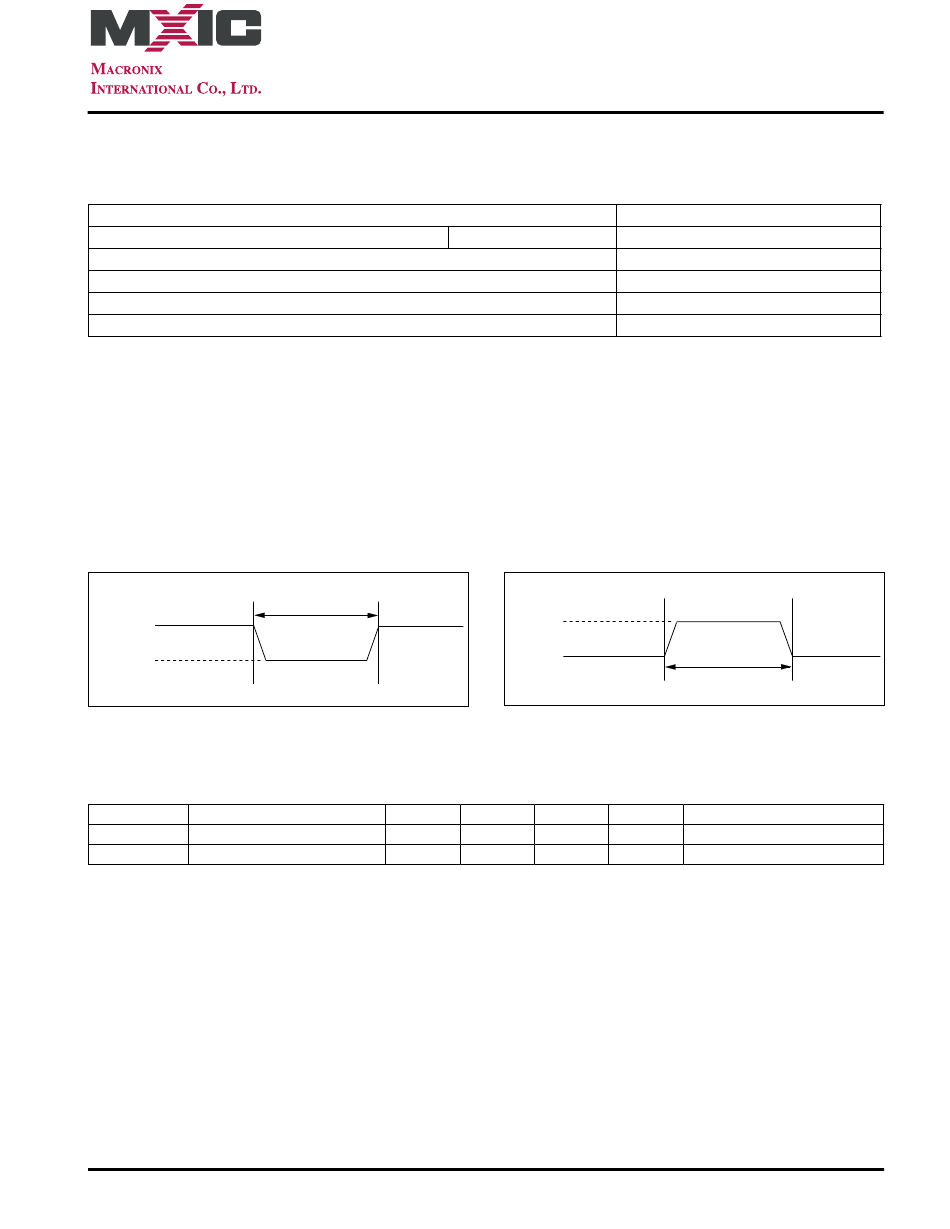

ELECTRICAL SPECIFICATIONS

Absolute Maximum Ratings

RATING
Ambient Operating Temperature
Storage Temperature
Applied Input Voltage
Applied Output Voltage
VCC to Ground Potential
Notes:
1. Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the de-
vice. This is stress rating only and functional operational sections of this specification is not implied. Exposure to
absolute maximum rating conditions for extended period may affect reliability.
2. Specifications contained within the following tables are subject to change.
3. During voltage transitions, all pins may overshoot to 4.6V or -0.5V for period up to 20ns.
4. All input and output pins may overshoot to VCC+0.5V while VCC+0.5V is smaller than or equal to 4.6V.
Figure 3. Maximum Negative Overshoot Waveform
0V
-0.5V
Capacitance TA = 25°C, f = 1.0 MHz
Symbol Parameter
CIN Input Capacitance
COUT Output Capacitance
P/N: PM1576
Industrial (I) grade
20ns
Min.
27
MX25L4006E
Figure 4. Maximum Positive Overshoot Waveform
4.6V
3.6V
Typ. Max. Unit
6 pF
8 pF
VALUE
-40°C to 85°C
-55°C to 125°C
-0.5V to 4.6V
-0.5V to 4.6V
-0.5V to 4.6V
20ns
Conditions
VIN = 0V
VOUT = 0V
REV. 1.6, OCT. 24, 2014
