Summary of Contents for ACASIS AC-4HDMI

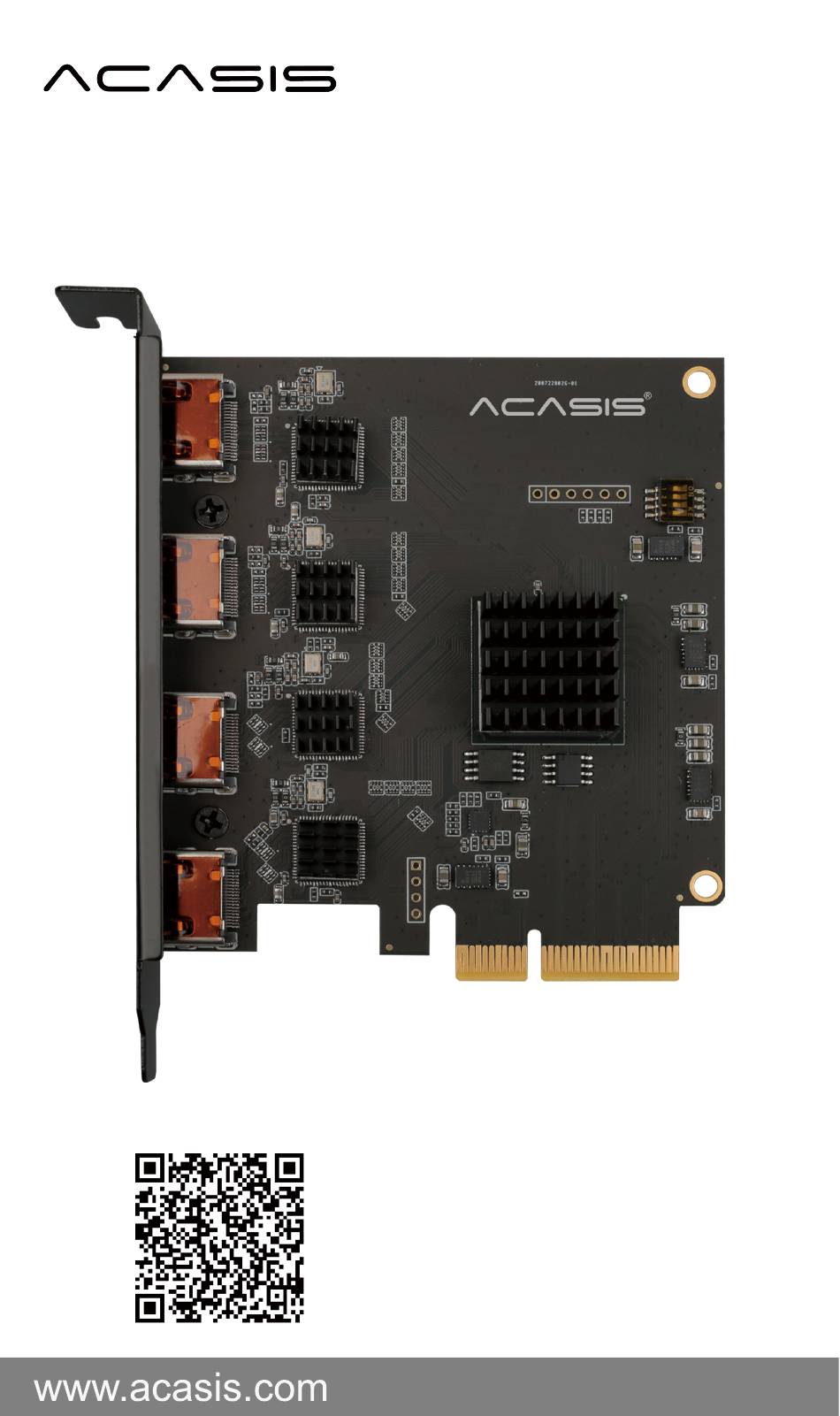

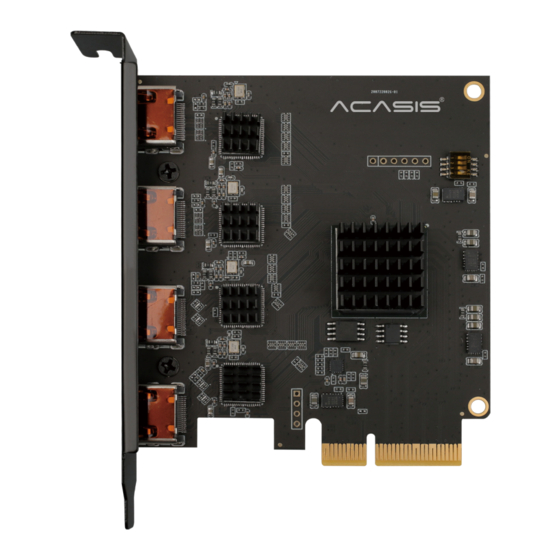

- Page 1 QUAD HDMI PCIE VIDEO CAPTURE CARD Installation Guide AC-4HDMI User Manual...
- Page 2 Product Features 4-channel HDMI video signal input. Support 1080p input video signal (compatible with resolutions below 1080p). Capture Resolution is up to1080p@60fps Host Interface: PCIe 2.0 X4, 20Gb/s Comform to DerictShow DirectSound , PCM 48K stereo. Video processing is completed by the capture card, which does not occupy CPU of the host computer.
-
Page 3: Product Installation
ACASIS PCIe capture card driver. Driver Installation Supported Operating Systems：Windows XP/7/8.1/10, Linux 1. Please download the driver from ACASIS website. http://www.acasis.com 2. As for windows, open the driver installations source folder and double click "DrvInstall_X64.exe" for 64 bit windows system or "DrvInstall.exe"... - Page 4 4. Click "Install" . After the installation has finished, a notification will appear to show if the installation is successful, and click "OK" to finish the installation . One Machine With Multiple Capture Cards： Multiple PCIe capture cards can be installed on one computer and work at the same time to realize multi-channel live broadcast and acquisition.
- Page 5 (1) First card (The white part is the switch position) Dialing code: Switch 1 / 2 / 3 / 4 downward (2) Second card Dialing code: switch 1 upward, switch 2 / 3 / 4 downward (3) Third card Dialing code: switch 2 upward, switch 1 / 3 / 4 downward (4) Fourth card Dialing code: switch 3 upward, switch 1 / 2 / 4 downward...
-
Page 6: Product Specifications
OBS open-source live broadcast broadcast platform software,XSplit, YouTube, and other live broadcast platforms Compatible development DirectShow (Windows) standard interface interface Power dissipation < 3.0 W Operating temperature 0-85 ° C（32℉-185℉） range Website: https://www.acasis.com Email: support@acasis.com Facebook Page: https://www.facebook.com/Acasis.support Acasis Club: https://www.facebook.com/groups/acasis...
