Switch 1: Fiber mode switch
When the switch was turned to "On", it means that the fiber was
turned to forced mode, and "Off" for auto-negotiation mode.
Note: be sure the opposite end is using the same setting (Forced or
Auto-negotiation). And when using two converters at the same time,
the two converters MUST set to forced mode.
Switch 2: LLR
When the switch was turned to "On", it means that the LLR was
enabled and "Off" for disabled.
Note: When using two converters, don't enable the both devices' LLR
function at the same time.
I
C
NSTALLING IN A
HASSIS
The Converter can be fit into any of the expansion slots on DMC-1000
chassis.
Unscrew and pull out the media
converter board
First, install the converter onto a carrier supplied with the chassis:

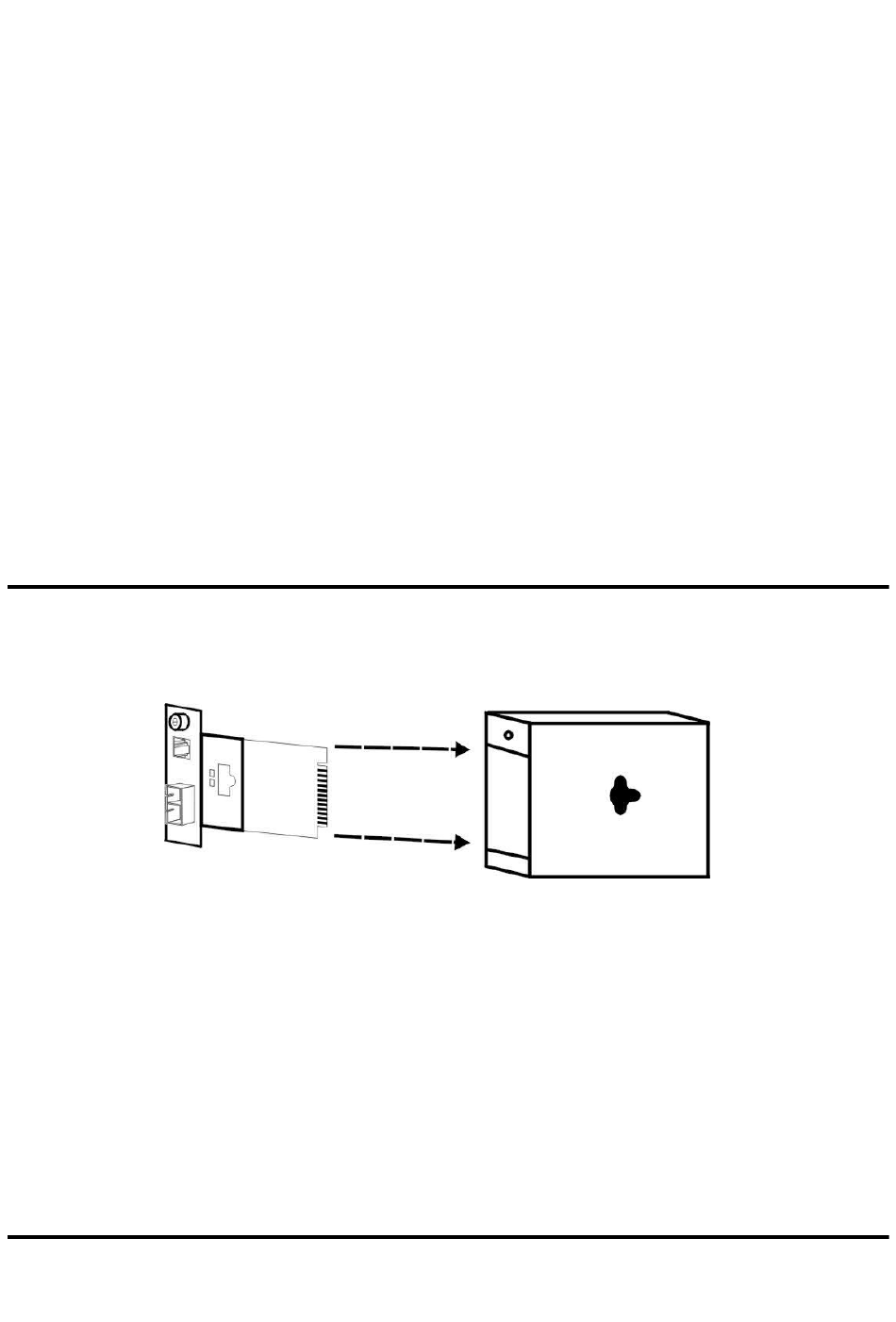

Step 1. Unscrew and pull out the media converter board.
Step 2. Plug in the media board to any of the vacant slots.
Step 3. Fit the converter onto the carrier and use the screw to secure
it.
