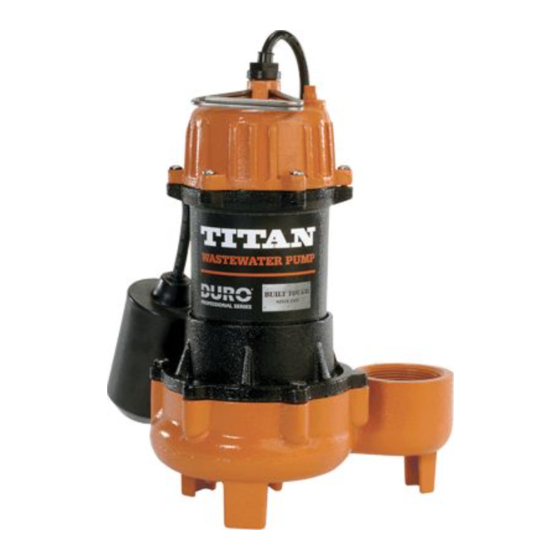

Submersible Wastewater Pump
Models: DSBF300 DSBW300
Operating & Installation Instructions
Save these instructions & keep track of your product's serial#
This manual contains important
safety and operating instructions.
Read all instructions and follow
them when using this product.
Failure to consider this information
and follow these instructions,
including those concerning
maintenance, may result in property
damage, injury and or death.
NOTE: THIS PRODUCT MAY FAIL
WHERE NOT MAINTAINED, IN
CATASTROPHIC EVENTS OR IN
POWER FAILURES. MONITOR THIS
PRODUCT CLOSELY.
Canature WaterGroup Canada Inc. ("Canature")
did not design or manufacture this product. Canature
has no knowledge of and makes no representations or
warranties respecting the product's design,
manufacturing, testing, packaging, or inspecting.
Canature has disclosed all known risks associated with
the product within this manual but cannot disclose
risks that are beyond its knowledge.
NOTICE: THIS MANUAL CONTAINS A LIMITED
WARRANTY. BY INSTALLING AND OR USING THIS
PRODUCT, YOU WAIVE CERTAIN LEGAL RIGHTS
INCLUDING THE RIGHT TO SUE OR CLAIM
COMPENSATION IN THE EVENT OF PROPERTY
DAMAGE, INJURY, AND OR DEATH.
PROFESSIONAL SERIES
Advertisement
Table of Contents
Related Manuals for Duro TITAN DSBF300
Summary of Contents for Duro TITAN DSBF300

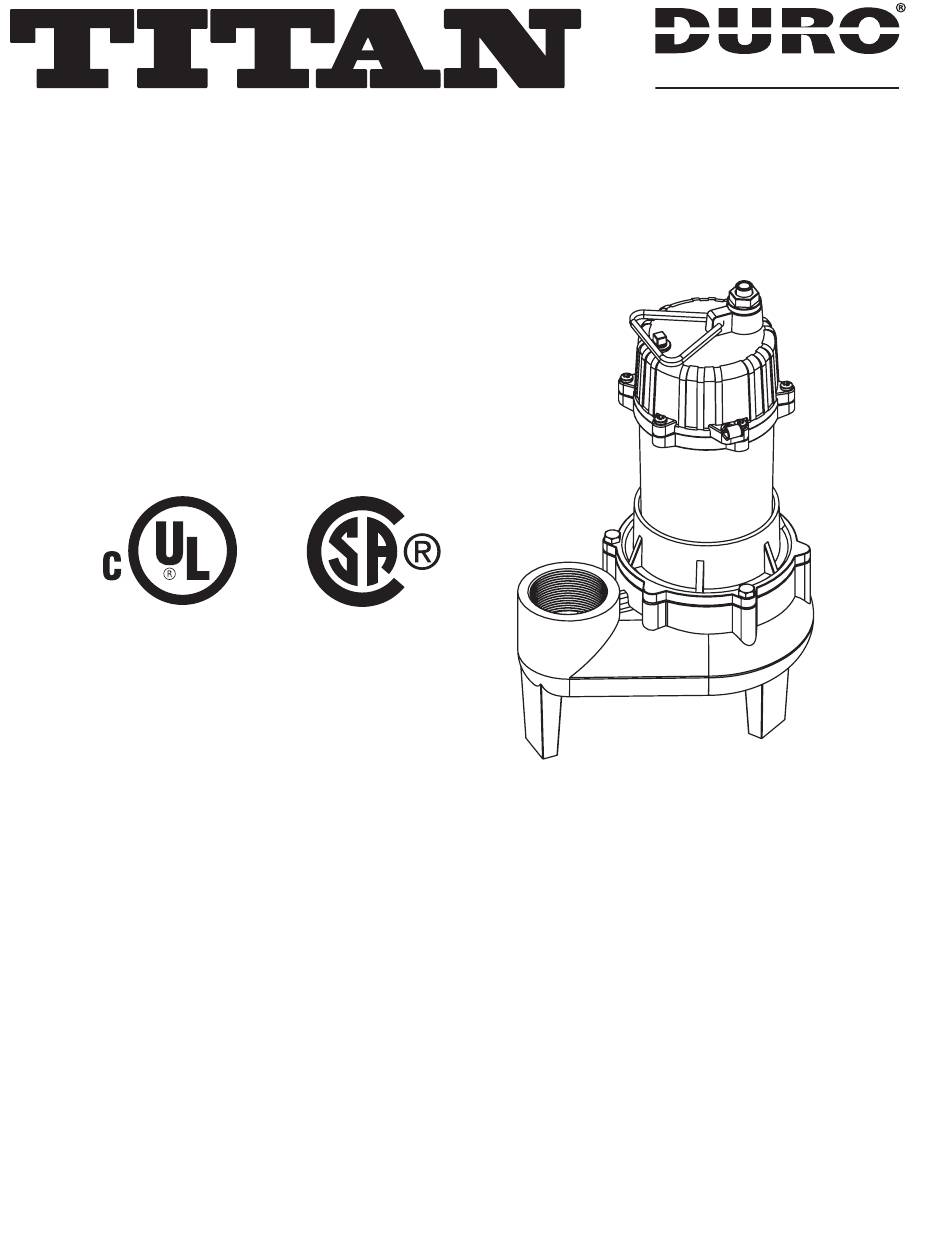

- Page 1 PROFESSIONAL SERIES Submersible Wastewater Pump Models: DSBF300 DSBW300 Operating & Installation Instructions Save these instructions & keep track of your product’s serial# This manual contains important Canature WaterGroup Canada Inc. (“Canature”) safety and operating instructions. did not design or manufacture this product. Canature has no knowledge of and makes no representations or Read all instructions and follow warranties respecting the product’s design,...
-
Page 2: Table Of Contents
Table of Contents Reading this Manual Introduction Pump Specifications Safety Instructions Installation Instructions Piping for Effluent Applications – 19 mm [3/4”] of less solids Piping for Sewage Applications 51 mm [2”] or less solids (DSBW300) Check Valves & Air Locking Basin Cover &... -
Page 3: Reading This Manual
READING THIS MANUAL Save these instructions & keep track of your product’s serial# This manual contains important safety and operating information and instructions based on information known by Canature. Canature has no knowledge of and makes no representations or warranties respecting the product’s design, manufacturing, testing, packaging and inspecting. -
Page 4: Pump Specifications
PUMP SPECIFICATIONS Models 19 mm or ¾” 50 mm or 2” DSBF300/DSBW300 Description Automatic sump/effluent pumping 19 mm solids, cast Automatic sump/effluent pumping 50 mm solids, cast iron motor case, thermoplastic base. iron motor case, thermoplastic base. Motor 4/10 hp shaded pole, oil filled, thermally protected 4/10 hp shaded pole, oil filled, thermally protected supply supply –... -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS To get started installing your submersible pump; 1. Install pump on a hard, level surface such as cement, asphalt, etc. Never place pump directly on earth, clay, or gravel surfaces. 2. Install pump in a basin of at least 405 m [16”] diameter and 610 mm [24”] depth. Piping for Effluent Applications –... -
Page 6: Electrical Installation
ELECTRICAL INSTALLATION This pump is supplied with a grounding type attachment plug. To reduce the risk WARNING of electrical shock, be certain that it is connected only to a properly grounded type receptacle. RISK OF ELECTRIC SHOCK INSTALLATION INSTRUCTIONS The pump operates on a 115 volt, 60 cycle AC, single phase and has a three-prong plug. The third prong is used to ground the pump to prevent possible fatal shocks. -
Page 7: Maintenance
MAINTENANCE For proper maintenance; — The pump MUST be kept clean and free of debris. — The inlet screen prevents the passage of dirt and other solid material from entering the pump, but it can be overwhelmed. — Cleanings should occur often for pumps that run constantly. —... -
Page 8: Cleaning The Pump
CLEANING THE PUMP The following steps are for service and cleaning of the pump; 1. Always disconnect the unit from the power supply before any servicing. 2. Disconnect discharge piping and remove pump from sump/sewage basin. 3. Submerse pump in a disinfectant solution (Clorox or Chlorine) for at least one hour before disassembling pump. 4. -
Page 9: Troubleshooting Checklist
TROUBLESHOOTING CHECKLIST The following steps are for service and cleaning of the pump; 1. Pump does NOT run or hums — Pump plug and liquid level control plug not securely fastened together. — Push plugs together tightly — Liquid level control inoperative. Test level control by plugging pump cord directly into wall outlet. If pump operates, float tether requires adjustments or should be replaced —... -
Page 10: Guarantee
GUARANTEE This product is guaranteed for a period of two (2) years from the date of original retail purchase against defects in materials and workmanship. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification) –... -
Page 11: Additional Limitations
Additional Limitations This warranty applies only to the original purchaser and may NOT be transferred. Neither the retailer nor the manufacturer shall be liable for any other expense, loss of damage, including; without limitation, any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use, or inability to use this product. This warranty shall NOT apply when damage is caused by;... - Page 12 Toll Free: 1-877-288-9888 www.canaturewg.com 51448 2022-01-04...
