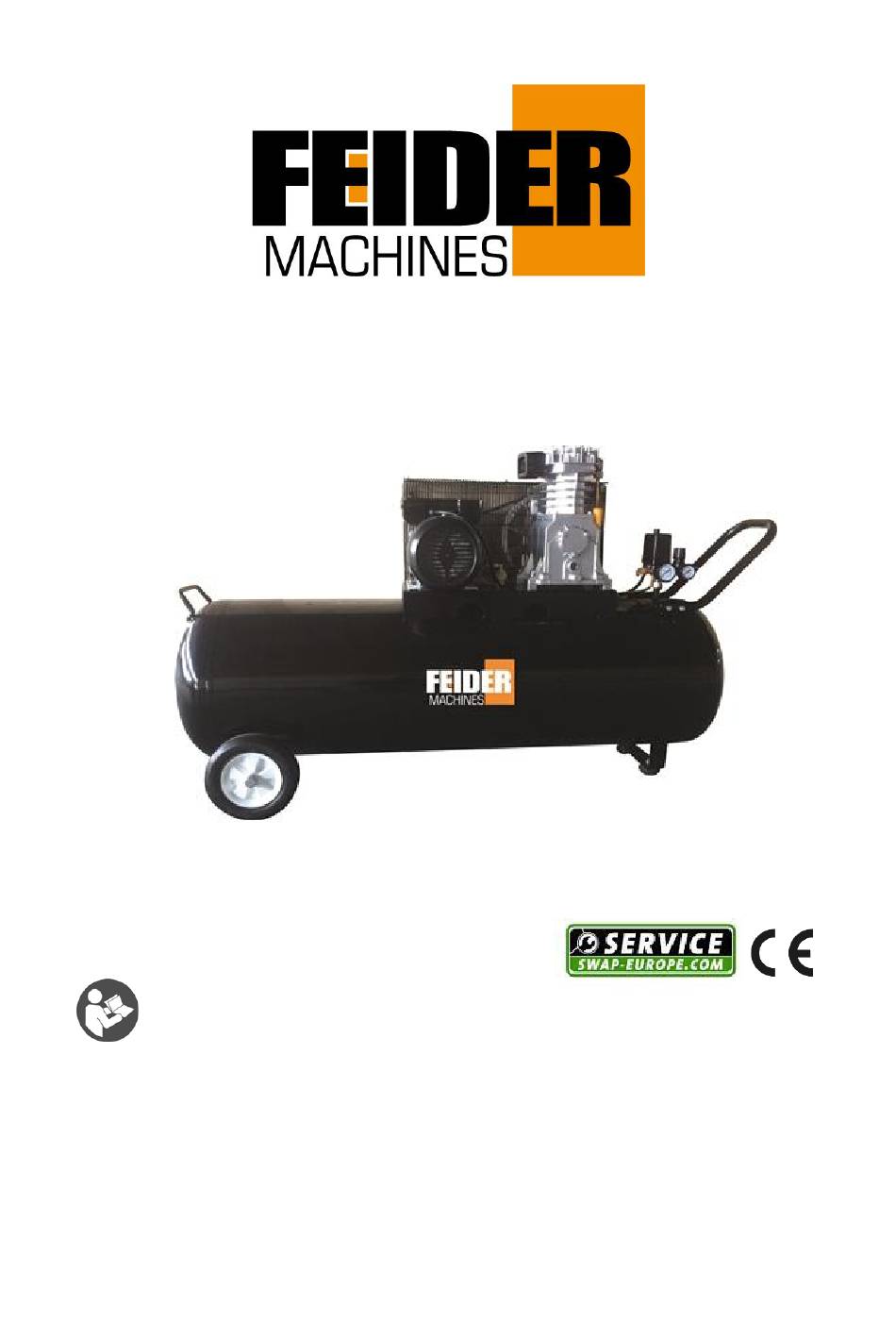

- Page 1 ORIGINAL INSTRUCTIONS COMPRESSOR INSTRUCTION MANUAL FC200L Feider ZI, 32 RUE ARISTIDE BERGES 31270 CUGNAUX, FRANCE Read instructions before use. Keep for future reference...
- Page 2 INTRODUCTION This air compressor is of a new design, and of excellent quality. With the advantage of being compact, beautiful in appearance, lightweight, easy to handle, highly reliable and quiet, it is suitable for many applications in the mechanic and chemical industries, for spraying and decorating, for automatic control systems, as well as in any other area requiring compressed air II.
-
Page 3: Technical Specifications
III. Technical specifications Alimentation 220-230V AC / 50Hz Power 2200W Type of motor 2 poles Max rotational speed 950/min Max discharge pressure 0.8 mPa / 8 bars 290 L/MIN Air flow 1/4” Outlet diameter Volume of air tank 200L Weight 94 kg 28kg Class... - Page 4 Instruction manual V. Safety instructions A. Symbols IMPORTANT: The symbols below can be used on the machine. Please read them for their meaning. Following the instructions given in the manual will help you to use the device more efficiently and to reduce the risks. Do not use the portable compressor with the door or fence open.
-
Page 5: General Safety Instructions
Do not start WARNING: Maintenance work in progress Filling with lubricating oil B. General safety instructions Warning! To reduce the risk of fire, injury and fire when using electrical appliances, follow the general safety instructions below. Please read them carefully before using your electrical appliances. Keep this manual carefully for future reference. - Page 6 9. Do not damage the power cable. Never carry the compressor by its cable and never pull on it to disconnect it from the power socket. Keep the cable away from sources of heat, greasy areas, and sharp objects. 10. Never overestimate your strength. Always keep a firm position and maintain your balance.
-
Page 7: Specific Safety Instructions
20. Connect a dust extraction device. If the compressor has a receptacle for connecting a dust collection or extraction device, make sure that it is properly connected and used. 21. Wear hearing protection. Exposure of prolonged duration to the noise emitted by the device may carry waiting to the hearing. 22. - Page 8 good condition. 8. The lubricating oil must be clean; the oil level must be maintained at the recommended level on the scale. 9. High oil viscosity during cold start, obstruction of oil filters, or malfunction of valve may result in lack of oil. 10.
-
Page 9: Preparation Before Use
For the oil: Replace the lubricating oil after 100 hours of use; Unscrew the oil plug when changing the oil. Add lubricating oil using a funnel. However, it is recommended to change the oil after every 500 hours. Fill the oil when the ambient temperature is above 10 ℃: recommended oil: recommended SAE30 or L-DAB100 compressor oil, For the air filter:... - Page 10 Replace the oil filter. Fit the air filter. Install the compressor in a dry, clean, dust-free, well-ventilated area, which will allow the compressor to work better and have a longer life. Install the compressor in a sufficiently bright place, easy to fill the oil.
-
Page 11: Maintenance
and minimum pressure levels have been preset at the factory. These settings should not be changed without good reason. As soon as the electric motor cuts off, the compressed air contained in the discharge pipe must be released by the relief valve located under the pressure switch. This is a necessary condition for the next start, otherwise the engine will be damaged. - Page 12 Any other condition that may affect its safe operation. If any malfunction, damages or abnormally, do not use the tool and bring it to a qualified service for inspection and repairs. If the supply cord of this compressor is damaged, it must be replaced only by a qualified service technician.
-
Page 13: Transport And Storage
IX. Transport and storage Do not tilt the compressor during transport to avoid spilling the compressor oil. Do not put objects on the compressor during transport. The machine is heavy; it must be carried to two people for the movement or using a lifting tool for loading. - Page 14 XI. Nomenclature...
-
Page 15: Declaration Of Conformity
XII. Declaration of conformity Feider ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declare that the following machine Compressor FC200L N/S : Is in conformity with the following Directives Directive Machine 2006/42/EC Directive EMC 2014/30/EU Directive RoHS 2011/65/EU Directive NOISE 2000/14/EC Annex VI &... - Page 16 DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose. Talk with your local authorities or dealer for advice on recycling.
