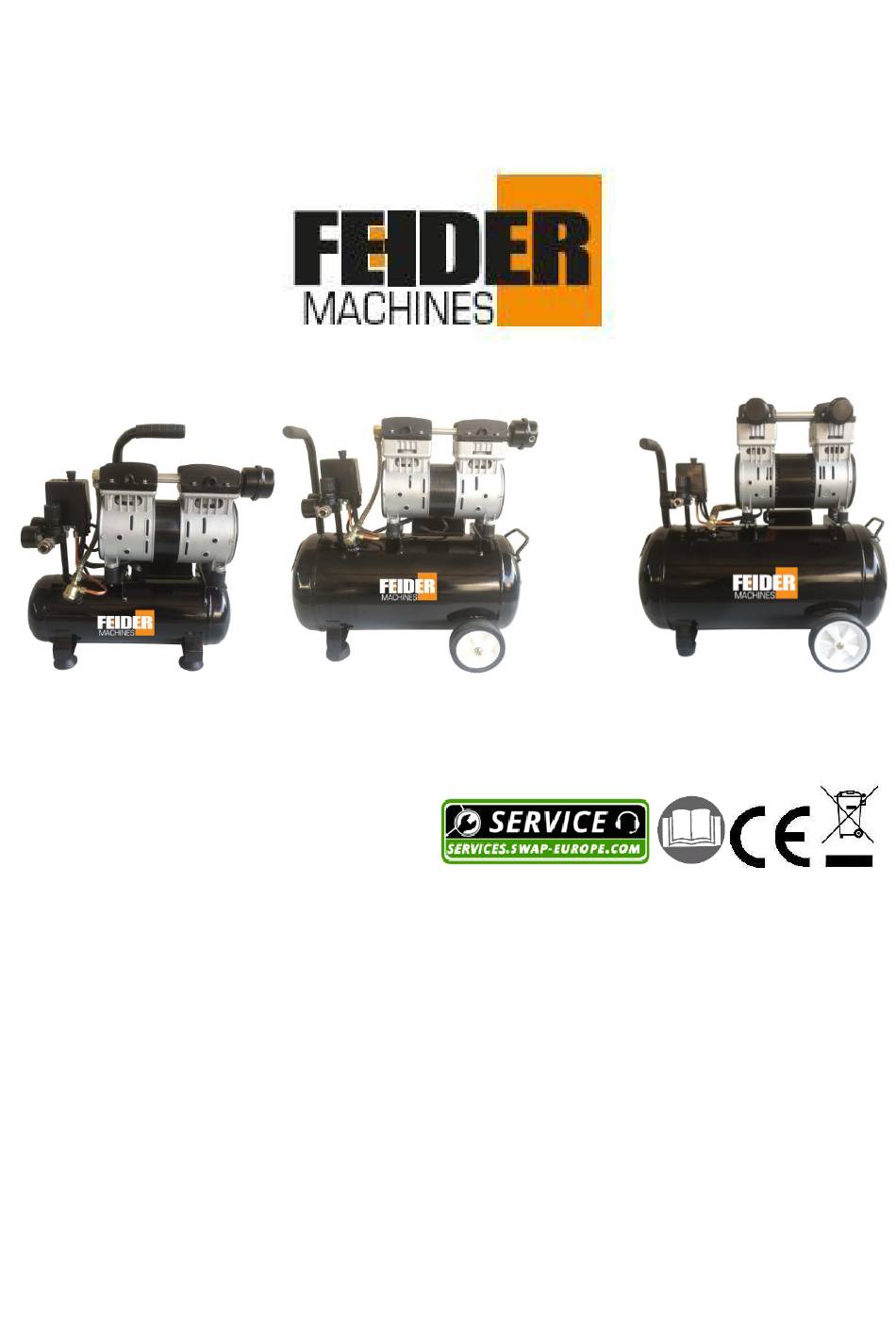

- Page 1 Original Instruction manual Oil free compressor FC50LS FC24LS FC6LS Feider France ZI – 32, rue Aristide Bergès, 31270 Cugnaux, France MADE IN RPC 2018 Warning: Please read the manual carefully before using this machine!
-
Page 2: Safety Symbols
1. SAFETY SYMBOLS Read this instruction manual Wear hearing protection. Risk of electric shock Do not open the valve before connecting the air hose. Do not use the machine with open or removed covers. Do not move it during operation. Danger - automatic control. -
Page 3: Machine Description
*Inspection hole is used for inspection and cleaning of the pressure tank - may only be performed by an authorized service centre. 3. SPECIFICATIONS Model FC6LS FC24LS FC50LS Rated voltage 220-230V~ 220-230V~ 220-230V~... -
Page 4: Spare Part
Max. output pressure 0.8Mpa (8 bars) 0.8Mpa (8 bars) 0.8Mpa (8 bars) Engine speed 1400/min 1400/min 1400/min Air-tank volume 24 l 50 l Suction power 89 l/min 125 l/min 180 l/min Oil lubrication Oil free Oil free Oil free Degree of protection IP20 IP20 IP20... -
Page 6: Conditions Of Use
6. CONDITIONS OF USE WARNING! PLEASE READ THE OPERATING INSTRUCTIONS! Read all instructions before operation. Pay special attention to safety instructions. FAILURE TO FOLLOW THE INSTRUCTIONS AND FAILURE TO RESPECT SECURITY MEASURES MAY RESULT IN DAMAGE OF THE PRODUCT OR SERIOUS INJURIES OR EVEN FATAL INJURY. If you notice any damage during transport or unpacking, notify your supplier immediately. -
Page 7: Safety Instructions
If the product is used for any purpose other than the intended purpose or if unauthorized modification is made, the statutory warranty and statutory responsibility for defects as well as any liability on the part of the manufacturer will be void. Do not overload! Use the product only for the powers it was designed for. -
Page 8: Air Nozzle
or remove this switch as serious damage to equipment or personal injury could result from too high an air pressure. MOTOR AND COMPRESSOR PUMP • Air compressors get hot while in operation. Never touch the motor, pressure piping or compressor. •... -
Page 9: In Case Of Fire
Always follow the principles of first aid in case of any injuries. • When an electric shock is caused, it is necessary more than anywhere else to put emphasis on safety and risk elimination for the rescuers. The affected person usually stays in contact with electrical equipment (source of injury) because of muscle spasms caused by the electric shock. -
Page 10: Package Contents
The concentration of processed gases that can displace breathing air shall be kept within acceptable levels. The user shall see the norm EN 12021 for acceptable levels of contaminants in breathing air. Separators, traps and draining facilities are required to process liquids produced by the compressor before putting the compressor unit into use as these are not supplied;... -
Page 11: Preparation For Operation
find air leak, release the pressure from the air nozzle and before further use secure a control and compressor repair at the authorized service center. CAUTION! Never use a compressor which has a compressed air leak! Move the machine only by lifting the handle, never by pulling hoses and cables attached. PREPARATION FOR OPERATION WARING! Compressor use, always store and transport in operating position (standing by supporting foot and... - Page 12 • Check if the condensate is drained from the air tank and drain plug is closed. • Check the condition of safety vent, air-tank and all pressure accessories. • If is the air filter dirty, you should replace or clean it. •...
-
Page 13: Air Filter Cleaning
THE CONTROL OF THE SAFETY VALVE Check the condition of the safety valve before each use. Make sure that the tank doesn’t include the pressure. Manometer (fig. 6E) should indicate 0 bar. Pull the ring several times (fig. 8). The pin should be moved loosely. If is the pin blocked inside the safety valve, don't use the machine and contact authorized service. - Page 14 • Replace worn or damaged parts for safety. • Store machine in a clean, dry, dark and frost-free place, protected from dust and out of reach of children. The ideal storage temperature is between 5 and 30°C. • Use the original packaging to storage whenever possible. •...
-
Page 15: Ec Declaration Of Conformity
Declaration of conformity FEIDER FRANCE ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: OIL FREE COMPRRESSOR Model: FC6LS, FC24LS, FC50LS Serial number: FC6LS: FC24LS: FC50LS: Complies with the provisions of the Directive « Machinery » 2006/42/EC and national laws transposing it:...
