Summary of Contents for Ecomatik T-Soil

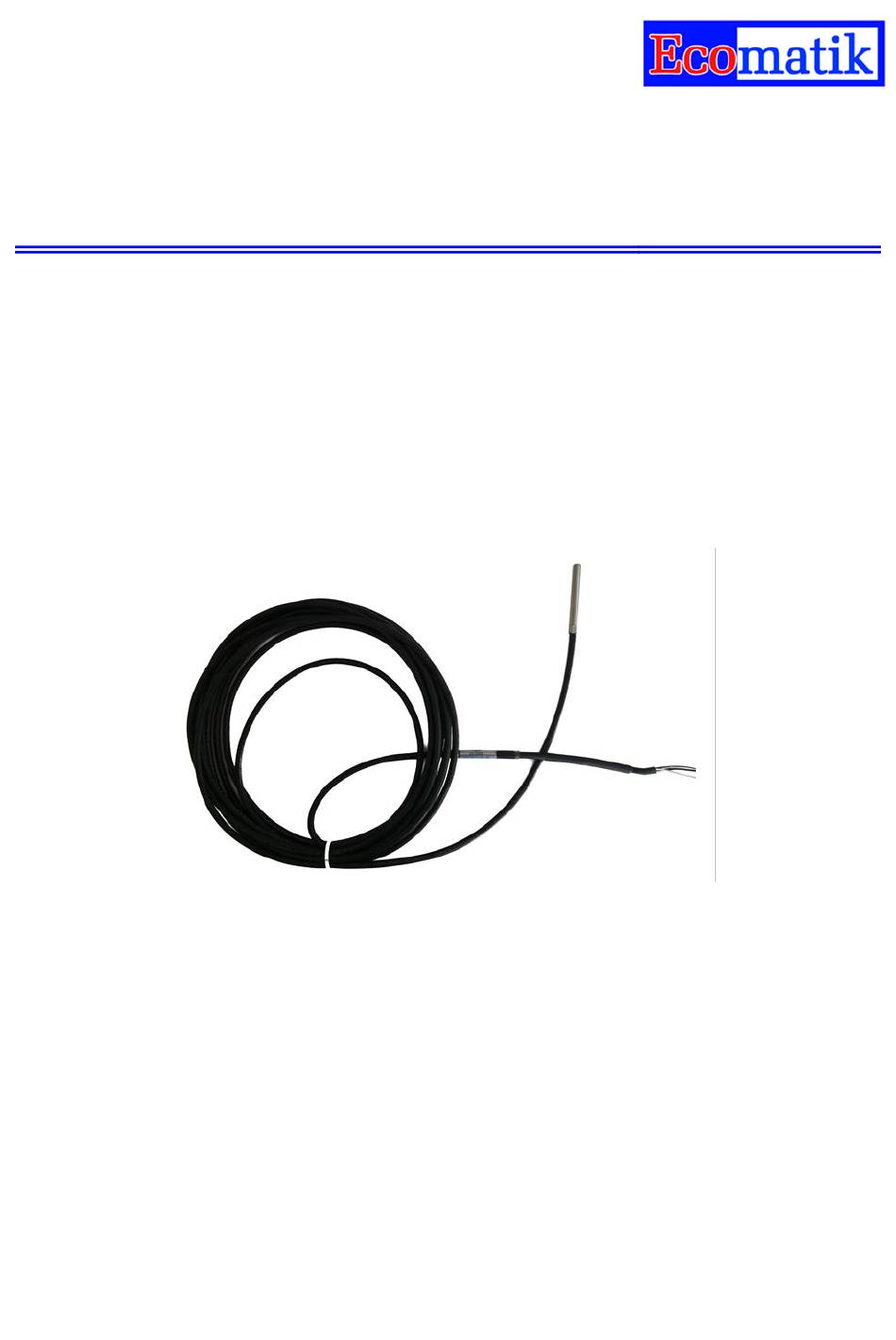

- Page 1 ECOMATIK GmbH Temperature Muenchner Str. 23 D-85221 Dachau/Germany Tel.: +49 8131 260 738 Fax: +49 8131 260 736 e-mail: info@ecomatik.de website: www.ecomatik.de Soil Temperature Sensor (T-Soil) User Manual Version 2020...
-
Page 2: Product Description
The T-Soil is the sensor part of the measuring system. This means that the T-Soil sensor must be installed into the soil or underwater, and connected to a data logger for continu- ous data recording. - Page 3 In case you need further assistance for installation, please do not hesitate to contact us. 4. Wiring and Logger Configuration The T-Soil sensor is compatible with our DL 18 data logger (ordered with stereo plug), as well as with a wide range of other available data loggers, e.g. CR1000(ordered with bare cable ends).
- Page 4 Ordered with stereo plug connector, the T-Soil is compatible with our DL 18 data logger. Each T-Soil sensor requires one of the four channels of the DL 18. For further information on DL 18 configuration for T-Soil sensors, please refer to our DL18 manual.
-
Page 5: Technical Specifications
T-Soil Sensor 6. Technical Specifications Name T-Soil Application Soil temperature Range of the sensor -40 to 70°C Accuracy +/- 0.2 °C Resolution Theoretically infinite, depends on data logger Size and weight Cylindric, length 50 mm, diameter 6mm, 5g (only sensor tip without cable)
