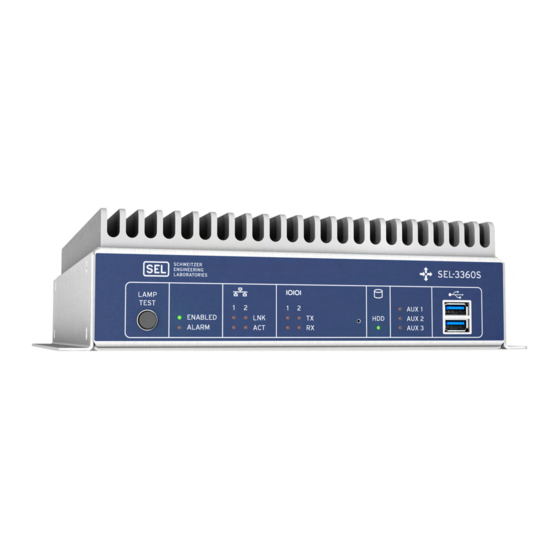

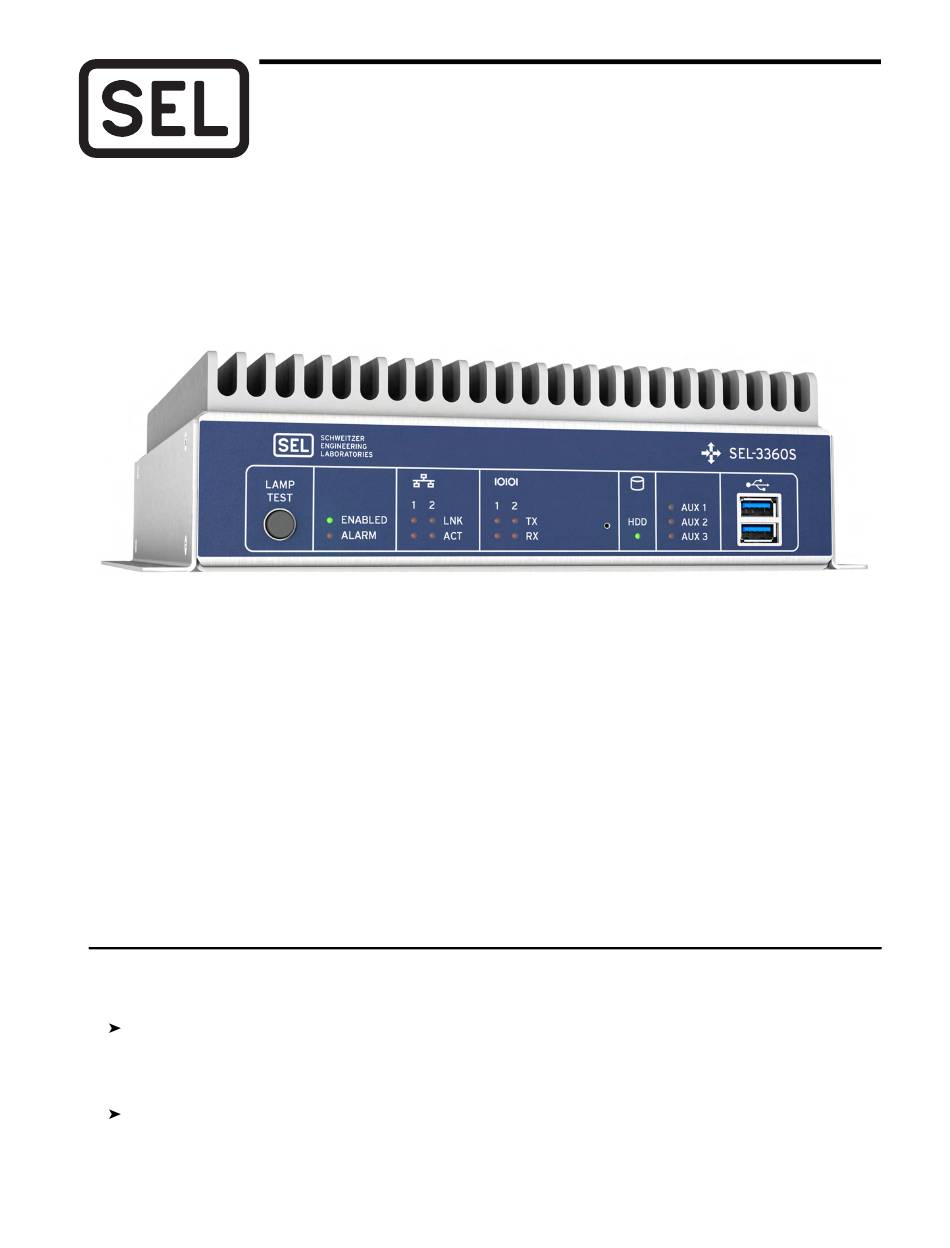

SEL-3360-2 Compact Industrial
Automation Controller
Improve Reliability, Availability, and
Serviceability With a Rugged, Compact
Industrial Automation Controller
The SEL-3360-2 Compact Industrial Automation Controller uses a high-performance x86-64 architecture
processor to support modern operating systems like Microsoft Windows and Linux. The extremely rugged
SEL hardware of the SEL-3360-2 enables you to use your choice of automation controller operating system
and software in very harsh environments not suitable for general purpose computers.
Integrate the SEL-3360-2 in computing applications that demand high performance, reliability, and low
maintenance in extreme, harsh environments. The SEL-3360-2 offers a mean time between failure (MTBF)
of at least ten times that of typical industrial automation controllers by eliminating all moving parts, including
rotating hard drives and fans; using high-quality solid-state drives; and by using error-correcting memory
technology. By eliminating vent holes, the SEL-3360-2 significantly reduces dust buildup and foreign con-
taminants. Power the SEL-3360-2 from 12 Vdc power sources with voltage ranging from 10.0–16.6 Vdc,
enabling simple integration with common power sources and battery-powered systems with high float-charge
levels. You can install software from SEL and third-party software vendors to customize the SEL-3360-2 for
your specific applications. Every SEL-3360-2 comes with the unprecedented ten-year, worldwide SEL war-
ranty.
Major Features and Benefits
The SEL-3360-2 provides a rugged, easy-to-use automation controller platform for substation, industrial, or
other harsh environments.
x86-64 Architecture. The SEL-3360-2 uses the Intel Xeon E3 microprocessor architecture to deliver
very high performance and broad operating system and software compatibility. Multiple processor
cores and Intel Hyper-Threading Technology enable you to run multiple time-critical applications
simultaneously. Choose between 2.0 GHz and 2.8 GHz quad-core CPU options.
Operating System Choices. The SEL-3360-2 may be purchased as hardware only, or with a variety of
modern Microsoft Windows operating systems to provide extreme flexibility and functionality along
with enhanced security features.
Schweitzer Engineering Laboratories, Inc.
SEL-3360-2 Data Sheet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEL-3360-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sel SEL-3360-2

  • Page 1 Microsoft Windows and Linux. The extremely rugged SEL hardware of the SEL-3360-2 enables you to use your choice of automation controller operating system and software in very harsh environments not suitable for general purpose computers.
  • Page 2 I/O—all with protection against electrical shock and surge. Power Supply. The SEL-3360S-2 can be powered from any 12 Vdc source, such as the robust, reliable SEL-9331 power supply module. The SEL-3360E-2 has an integral power supply that can be powered from low- and high-voltage ac and dc power sources.
  • Page 3: Functional Overview

    SEL-2725 Five-Port Ethernet Switch Outdoor Control Cabinet SCADA Figure 1 SEL-3360-2 in Monitoring and Control Applications Watchdog Functionality Time The COM 1 serial port accepts IRIG-B time-code input for An embedded controller provides an extra level of auto- mation controller system reliability. One function of the precise time input from a GPS clock or other source.
  • Page 4: Security Applications

    Virtualization for HMI and Other Security Applications Applications Improve security with a single sign-on, enabled through using the SEL-3360-2 as a local Lightweight Directory Access Protocol (LDAP) server. Centrally manage user accounts and Application group memberships with Microsoft Active Directory or with...
  • Page 5: Front- And Rear-Panel Diagrams

    HDD Activity Indicator. Illuminates when SATA drives are accessed. u AUXILIARY Status Indicators. Three programmable, bicolor LEDs for your custom application. i USB Ports. Two easily accessible ports to connect USB 3.1 peripherals. Figure 7 Front-Panel Diagram Schweitzer Engineering Laboratories, Inc. SEL-3360-2 Data Sheet...
  • Page 6 POWER Input Terminals. The rated input voltage is clearly marked on the chassis near the terminals. o ALARM. The Form C alarm contact output enables both normally closed and normally open wiring connections. a PCI Expansion Slots. Install SEL or third-party PCI Express expansion cards for additional network, serial, or other application-specific I/O.
  • Page 7: Product Dimensions

    Product Dimensions CHASSIS WITH CHASSIS WITH STANDARD HEATSINK CONDUCTION-COOLED HEATSINK (mm) Figure 9 SEL-3360S Dimensions Diagram CHASSIS WITH CHASSIS WITH STANDARD HEATSINK CONDUCTION-COOLED HEATSINK (mm) Figure 10 SEL-3360E Dimensions Diagram Schweitzer Engineering Laboratories, Inc. SEL-3360-2 Data Sheet...
  • Page 8: Specifications

    CentOS Linux 7 Operating Environment Red Hat Enterprise Linux 6 Red Hat Enterprise Linux 7 Operating Temperature Range VMware ESXi (Contact SEL for hardware adn version SEL-3360S-2 With compatibility) E3-1505L CPU: –40° to +75°C (–40° to +167°F) * Orderable as a factory-installed option.
  • Page 9: Peripheral Connections

    1920 x 1200 @ 60 Hz (three displays) information. Cable length < 10 m for Surge Immunity compliance. Note: Outputs generated from either IRIG-B input or SEL-3360-2 clock. *High-resolution displays require high-quality cables. Ensure your display cables are as short as possible and rated for the required Power Supply screen resolution.
  • Page 10: Contact Inputs And Outputs

    270 Vac/360 Vdc, 75 J IEC 61010-2-201:2013 Insulation Voltage: 300 Vac/Vdc UL 61010-2-201:2017, C22.2 No. 61010-2-201:14 Pickup Time: <8 ms Measuring Relays and IEC 60255-26:2013 Dropout Time: <8 ms Protection Equipment: IEC 60255-27:2013 SEL-3360-2 Data Sheet Schweitzer Engineering Laboratories, Inc.
  • Page 11 2 kV line-to-earth 2 kV communications ports Environmental Change of Temperature: IEC 60068-2-14:2009 Severity Level: 5 cycles, 1°C per minute ramp SEL-3360S-2 With E3-1505L CPU: –40°C to +75°C SEL-3360S-2 With E3-1505M CPU: –40°C to +60°C Schweitzer Engineering Laboratories, Inc. SEL-3360-2 Data Sheet...
  • Page 12: Current Limit

    2350 NE Hopkins Court • Pullman, WA 99163-5603 U.S.A. trademark of their respective holders. No SEL trademarks may be used without written Tel: +1.509.332.1890 • Fax: +1.509.332.7990 permission. SEL products appearing in this document may be covered by U.S. and Foreign selinc.com • info@selinc.com patents.
