Summary of Contents for Seconique LUDLOW LAMP TABLE WHITE GLOSS

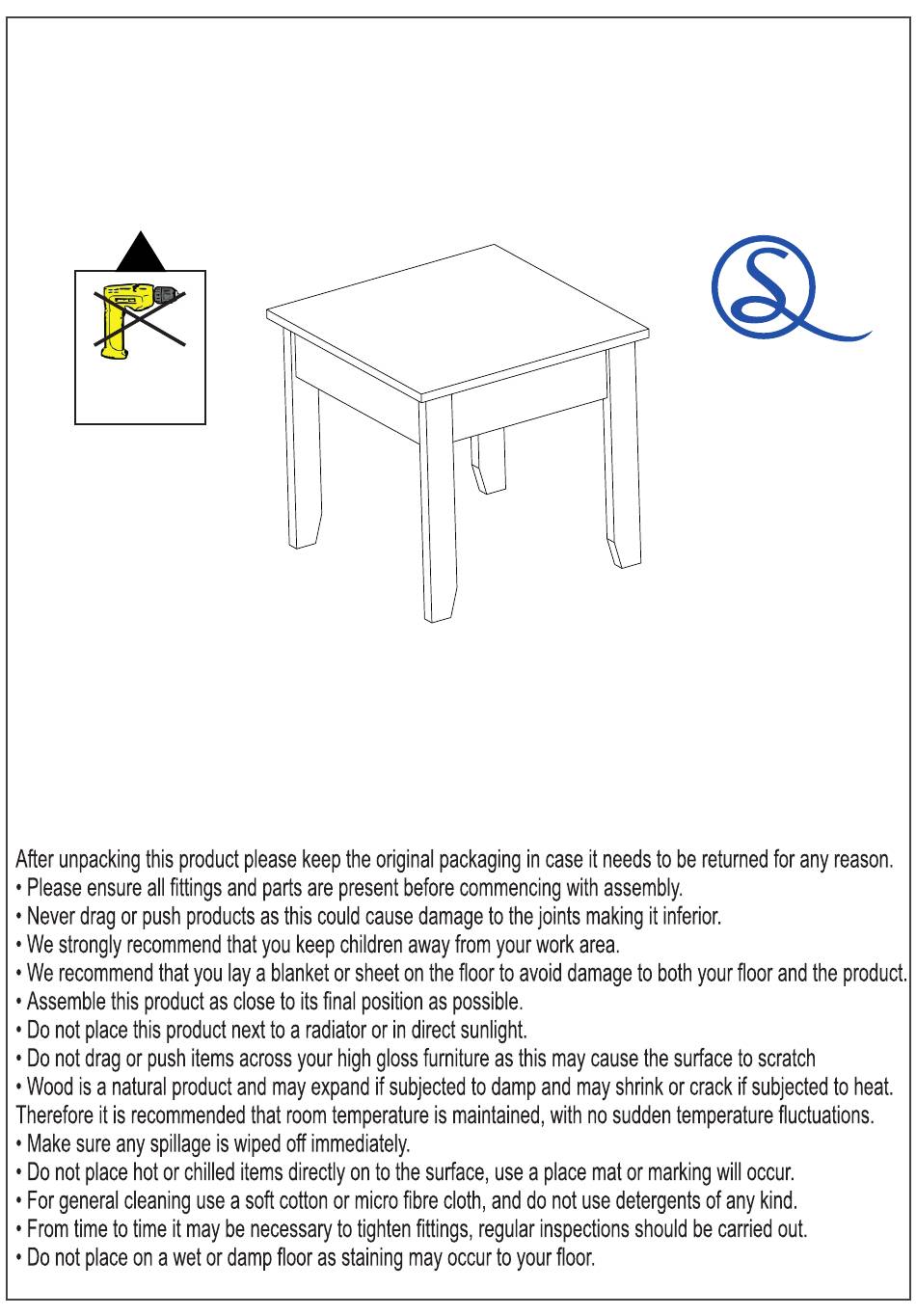

- Page 1 SEC/SH/10/20/DC2 LUDLOW LAMP TABLE WHITE GLOSS ASSEMBLY INSTRUCTIONS DO NOT IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER CARE AND MAINTENANCE PAGE 01...
- Page 2 SEC/SH/10/20/DC2 TOOLS REQUIRED Please Note: The below parts have been stamped with the part number to help identify them during assembly. Part Number Part Code Carton Part Description Quantity Right Leg S300-302-027-DC1-01 Le Leg S300-302-027-DC1-02 S300-302-027-DC1-03 Large Side (400mm) Small Side (330mm) S300-302-027-DC1-04 Top Panel S300-302-027-DC1-05...
- Page 3 SEC/SH/10/20/DC2 STEP 2 STEP 1 PARTS REQUIRED LARGE SIDE (400mm) SMALL SIDE (330mm) HARDWARE REQUIRED Ø8 x 30 TOOLS REQUIRED Glue must be added to the Glue must be added to the dowel holes on part dowel holes on part 3 & 4 STEP 3 STEP 2 PARTS REQUIRED...
- Page 4 SEC/SH/10/20/DC2 STEP 3 PARTS REQUIRED 330mm RIGHT LEG LEFT LEG SMALL SIDE (330mm) HARDWARE REQUIRED TOOLS REQUIRED Please refer to page 3 on how Glue must be added to the to use cams dowel holes on part 1 & 2 correctly.
- Page 5 SEC/SH/10/20/DC2 STEP 5 PARTS REQUIRED TOP PANEL HARDWARE REQUIRED TOOLS REQUIRED STEP 6 PARTS REQUIRED TOP PANEL HARDWARE REQUIRED Please refer to page 3 on how TOOLS REQUIRED to use cams Glue must be added to the dowel holes on part correctly.
