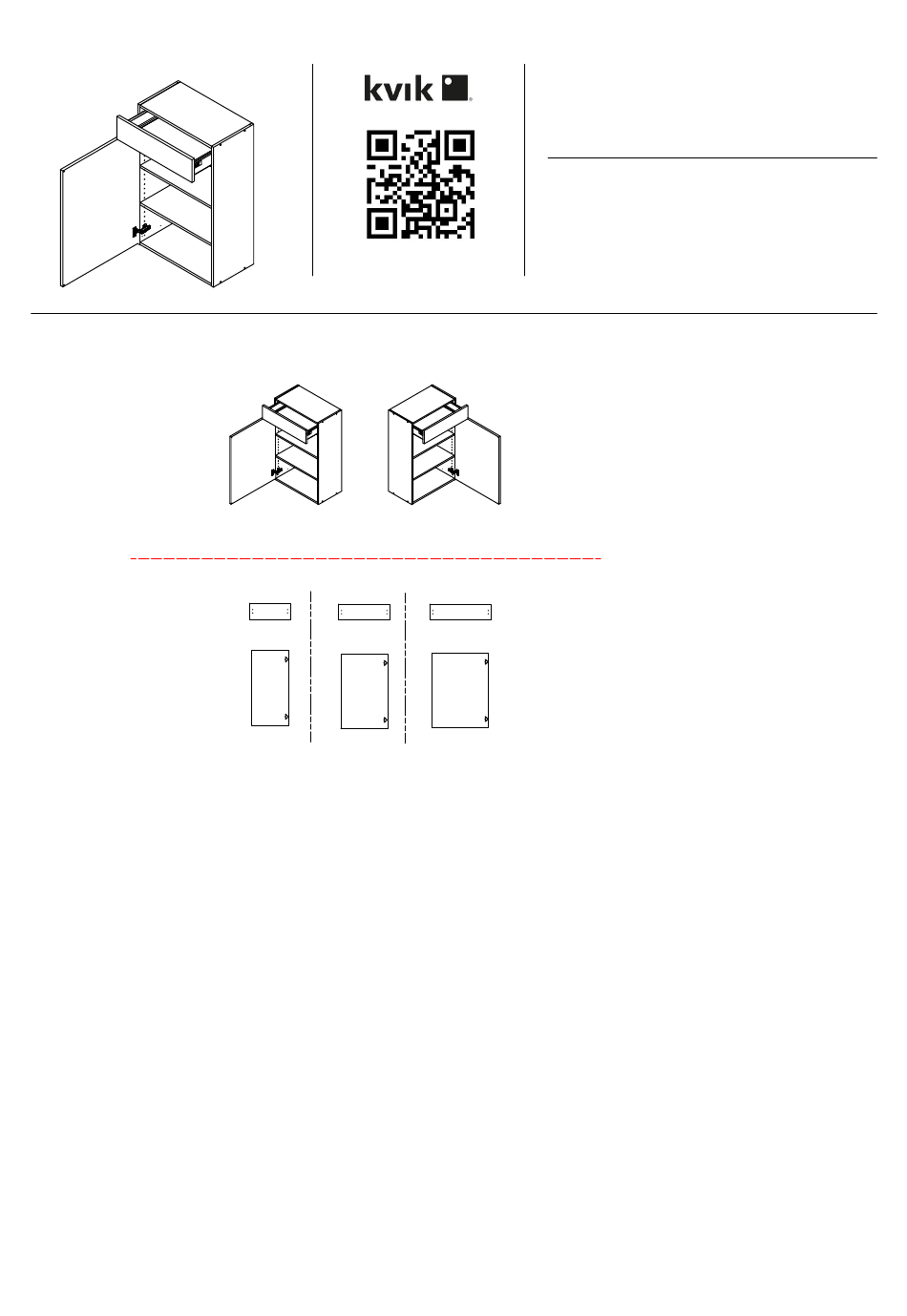

- Page 1 O946 Check out easy mounting of your kitchen Right Left Front without integrated handle L01640 L01650 L01660 L08040 L08050 L08060 40 cm 50 cm 60 cm 03-02-2021 1a...
- Page 2 O946 Check out easy mounting of your kitchen DO96,060,000 (Base-top) (Side) (Shelf) (Back panel) 2 pcs 2 pcs 2 pcs (Suspension list) 1 pcs 1 pcs BP00417 Drawer slide left BP00518 Drawer slide right Mounting plate Hinge 107 degrees 2 pcs...
-
Page 3: Side Left
O946 FIG. Side Left Euro screw 6,3x11 mm 2 pcs (Side) Euro screw 6,3x11 mm Screw flh 3,5x15 mm 3 pcs Drawer slide left 1 pcs FIG. Side Right Euro screw 6,3x11 mm 2 pcs (Side) Euro screw 6,3x11 mm... - Page 4 O946 FIG. (Suspension list) (Base-top) NB!!! (Base-top) (Side) FIG. (Back panel) 03-02-2021 1a...
- Page 5 O946 FIG. Screw flh 3,5x45 mm 4 pcs (Side) FIG. Screw flh 3,5x45 mm 4 pcs 03-02-2021 1a...
- Page 6 O946 FIG. Screw flh 3,5x15 mm 4 pcs Angle 45x55x30x2 mm 2 pcs FIG. Shelf support 5x7 mm Plast 8 pcs 03-02-2021 1a...
- Page 7 O946 FIG. (Shelf) 2 pcs (Shelf) (Shelf) FIG. Click BP00518 Hinge 107 degrees 2 pcs BP00417 Mounting plate 2 pcs Bumper 7x1,5 mm L080*0 Door L080*0 Door Bumper 7x1,5 mm 03-02-2021 1a...
- Page 8 O946 FIG. Right Left L080*0 L080*0 FIG. 03-02-2021 1a...
- Page 9 O946 Adjustment Installation, please read instruction SV12224 SV12224 How to wall mount a cabinet 19-12-2019 1a 03-02-2021 1a...
