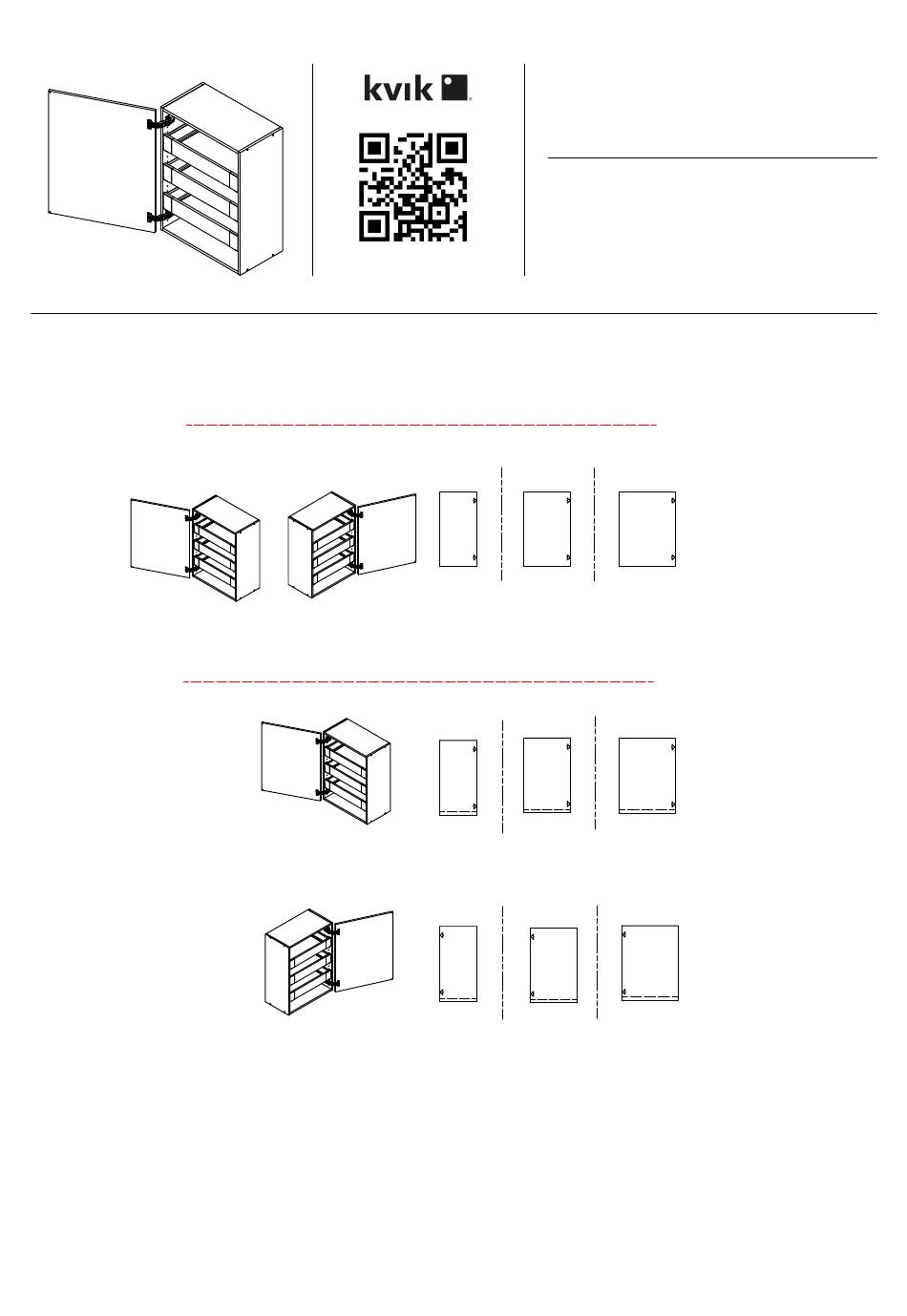

21-02-2020 1a
/
Check out easy
mounting of your kitchen
Front without integrated handle
Right
Front with integrated handle
Left
O820
L08040
L08050
50 cm
40 cm
L08042
L08052
40 cm
50 cm
L08043
L08053
40 cm
50 cm
L08060
60 cm
L08062
60 cm
L08063
60 cm
1 /
9
