ITS Telecom EKSELANS CAP1 User Manual

ITS Telecom EKSELANS CAP1 User Manual

Controller for access point

Advertisement

Quick Links

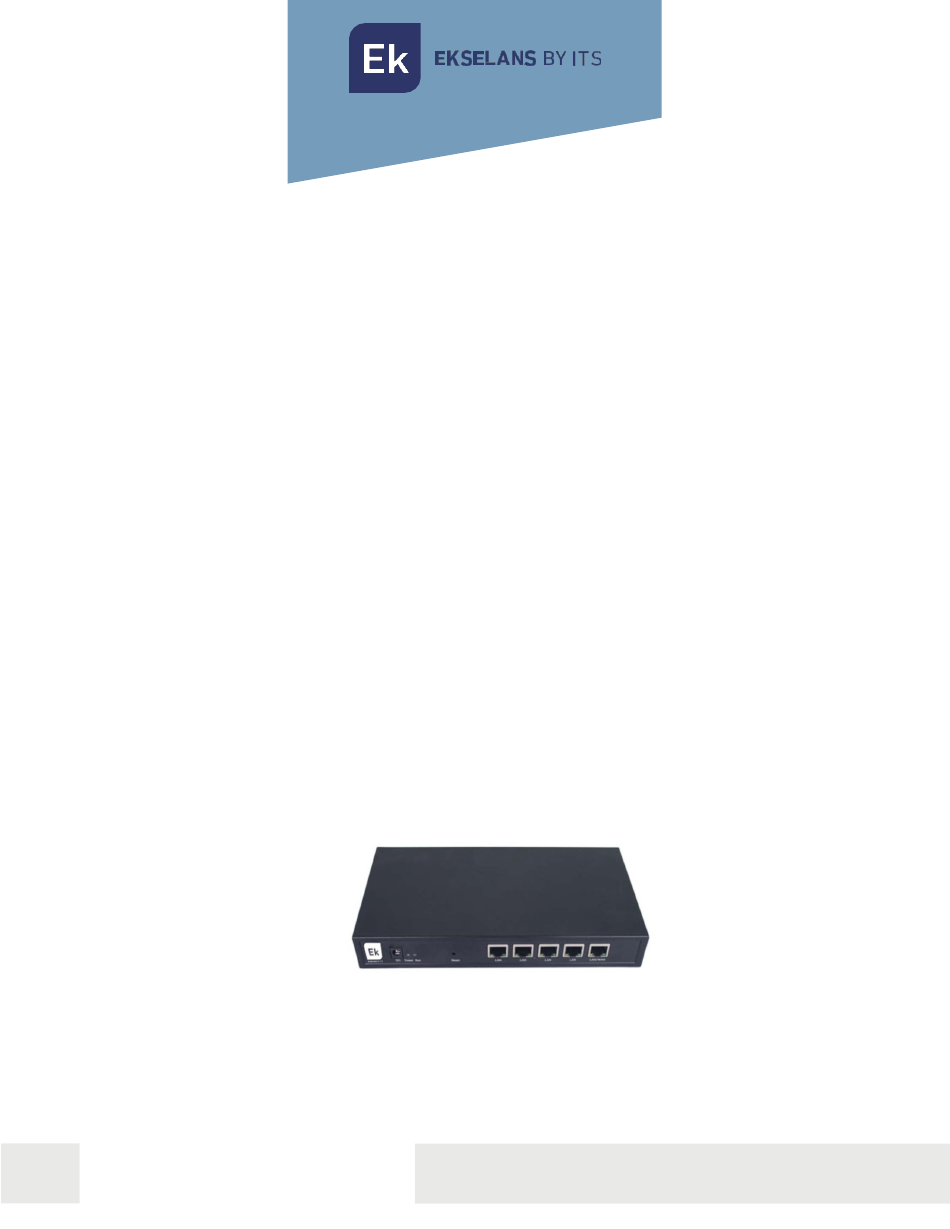

USER MANUAL
CAP1
Controller for access point
V03
ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: +34935839543 · info@ek.plus · www.ek.plus

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EKSELANS CAP1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ITS Telecom EKSELANS CAP1

  • Page 1 USER MANUAL CAP1 Controller for access point ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
  • Page 2: Table Of Contents

    USER MANUAL CAP 1 TABLE OF CONTENTS Hardware............................................... 3 Example of installation diagram ....................................3 Access to CAP 1 ............................................4 CAP 1 web interface..........................................5 Team list ..............................................6 Device group ............................................11 Zero Configuration ........................................12 Team group ............................................13 Server address ..........................................
  • Page 3: Hardware

    USER MANUAL CAP 1 Hardware • RESET: Reset button. Press for 15 seconds for the device to restore to factory settings. • WAN: WAN port. Connect to the internet provider's router. • LAN: LAN port. • DC: DC power supply. Example of installation diagram ITS Partner O.B.S S.L ·...
  • Page 4: Access To Cap 1

    USER MANUAL CAP 1 Access to CAP 1 To access the CAP 1 follow the next steps: Connect to CAP 1 with a network cable or wireless configuration (with an AP), you always must be connected to its LAN port. Configure your PC's network adapter with a static IP. In order to make the configuration easy EK have the application Ek NET Adapter, you will be able configure...
  • Page 5: Cap 1 Web Interface

    USER MANUAL CAP 1 CAP 1 web interface Once the password is entered, the following window will appear. Then, it shows to us the next areas: Language selection. Spanish/Italian by default is configured for these two languages. The English version is available on the website ek.plus. Displays the RAM and CPU occupancy information for CAP 1.
  • Page 6: Team List

    USER MANUAL CAP 1 Team list This section shows all APs connected to CAP 1. Displays information regarding APs: • SN: ID assigned to the AP by the CAP 1. • Location: AP location identified by the client. • Name: AP Name. •...
  • Page 7 USER MANUAL CAP 1 After pressing the CONFIG button on the desired AP, open a new window to configure the AP in question: “Device Status" shows us relevant information about the AP: • Model: Product name. • Online Time: Shows how long the AP takes on. •...
  • Page 8 USER MANUAL CAP 1 “Network Status" allows you to configure how the AP obtains IP: • DHCP: Gets the DHCP IP automatically from CAP 1. • Static IP: Allows you to manually assign the desired IP to the AP. The "Wireless" menu allows you to configure the basic options: •...
  • Page 9 USER MANUAL CAP 1 • Wireless Security: Displays the assigned security. To see more details and configure it, click on the "Config" button. A new window will open to set up wireless security. • VLAN: Allows you to assign a VLAN to the SSID. The "Advanced"...
  • Page 10 USER MANUAL CAP 1 • Beacon interval: Interval for "beacon". The "beacon" is a packet that is sent to the client computer to notify if it is connected. If the time is reduced, more packets will be sent making the network slower. And if the value is too high, this will cause the equipment to disconnect more frequently.
  • Page 11: Device Group

    USER MANUAL CAP 1 Device group This section lists all groups created in CAP 1. A group contains multiple APs that are set to the same setting. New: Opens the window so that you can configure the group settings. The form is the same as in section 2 of "TeamsList".
  • Page 12: Zero Configuration

    USER MANUAL CAP 1 Zero Configuration This feature allows, before connecting any APs to CAP 1, to create a default configuration. Only one Zero configuration can exist and once all the APs connecting to CAP 1 are created, they will pick up this default configuration.
  • Page 13: Team Group

    USER MANUAL CAP 1 Team group This section shows the log of activity events for access points. Date, team ID and MAC are displayed for each event that happens: • On/ Off • Deployment and configuration of APs. • Errors The "Clean Up"...
  • Page 14: Server Address

    USER MANUAL CAP 1 Server address This section configures the DHCP that will assign IPs to the different APs that connect to CAP 1. Server: Displays the initial IP for DHCP as well as the IP that will link between the APs and CAP 1 (IP Server is a second IP for CAP 1 in the range that the APs will be).
  • Page 15: Gateway

    USER MANUAL CAP 1 Gateway Menu: The different sections for the gateway are shown: Status, Network, Firewall and Management. Panel: Depending on the option you select the panel is loaded with the relevant options. Sub Menu: This section will show the different sub-menus of the selected menu. ITS Partner O.B.S S.L ·...
  • Page 16: State

    USER MANUAL CAP 1 State Basic CAP 1 information is displayed. Information on the LAN of CAP 1 is displayed. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
  • Page 17: Wan

    USER MANUAL CAP 1 Information about the WAN of CAP 1 is displayed. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
  • Page 18: Network

    USER MANUAL CAP 1 NETWORK LAN IP Configuration: Allows you to configure the IP and subnet mask of CAP 1. DHCP Server Configuration: Allows you to enable or disable DHCP. Configure the initial DHCP IP and the final IP. Assigned IP-MAC List: Allows you to assign fixed IPs to a MAC. This way the MAC will always have the same IP, which is an ideal option to apply the QoS feature.
  • Page 19: Wan

    USER MANUAL CAP 1 WAN configuration: CAP 1 allows you to configure the WAN port in different ways: static IP, DHCP, PPPoE. Static IP: This section will change depending on the WAN configuration defined. PPPoE will request the data relevant to your configuration. Static IP will request the necessary data: IP, Subnet Mask Advanced configuration: •...
  • Page 20: Authentication

    USER MANUAL CAP 1 Authentication This section activates the simple captive portal that allows CAP 1. To activate the portal, authentication must be set to "local authentication”. • Maximum users: Maximum number of authentications allowed by the portal. • External domain White list: Whitelisting of domains that can be accessed without authentication.
  • Page 21: Local Auth

    USER MANUAL CAP 1 Local Auth In this section you can configure the portal page. The portal consists of a "slide show" with 3 images and 3 buttons: • Advertising pictures: Select the position of the image you want to change, select the file and press "Update Pictures”.
  • Page 22: Firewall

    USER MANUAL CAP 1 Firewall IP Filter/Port Allow to us add up to 200 rules • IP filtering: Determines whether to accept or deny packets from that port. • IP Range: Range of IPs to which the filter will be applied. •...
  • Page 23: Mac Filtering

    USER MANUAL CAP 1 MAC filtering The MAC Filter allows you to authorize or deny devices identified by the MAC. URL filtering The URL Filter allows you to deny all those URLs added. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·...
  • Page 24: Dmz

    USER MANUAL CAP 1 The DMZ allows you to redirect all port requests to a given IP. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
  • Page 25: Open Ports

    USER MANUAL CAP 1 Open ports In this section it is possible to open certain ports to the IPs of the desired devices. This allows certain services on the assigned devices to be viewed from the CAP 1 WAN. • Rule name: Name to identify the rule.
  • Page 26: Management

    USER MANUAL CAP 1 Management System In this section it is possible to export the configuration of the CAP 1 as well as restore it. You can also set the computer to factory defaults. User Allows you to configure the user and password to access CAP 1. ITS Partner O.B.S S.L ·...
  • Page 27: Qos Bandwidth Configuration

    USER MANUAL CAP 1 QoS Bandwidth Configuration QoS configuration: CAP 1 allows you to limit the bandwidth available to connected clients. The image has been indicated 50MB, so customers will have a maximum of 50MB. QoS rules: Create and allocate bandwidths to customers: •...
  • Page 28: Records

    USER MANUAL CAP 1 Records Displays all CAP 1 events and events. It is possible to log events to an external server by entering the IP and clicking "Apply". Firmware Select the file with which to update the firmware of the CAP 1 and click "Update”. ITS Partner O.B.S S.L ·...
  • Page 29: Time Zone

    USER MANUAL CAP 1 Time zone Allows you to manage the time zone of CAP 1. It also allows you to assign a daily reset time to CAP 1. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·...
