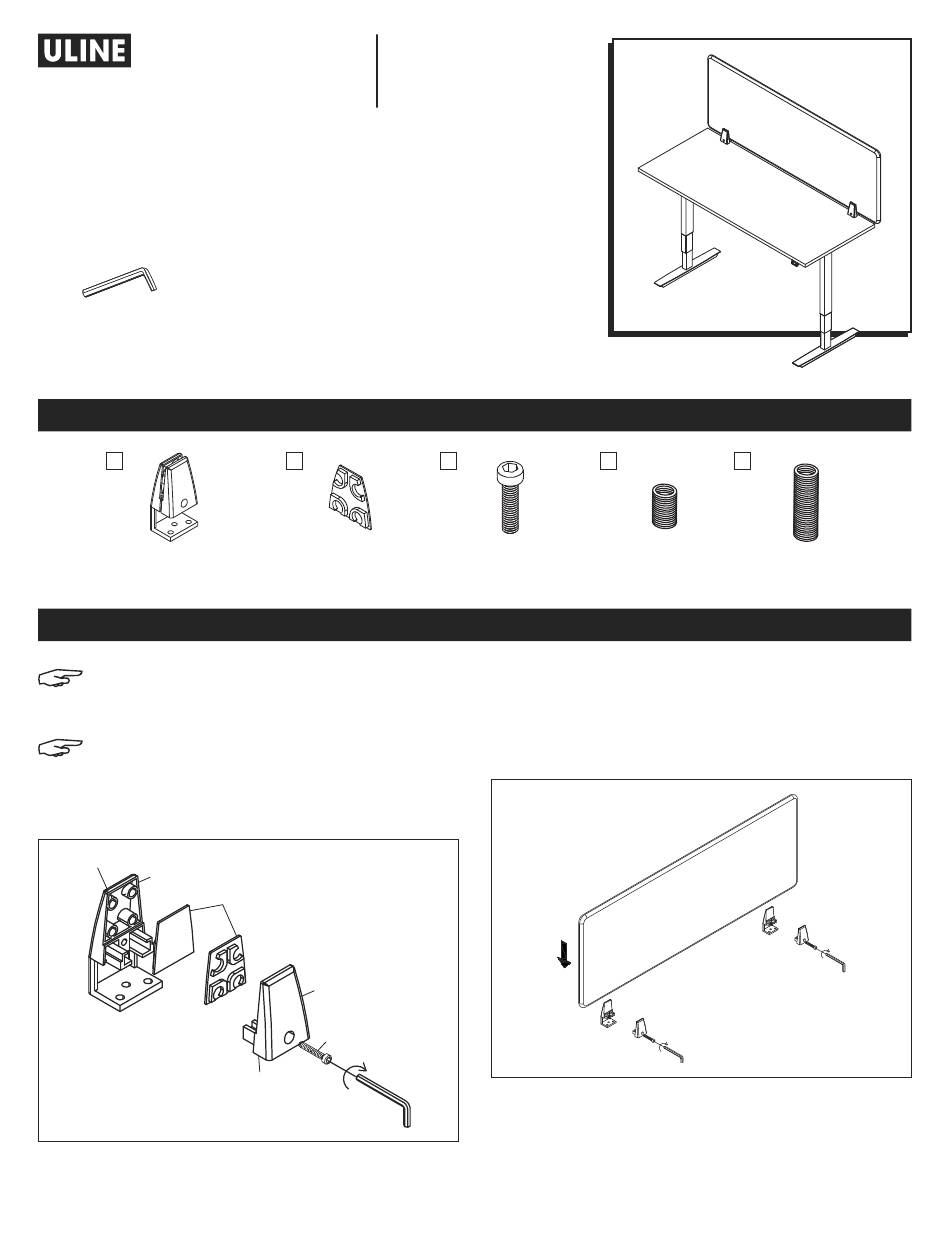

H-8379, H-8380

PRIVACY PANEL

TOOLS INCLUDED

3 mm Allen Wrench
5 mm Allen Wrench
A
Mounting Bracket x 2
NOTE: Privacy panel includes mounting
brackets (A) in black and in silver for use with
desk frames of either color.
NOTE: Check that all parts are included.
1.
Separate mounting bracket (A). Firmly press one
plastic mat (B) into each side of mounting bracket.
Repeat for remaining brackets. (See Figure 1)
Back
A
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
B
Plastic Mat x 4
B
A
C
Front

PARTS

C
Screw x 2
M6 x 30 mm

ASSEMBLY

2. Place privacy panel against plastic mat (B) in back
half of mounting bracket (A), slide front of mounting
bracket (A) in place and use 5 mm Allen wrench
to secure one M6 x 30 mm screw (C). Repeat for
remaining bracket. (See Figure 2)
Figure 2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
D
E
Screw x 6
Screw x 6
M6 x 8 mm
M6 x 15 mm
0721 IH-8379

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-8379 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-8379

Summary of Contents for U-Line H-8379

  • Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-8379, H-8380 1-800-295-5510 uline.com PRIVACY PANEL TOOLS INCLUDED 3 mm Allen Wrench 5 mm Allen Wrench PARTS Mounting Bracket x 2 Plastic Mat x 4 Screw x 2...
  • Page 2 ASSEMBLY CONTINUED 3. Slide mounting bracket (A) onto tabletop edge. Use NOTE: For 1" tabletops, use M6 x 8 mm three M6 screws (D or E) to secure. Tighten screws screws (D). For 3/4" tabletops, use M6 x 15 mm under tabletop with 3 mm Allen wrench.
  • Page 3 H-8379, H-8380 800-295-5510 uline.mx PANEL DE PRIVACIDAD HERRAMIENTAS INCLUIDAS Llave Allen de 3 mm Llave Allen de 5 mm PARTES 2 Soportes de 4 Almohadillas de 2 Tornillos 6 Tornillos 6 Tornillos Instalación Plástico M6 x 30 mm M6 x 8 mm...
  • Page 4 CONTINUACIÓN DEL ENSAMBLE 3. Deslice el soporte de instalación (A) en el borde NOTA: Para las cubiertas de 1", use los tornillos de la mesa. Use tres tornillos M6 (D o E) para fijarlos. de M6 x 8 mm (D). Para las cubiertas de 3/4", Apriete los tornillos debajo de la mesa con la llave use los tornillos de M6 x 15 mm (E).
  • Page 5 H-8379, H-8380 1-800-295-5510 uline.ca PANNEAU DE SÉPARATION OUTILS INCLUS Clé Allen de 3 mm Clé Allen de 5 mm PIÈCES Support de fixation x 2 Couche de plastique x 4 Vis x 2 Vis x 6 Vis x 6 M6 x 30 mm...
  • Page 6 MONTAGE SUITE 3. Faites glisser le support de fixation (A) sur le rebord REMARQUE : Pour les surfaces de table de 1 po, de la table. Fixez avec trois vis M6 (D ou E). Serrez les utilisez les vis M6 x 8 mm (D). Pour les surfaces vis sous la surface de table avec une clé...

This manual is also suitable for:

H-8380
