U-Line H-7595 Manual

H-7595
PACKING TABLE
FILE DRAWER

TOOLS NEEDED

Flathead Screwdriver Phillips Screwdriver
7/16" Wrench Drill and 5/32" Drill Bit
(if attaching to wood top)

ATTACHING TO STEEL TOP

NOTE: Mounting channels are included with
the steel top. Channels may extend past the
drawer assembly.
Mounting Channels

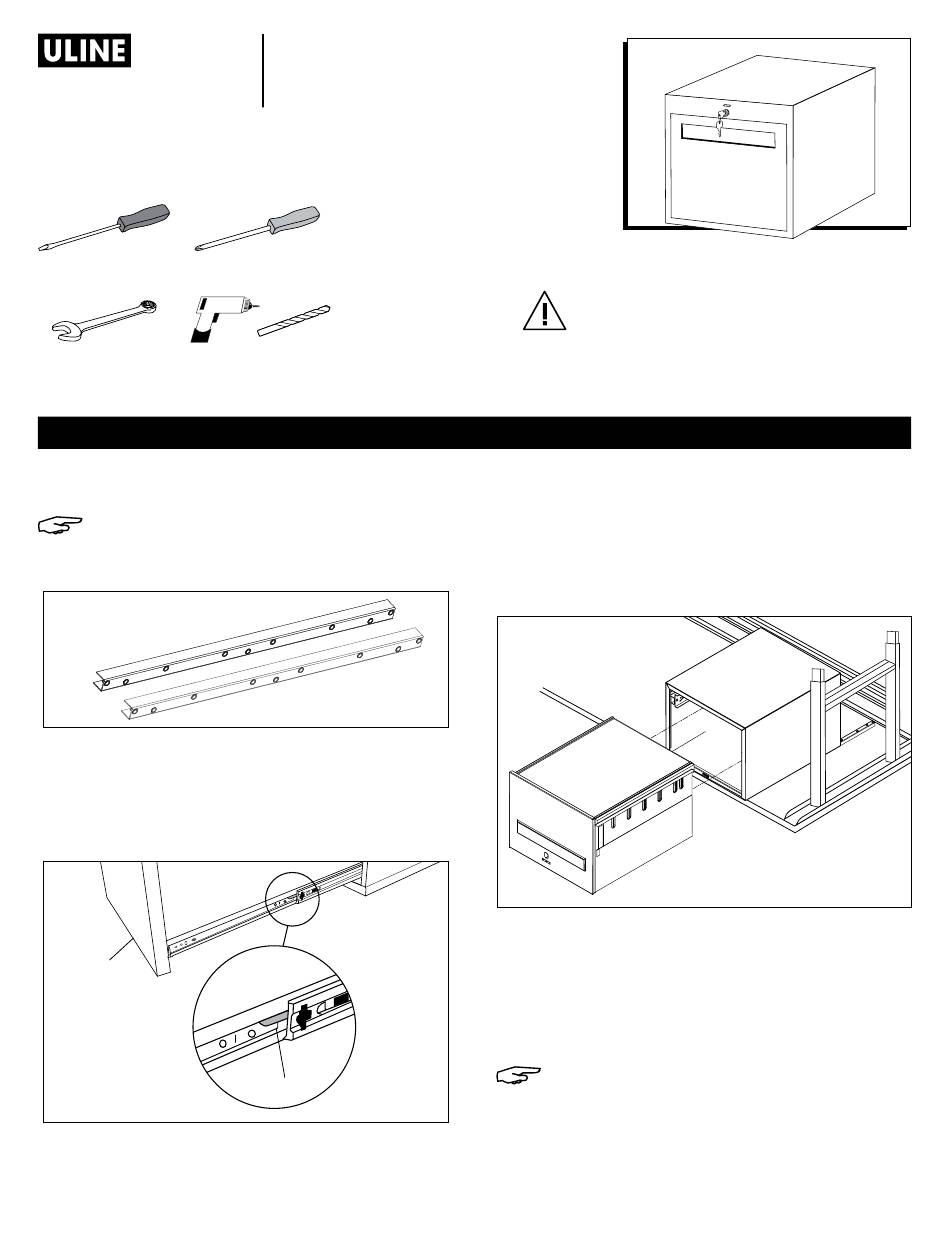

1. To free drawer from housing, fully extend the drawer
from the housing. Flip one plastic tab on the sliding
rails up and the second plastic tab on the sliding
rails down. Drawer is now unlocked from housing
and can be removed. (See Figure 1)
Drawer
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com

ASSEMBLY

Tab
Pour le français, consulter les pages 5-6.
CAUTION! Some parts may have sharp
edges. Care must be taken when handling
pieces to avoid injury. For your safety, wear
a pair of work gloves when assembling.
2. Turn the packing table over. On the underside of
the table, slide mounting channels front to back
into table flanges. When channels are aligned,
mounting holes should be approximately 13½"
apart. Secure each channel with two 1/4"-20 x 5/8"
bolts. (See Figure 2)
Figure 2
3. Attach the drawer housing to the mounting
channels using four 1/4"-20 x 1/2" bolts.
(See Figure 2)
4. Insert the drawer and turn the packing table right
side up. Cycle the drawer in and out a few times to
check operation.
NOTE: The drawer and suspension have a
70 lb. weight capacity.
Para Español, vea páginas 3-4.
0621 IH-7595
