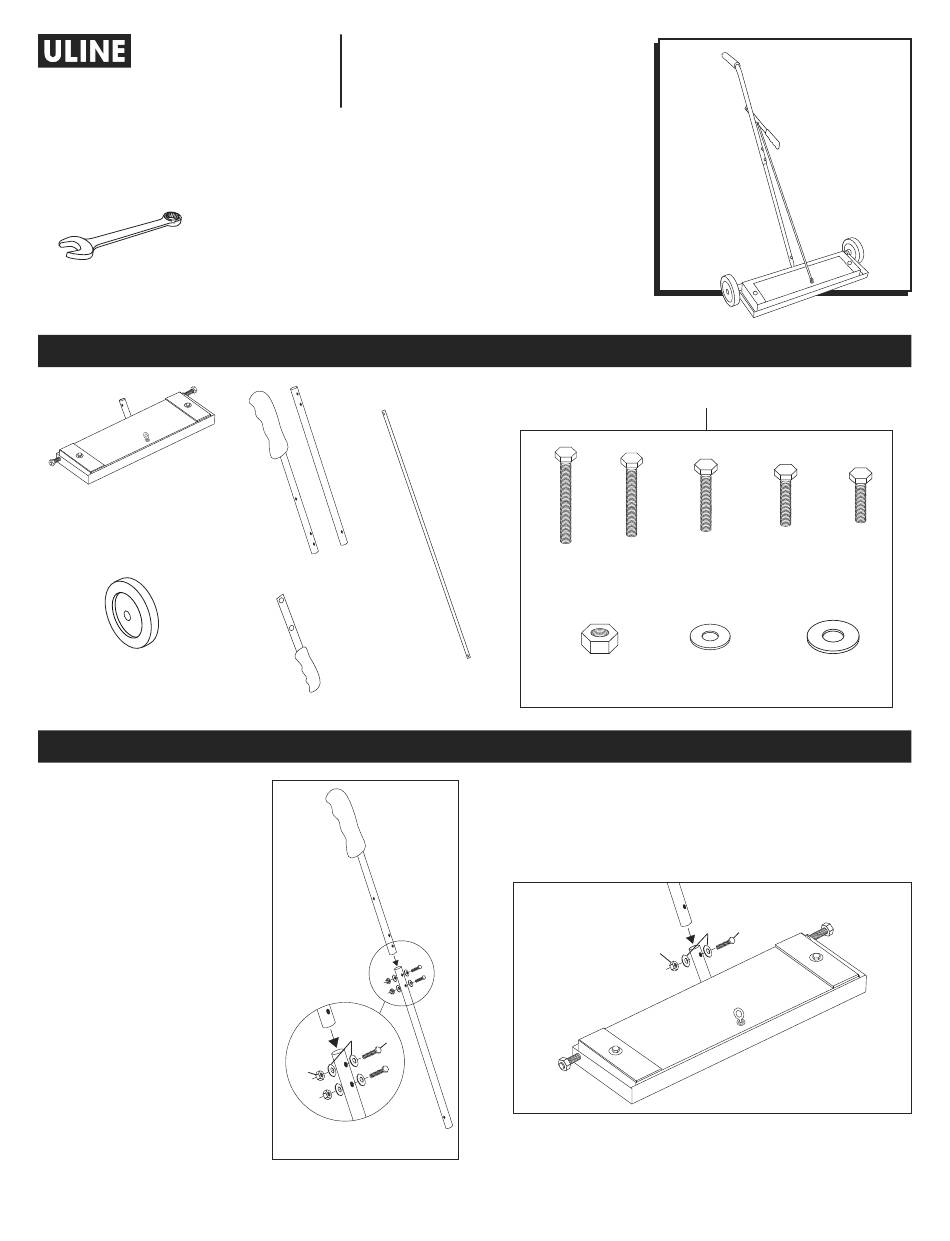

H-2617
PUSH-TYPE MAGNETIC
SWEEPER – 24"
TOOLS NEEDED
3/4" Wrench
10 mm Wrench
Magnetic Sweeper Base x 1
6" Wheel x 2
1. Attach two handle
sections using two bolts
(B), four washer (G) and two
nuts (F). (See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
Handle x 1
Release Bar x 1
Hand Lever x 1
ASSEMBLY
G
B
F
Figure 1
PARTS
B
A
Bolt x 2
Bolt x 1
F
Nut x 6
2. Slide open end of handle over magnetic sweeper
base stem and align holes. (See Figure 2)
3. Secure handle with one bolt (C), two washers (G)
and one nut (F). Tighten firmly. (See Figure 2)
Figure 2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Hardware Kit
C
D
Bolt x 1
Bolt x 1
G
H
Washer x 13
Washer x 2
G
C
F
E
Bolt x 1
0421 IH-2617
