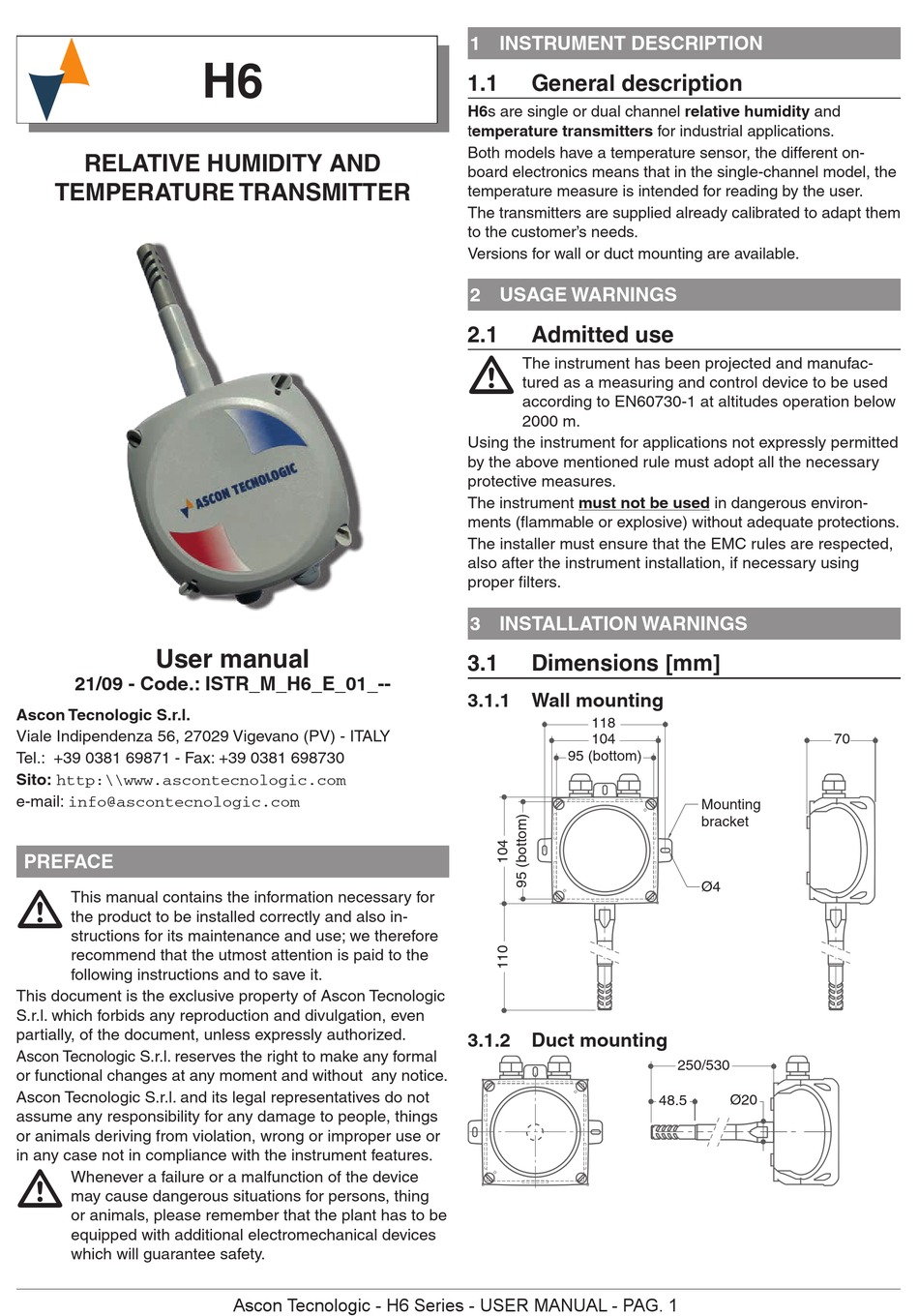

Ascon tecnologic H6 Series Manual

RELATIVE HUMIDITY AND
TEMPERATURE TRANSMITTER
User manual
21/09 - Code.: ISTR_M_H6_E_01_--
Ascon Tecnologic S.r.l.
Viale Indipendenza 56, 27029 Vigevano (PV) - ITALY
Tel.: +39 0381 69871 - Fax: +39 0381 698730
Sito: http:\\www.ascontecnologic.com
e-mail: info@ascontecnologic.com

PREFACE

m
This manual contains the information necessary for
the product to be installed correctly and also in-
structions for its maintenance and use; we therefore
recommend that the utmost attention is paid to the
following instructions and to save it.
This document is the exclusive property of Ascon Tecnologic
S.r.l. which forbids any reproduction and divulgation, even
partially, of the document, unless expressly authorized.
Ascon Tecnologic S.r.l. reserves the right to make any formal
or functional changes at any moment and without any notice.
Ascon Tecnologic S.r.l. and its legal representatives do not
assume any responsibility for any damage to people, things
or animals deriving from violation, wrong or improper use or
in any case not in compliance with the instrument features.
m
Whenever a failure or a malfunction of the device
may cause dangerous situations for persons, thing
or animals, please remember that the plant has to be
equipped with additional electromechanical devices
which will guarantee safety.
H6
Ascon Tecnologic - H6 Series - USER MANUAL - PAG. 1

1 INSTRUMENT DESCRIPTION

1.1 General description

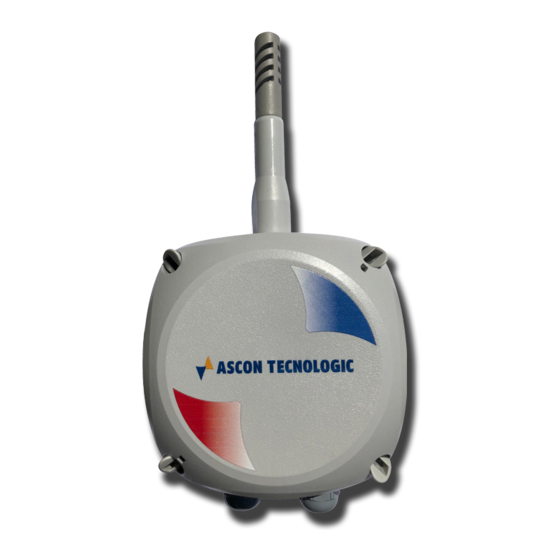

H6s are single or dual channel relative humidity and
temperature transmitters for industrial applications.
Both models have a temperature sensor, the different on-
board electronics means that in the single-channel model, the
temperature measure is intended for reading by the user.
The transmitters are supplied already calibrated to adapt them
to the customer's needs.
Versions for wall or duct mounting are available.

2 USAGE WARNINGS

2.1 Admitted use
m
The instrument has been projected and manufac-
tured as a measuring and control device to be used
according to EN60730-1 at altitudes operation below
2000 m.
Using the instrument for applications not expressly permitted
by the above mentioned rule must adopt all the necessary
protective measures.
The instrument must not be used in dangerous environ-
ments (flammable or explosive) without adequate protections.
The installer must ensure that the EMC rules are respected,
also after the instrument installation, if necessary using
proper filters.

3 INSTALLATION WARNINGS

3.1 Dimensions [mm]
3.1.1 Wall mounting
118
104
95 (bottom)
3.1.2 Duct mounting
Mounting
bracket
Ø4
250/530
Ø20
48.5
70
