Trust WB-3300p User Manual

USER'S MANUAL

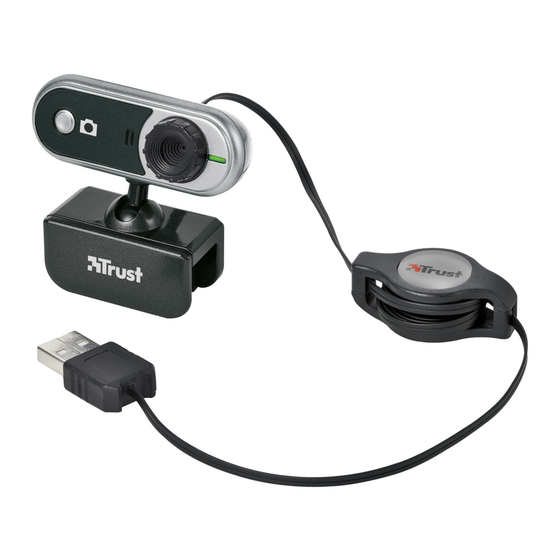

Product information
A: Snapshot button
B: Multi purpose clamp
C: Microphone

Installation

1 (1) PC on. (2) Place CD in CD-ROM.
2 Install driver; Restart PC.
Place camera; Connect USB.
Windows XP+SP2 → 4
3
Windows 98SE/ME/2000/XP → 5
4 (1) No, not this time. (2) Next.
Follow steps on screen to finish.
5
Windows 98SE/ME installation CD might be required!

Use webcam

6 Open AmCap.
7 Enable Preview.
8 Adjust focus using lens ring untill image clear.

Snapshot

Press snapshot button when the cam is in use with application software.
9
Click 'File' and select 'Save As' to save the photograph.

Reminder

General usage
• Use messenger service, like MSN, for video conference. Using link on CD-ROM to download.
• For information of MSN checks www.msn.com or click on MSN tour link on CD-ROM.
• Windows 98SE/ME: After restarting the computer the 'Microsoft TV/VIDEO connection' installation may start.
Follow on-screen instructions to finish (the Windows 98SE/ME installation CD-ROM might be required).
• Windows 98SE/ME: No network connection after installing Microsoft TV/VIDEO connection:
- Click 'Control Panel – Network' and select 'Microsoft TV/VIDEO connection'.
- Click 'Properties.
- Click the 'Bindings' tab.
- Unselect 'TCP/IP -> Microsoft TV/Video Connection'. Restart the computer.
• Make sure there is sufficient light when use the web cam!
• Use soft brush to clean the lens when it's dusty!
• Snapshot works only when the cam is in use!
• The web cam cannot be used in more than one application at the time!
• If change the cam to other USB port, follow Hardware Wizard to finish!
• Read manual on CD for detailed use of AmCap.
D: Adjustable lens ring
E: Status LED
F: Retractable USB cable
1
UK
