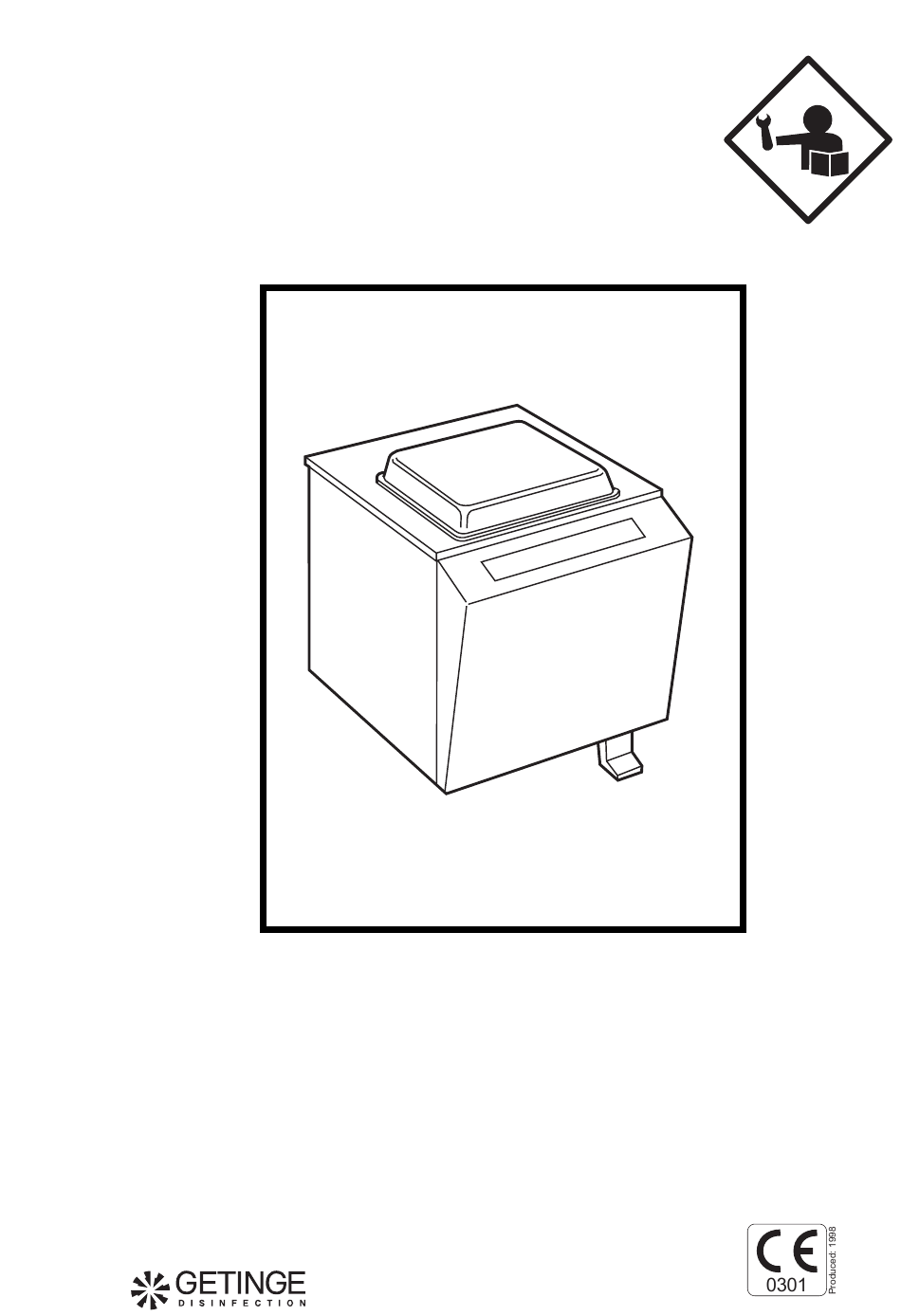

- Page 1 Installation Flusher disinfector S-406 INSTALLATION Flusher disinfector S-406 Serial No. 203.238 - 4996959-01 9904...
-
Page 2: Table Of Contents
Flusher disinfector S-406 Installation Contents Safety rules _______________________________________________ 3 General safety rules _______________________________________ 3 Power cut-off device ______________________________________ 3 Caution symbols _________________________________________ 3 Installation ________________________________________________ 4 Free-standing position _____________________________________ 4 Fixation in wall __________________________________________ 4 Connection of electricity, water, drain, and possibly steam ________ 6... -
Page 3: Safety Rules
Installation Flusher disinfector S-406 Safety rules This machine is designed with a number of integrated safety devices. To avoid personal injury it is essential that the safety devices are not bypassed or in any other way put out of action. -
Page 4: Installation
Flusher disinfector S-406 Installation Installation The disinfector may be placed in a free-standing position on four legs or mounted on a wall in a special wall bracket. To facilitate cleaning, a lateral distance of 100 mm to an adjacent wall or other equipment is recommended. - Page 5 Installation Flusher disinfector S-406 • If support legs are to be used: remove the transport stay and attach the legs before fixing the disinfector in position. • Make sure that the disinfector hooks properly into the bracket when it is mounted on the wall fitting.
-
Page 6: Connection Of Electricity, Water, Drain, And Possibly Steam
Flusher disinfector S-406 Installation Connection of electricity, water, drain, and possibly steam May only be performed by authorized personnel. • The electrical installation must include a cut-off device in the power supply line to the machine to facilitate maintenance and servicing. The device shall be located within easy reach on the wall. -
Page 7: Goods Arrangement Chart
Installation Flusher disinfector S-406 V313 Electricity Hot water Cold water Steam Fig. 5. Connection of water and steam supply. • Connect the disinfector to drain outlet. The drain outlet can be connected either to the rear or downwards as shown in figure 6. Pipe diameter: 110 mm. -
Page 8: Detergent Container
Flusher disinfector S-406 Installation Detergent container • For machines fitted with a dosing system, a tray is provided for the detergent container, which is fitted on the left-hand or right-hand side of the disinfector (Fig. 7). • Fit the tray with the screws in the two cage nuts. -
Page 9: Settings And Functional Check
Installation Flusher disinfector S-406 Settings and functional check • Check to make sure that the disinfector is connected to the correct voltage as indicated on the type data plate. • Open the water valves, and steam valve if relevant, and turn on the main switch. -
Page 10: Setting The Amount Of Cleaning And Deliming Agents On Pumps By Means Of Adjusting Screw
Flusher disinfector S-406 Installation • Press 5 when you have finished. The display window will then go ’OFF’ for a short period (the new value is stored in the machine memory) and then the new value will be displayed with a steady light. -
Page 11: Checking And Adjusting The Door Turning Mechanism
Installation Flusher disinfector S-406 Checking and adjusting the door turning mechanism May only be performed by authorized personnel. This machine is connected to mains power supply and some components are live. If a program starts and the lid is obstructed by an object between the lid and the top of the disinfector, the lid shall open again. -
Page 12: Final Inspection
Flusher disinfector S-406 Installation Final inspection • If the machine has dosing of cleaning agent: Press S and check to make sure the lamp in the push button lights. • Check to make sure the incoming hot water has the correct temperature. It should be between 45 and 60°C. - Page 13 Installation Flusher disinfector S-406 Technical data Weight 70 kg Width Depth 600 Height 900 mm Ambient requirements: Relative humidity maximum 80% at 31°C Room temperature 5 - 40 °C Cold water Connection 15 (1/2") mm Pressure 50-500 kPa Flow 0,2 l/s...
- Page 14 Flusher disinfector S-406 Installation Diameter of nozzle orifice at various steam pressures If no steam pressure is specified, the disinfector nozzle is delivered with an orifice diameter of 1.8 mm. If the pressure used is less than 300 kPa, the nozzle orifice should be made larger as shown in the table below.
- Page 15 Installation Flusher disinfector S-406 9904...
