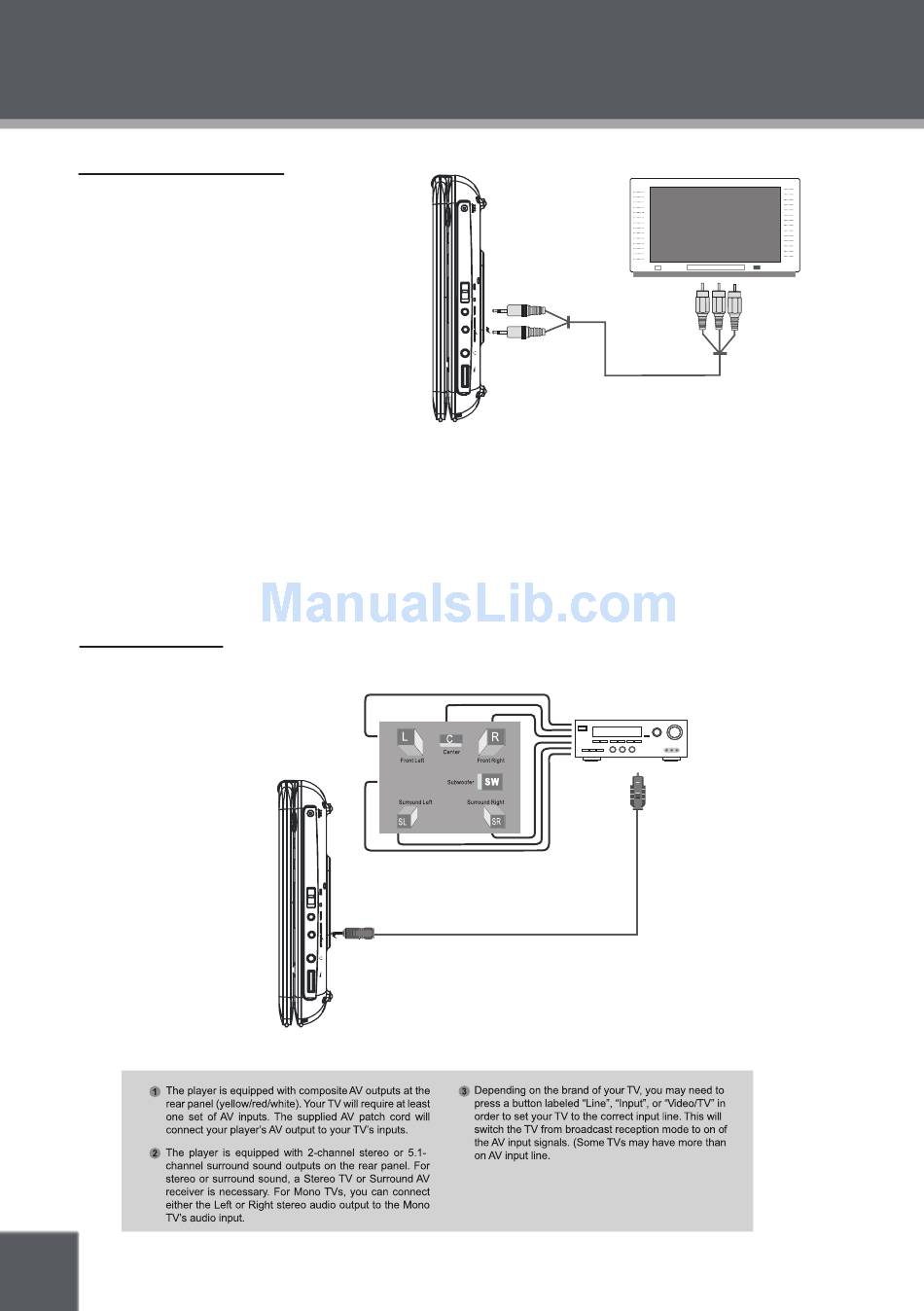

Audio & Video Connections
AV Out - Output the AV Signal
a). Connect the player to TV or the
moniter by the RCA cable.
b). Slide the AV switch to OUT position.
AV IN - Input the AV Signal
a). Connect the player to the external
input source by the RCA cable.
b). Slide the AV switch to AV IN.
NOTE: 1. Refer to the owner's manual of your TV as well.
2. Before connecting the DVD player to a TV set, be sure to turn the
power off and unplug both units from the wall outlet.

Audio Connections

14

CONNECTIONS

Optical/Audio Jack
TV / Moniter / External AV Source
To VIDEO
To AUDIO
Audio/Video cable
Amplifier equipped with a Dolby
Pro Logic Surround
Optical Cable
To AUDIO/
VIDEO
