Therafin Permobil 3G 41382 Instructions

Permobil 3G Half Tray
Caution: Read Instructions before operating device
Caution: Device should be installed by a trained wheelchair
technician.
Caution: Use caution when installing, removing or adjusting
Caution: Always tighten all fasteners securely and inspect
fasteners regularly for tightness.

Product Identification

Item Numbers:
41382, 41383, 41384, 41385, 41386, 41387, 41388, 41389
41390, 41391, 41392, 41393, 41394, 41395, 41396, 41397
41398, 41399, 41400, 41401, 41402, 41403, 41404, 41405
41406, 41407, 41408, 41409, 41410, 41411, 41412, 41413
41414, 41415, 41416, 41417
Attaching
Fasteners (AF1)
L1
Receiver (R1)
Item Numbers:
41380, 41382
Same as above - No Tray (T1)
Therafin Corporation
.
Tray (T1)
Hinge (H1)
N1 X 2
B1 X 2

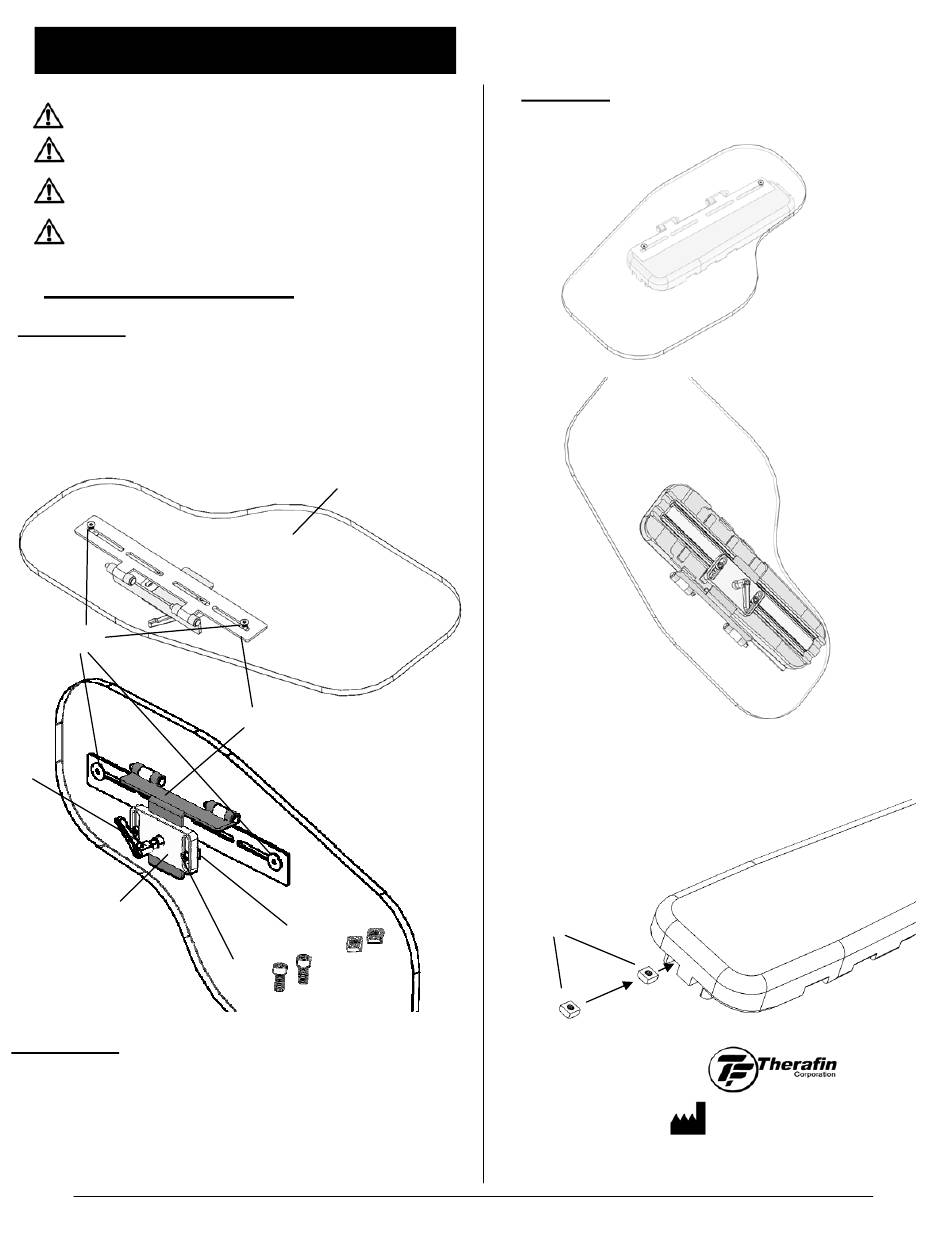

To Install:

Image below shows installed device mounted on
armrest.
If No tray included, First attach Your Tray to hardware
using included Fasteners (AF1) then proceed to Step 1.

Step 1: Insert N1 X 2 into Permobil Armrest (P1).

N1 X 2
