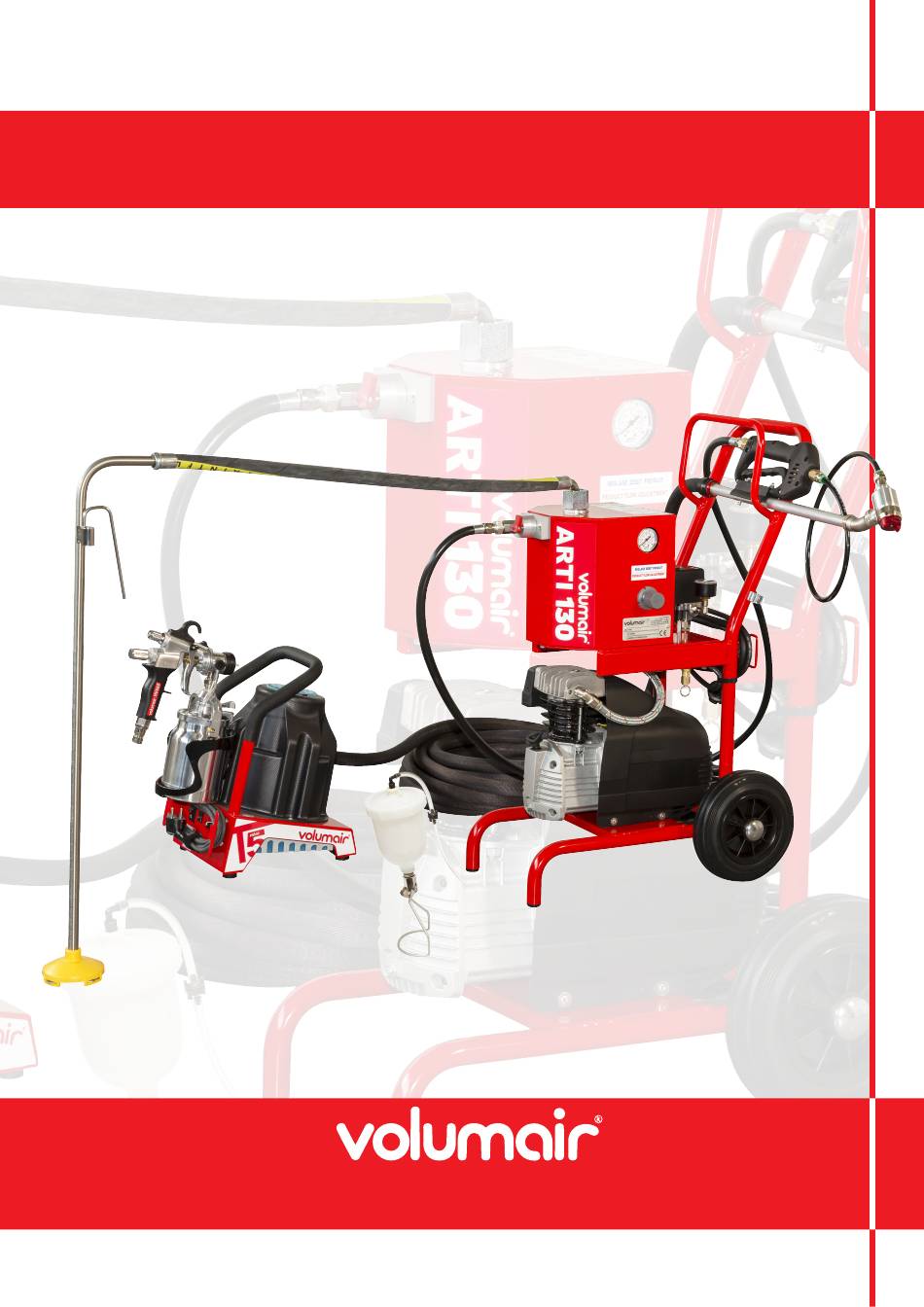

User manual
ARTI 130-2 + T5 Mini + HV460
Réf. 40035
EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
Edition of 16/12/2021
More information on www.euromair.com
Advertisement
Table of Contents
Related Manuals for Volumair ARTI 130-2 + T5 Mini + HV460
Summary of Contents for Volumair ARTI 130-2 + T5 Mini + HV460
- Page 1 User manual ARTI 130-2 + T5 Mini + HV460 Réf. 40035 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 Edition of 16/12/2021 More information on www.euromair.com...
-
Page 2: Table Of Contents
SUMMARY You just acquired one of our machines and all the team of Europe Projection thanks confidence 1. USER MANUAL ............. p. 3 have granted 1.1. Importance of the manual .........p. 3 Manufacturer of professional 1.2. Receivers of the manual ..........p. 3 equipments for paint and fillers, we have put our know-how for 25 years... -
Page 3: User Manual
1. USER MANUAL 1.1. IMPORTANCE OF THE MANUAL This manual is a key part for the use of your machine. It summarizes the procedures of starting-up, cleaning and maintenance of the device and also the safety instructions you need to observe. Read carefully all the working and safety instructions and the warnings included in this manual before starting your machine. -
Page 4: Warning
2. WARNING 2.1. SAFETY Using the machine in an incorrect way or in non-compliance of the safety instructions indicated in this manual can cause death or serious injuries. Read carefully all the working and safety instructions and the warnings contained in this manual before starting your machine. - Page 5 2. WARNING (continued) 2.1. SAFETY (continued) WORKSPACE • Maintain the workspace clean and clear. • Ambient operating temperature must be from 5°C and 35°C. • Do not use the equipment in a potentially explosive area. • Do not place any potentially inflammable objects in close proximity to the machine. •...
-
Page 6: Electric Connection
EEEs according to the following provisions: applicable only to products on the market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products of other brands sold by our company (upon presentation of the corresponding invoices), products that operate using electrical energy (for example, thermal washers or compressors do not fall into this category). -
Page 7: Your Machine
3. YOUR MACHINE 3.1. DESCRIPTION Complete set composed of a trolley with a low pressure turbine. The HV460 gun with upper and lower bowl, as well as the long gun with its extension allow to adapt to any kind of work. APPLICATIONS All types of paints, stains and varnishes for interior and exterior use that can be sprayed at low pressure. -
Page 8: Identification Of The Trolley Components
3. YOUR MACHINE (continued) 3.3. IDENTIFICATION OF THE TROLLEY COMPONENTS Product inlet Suction rod (for low density products) Gravity tank (for products with higher density) Product outlet Compression head Compressor start switch Product flow-rate adjustment knob User manual - ARTI 130-2 + T5 Mini + HV640 202008-481A-ENG... -
Page 9: Identification Of The Long Spray-Gun Components
3. YOUR MACHINE (continued) 3.4. IDENTIFICATION OF THE LONG SPRAY-GUN COMPONENTS Trigger Product inlet connector Air inlet connector Tightening ring Atomization kit Diffuser head Jet nozzle 202008-481A-ENG User manual - ARTI 130-2 + T5 Mini + HV640... -
Page 10: Identification Of The Hv460 Spray-Gun Components
3. YOUR MACHINE (continued) 3.5. IDENTIFICATION OF THE HV460 SPRAY-GUN COMPONENTS Trigger Product inlet connector Air inlet connector Tightening ring Atomization kit Diffuser head Jet nozzle Needle Lower bowl 1 L Upper bowl 0,6 L Rotating coupling Product flow-rate adjustment knob Air flow-rate adjustment knob User manual - ARTI 130-2 + T5 Mini + HV640 202008-481A-ENG... -
Page 11: Identification Of The Turbine Components
3. YOUR MACHINE (continued) 3.6. IDENTIFICATION OF THE TURBINE COMPONENTS Ventilation filter Air outlet connection On/Off switch Potentiometer for regulating the spraying air flow-rate Thermal circuit breaker Power cable Air filter 202008-481A-ENG User manual - ARTI 130-2 + T5 Mini + HV640... -
Page 12: Use Of The Machine
4. USE OF THE MACHINE 4.1. PREREQUISITES • The electric connection has to be 230 V - 16 A - 50 or 60 Hz. • Be careful to only use paints which have not dried and which do not contain dry particles (otherwise, filter the paint with a strainer). -
Page 13: Atomization
4. USE OF THE MACHINE (continued) 4.2. ATOMIZATION Prepare the surface to be painted (sanding, cleaning, etc...). Connect the air hose to the connector (J) on the gun side and to the connector (Q) on the turbine side. Depending on the product to be used, mount the suction rod (B) or the gravity tank (C) to the product inlet connector (A). - Page 14 4. USE OF THE MACHINE (continued) 4.2. ATOMIZATION (continued) So that the paint is at the ideal viscosity, use the viscosimeter delivered with the turbine. Dilute a part of the paint with the appropriate thinner. Fill the viscosimeter to the top and let the liquid flow and monitor the time it takes until the trickle of paint becomes discontinuous.
-
Page 15: Spray Setting
4. USE OF THE MACHINE (continued) 4.3. SPRAY SETTING To increase or decrease the product flow-rate, use the wheel (N) at the back of the spray-gun: - screw to decrease the flow-rate - unscrew to increase the flow-rate To increase or decrease the jet width, use the ring (K): - tighten to obtain a wider jet - unscrew to obtain a more narrow jet To obtain differents jets, direct the diffuser head as indicated below:... -
Page 16: Cleaning And Maintenance
5. CLEANING AND MAINTENANCE Disconnect the plug of the machine from the mains voltage before any intervention. Long spray-gun cleaning • Immerse the rod (B) in a bucket of clear water (after cleaning the strainer with water) or empty the remaining product into the tank (C), clean the inside and outside with water and fill it with clear water. -
Page 17: Declaration Of Conformity
EUROPE PROJECTION 228, avenue Olivier Perroy 13790 ROUSSET DECLARES THAT THE EQUIPMENT DESIGNATED BELOW : Trademark : VOLUMAIR Type : Low Pressure group Model : ARTI 130-2 + T5 Mini + HV640 trolley COMPLIES WITH THE DIRECTIVES : • Machines 2006/42/CE •... -
Page 18: Warranty Conditions
7. WARRANTY CONDITIONS Each equipment is delivered inspected and tested. We exclude any warranty for visible defects, not notified by the customer within 48 hours. The equipment sold is guaranteed during the manufacturer’s warranty from the date of purchase, as specified on the original proof of purchase, and under the conditions defined by the manufacturer. - Page 19 7. WARRANTY CONDITIONS (continued) In all cases, our liability shall be limited to the amount paid by the customer for non-compliant equipment. Any legal action of the customer against us relating to the warranty of the equipment shall be barred 1 year after the date of discovery of the defect.
- Page 20 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 More information on www.euromair.com User manual - ARTI 130-2 + T5 Mini + HV640 202008-481A-ENG...
