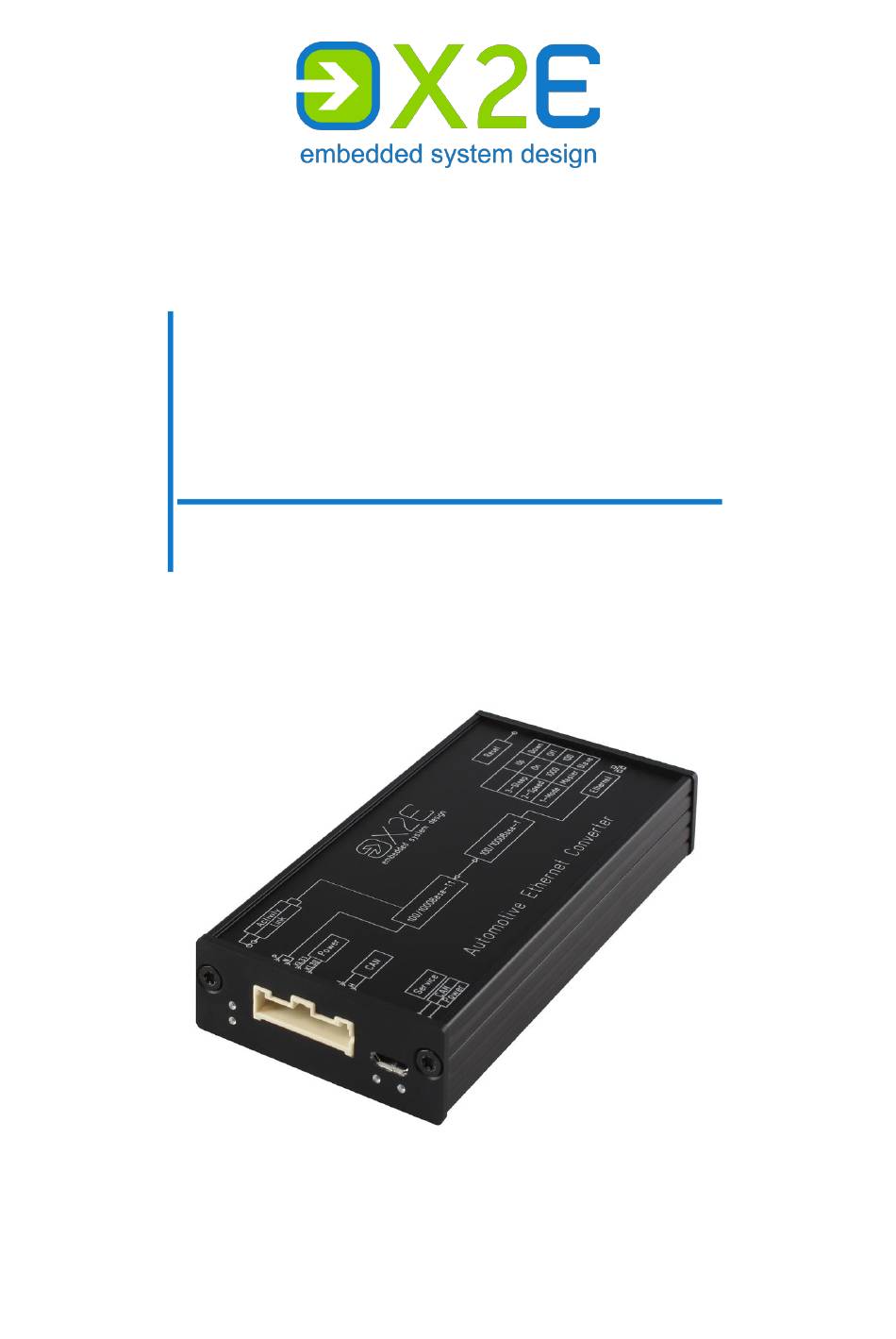

- Page 1 Automotive Ethernet Converter User Manual Version: 1.12 / September 2021...
- Page 2 This user manual is protected by copyright; all usual rights reserved. Reproduction of this user manual, even in part, is only permitted with the approval of X2E GmbH. Any infringement will result in liability for damages and may result in criminal prosecution.
-
Page 3: Table Of Contents
User Manual Automotive Ethernet Converter Table of contents Introduction ..................... 4 Intended use .................... 4 Delivery contents ..................4 General safety instructions ..............5 Product overview..................5 Identification ..................... 7 Connections and controls ................ 8 Installation ..................... 11 Mounting ....................11 Connecting ..................... -
Page 4: Introduction
▪ Suite ORAYA ▪ USB driver Check to ensure that the delivery is complete and all parts are in sound condition. If the deliv- ery is incomplete or supplied components are damaged, contact X2E immediately. Do not use damaged components. -
Page 5: General Safety Instructions
User Manual Automotive Ethernet Converter General safety instructions The Automotive Ethernet Converter is only intended for use by qualified personnel. Read the user manual and especially this chapter thoroughly before operating. CAUTION Electric shock due to damaged components Damages to the converter or the connection cable can result in electric shock. - Page 6 User Manual Automotive Ethernet Converter ▪ Reorient or relocate the receiving antenna. ▪ Increase the separation between the equipment and receiver. ▪ Connect the equipment into an outlet on a circuit different from that to which the re- ceiver is connected.
-
Page 7: Product Overview
User Manual Automotive Ethernet Converter Product overview Identification The identification plate is located on the bottom side of the Automotive Ethernet Converter. It contains information about: ▪ device type ▪ hardware revision ▪ serial number ▪ Input maximum current consumption at given standard input voltage ▪... -
Page 8: Connections And Controls
User Manual Automotive Ethernet Converter Connections and controls The front side contains LEDs, the service interface and the combined connection for power, 100/1000Base-T1 and CAN. The Ethernet interface and control elements are located on the back side. Front view Back view... - Page 9 User Manual Automotive Ethernet Converter General status LED (D) Colour Meaning blue converter in initialisation phase green-white after initialisation phase: detected FW 04.02.00 or (blinking) newer green up to FW 04.01.08: converter ready since FW 04.02.00: converter ready and in compliant mode since FW 04.02.00: converter ready and in legacy...
- Page 10 User Manual Automotive Ethernet Converter Link LED for Ethernet (H) Colour Meaning green link established DIP switches (I) Function switch the 100/1000Base-T1 interface between master (up) or slave (down) switch the data rate between 1000 Mbit (up) and 100 Mbit (down)
-
Page 11: Installation
User Manual Automotive Ethernet Converter Installation Mounting CAUTION Device damage due to overheating Overheating may result in malfunction or destruction of the converter. Do not operate the converter outside the specified temperature range. Do not operate the converter in the vicinity of heat sources. - Page 12 User Manual Automotive Ethernet Converter The following instructions refer to the connection cable provided by X2E. If you use other ca- bles, connect accordingly. Plug the connection cable into the socket (B). Connect the cable labelled OABR to the ECU or any other OABR or 100/1000Base- T1 device.
-
Page 13: Configuration And Firmware Update
User Manual Automotive Ethernet Converter Configuration and firmware update In addition to the general converter configuration with DIP switches (I), it is possible to change the following two values with the tool Gateway configuration, part of X2E's X ORAYA- Suite: ▪... -
Page 14: Start Gateway Configuration
User Manual Automotive Ethernet Converter Start the X Suite installation wizard and follow the instructions. ORAYA Make sure that the components Gateway configuration and DFU-Driver are selected. Start Gateway configuration Start the X Suite. ORAYA Click in the Windows notification area. -
Page 15: Connect Converter
User Manual Automotive Ethernet Converter Connect converter Make sure that the correct USB driver is installed. Deactivate sleep mode (DIP switch (I) No 3 is in down position). Connect the converter to the power supply (see chapter Connecting). -
Page 16: Update Firmware
User Manual Automotive Ethernet Converter Update firmware Click Navigate to the directory that contains the firmware file and select the File name. (Never change the file names of the provided firmware archive.) Click Open. The firmware is being updated. -
Page 17: Cleaning
Never open the converter. Maintenance and repair must be carried out by X2E personnel only. In case of malfunctions or damages, please contact X2E via e-mail to get information about returning the converter: xoraya-return@x2e.de Disposal Within the European Union, the disposal of electrical devices is determined... -
Page 18: Appendix
User Manual Automotive Ethernet Converter Appendix Technical specifications Dimensions (H x W x D) 21 mm x 56 mm x 104 mm Supply voltage 6 V to 28 V Current consumption max 150 mA (at 12 V) Current consumption (standby) - Page 22 X2E GmbH Grosse Ahlmühle 19 76865 Rohrbach GERMANY Phone +49 6349 99599 200 E-Mail xoraya@x2e.de Internet www.x2e.de...
