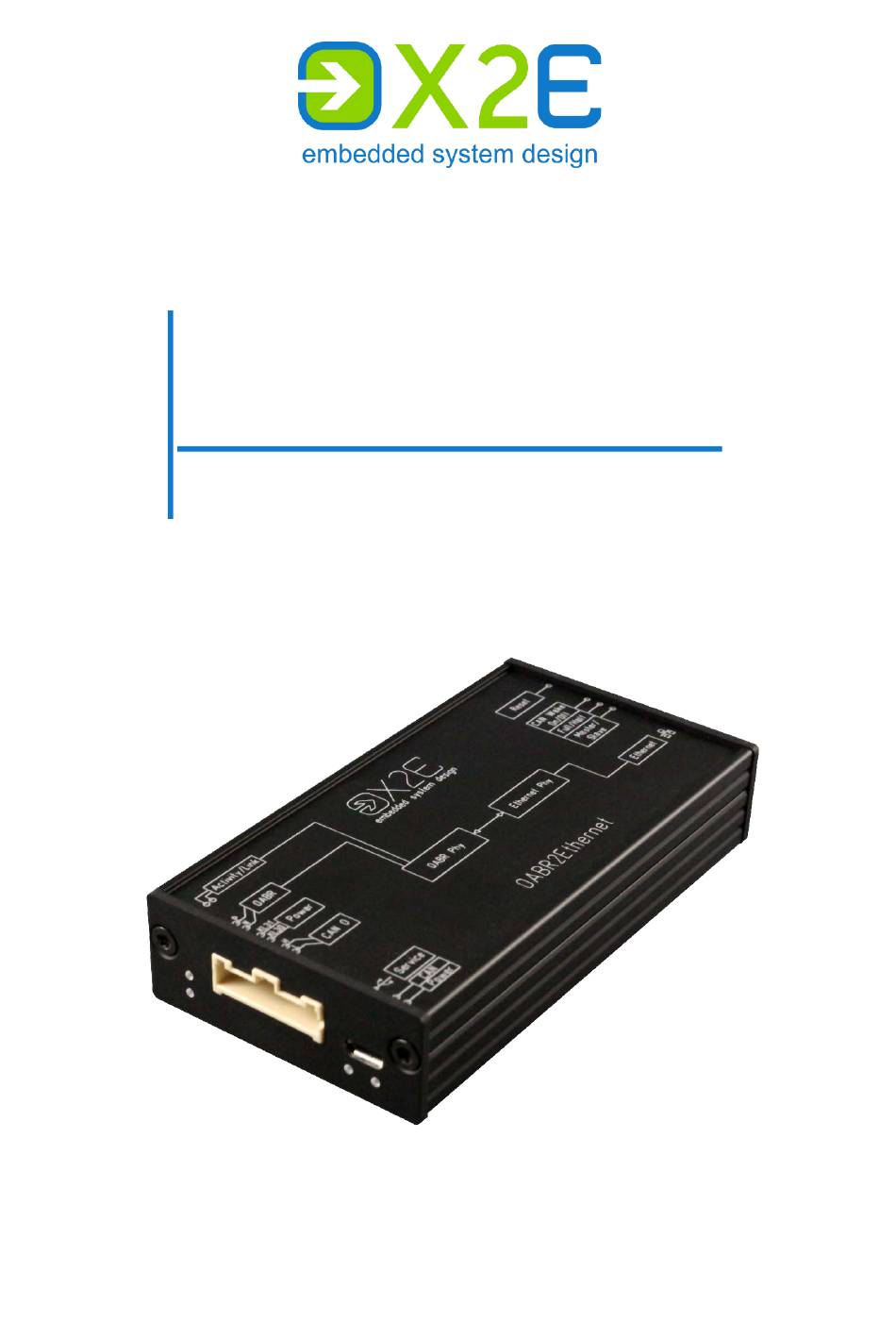

- Page 1 OABR2Ethernet Media Converter User Manual Version: 1.4 / December 2018...
- Page 2 This user manual is protected by copyright; all usual rights reserved. Reproduction of this user manual, even in part, is only permitted with the approval of X2E GmbH. Any infringement will result in liability for damages and may result in criminal prosecution.
-
Page 3: Table Of Contents
User Manual OABR2Ethernet Table of contents Introduction ..................... 4 Intended use .................... 4 Delivery contents ..................4 General safety instructions ..............5 Product overview..................6 Identification ..................... 6 Connections and control elements ............6 Installation ..................... 10 Mounting ....................10 Connecting ..................... -
Page 4: Introduction
Suite ORAYA USB driver Check to ensure that the delivery is complete and all hardware components are in sound condition. If the delivery is incomplete or supplied components are damaged, contact X2E immediately. Do not use damaged components. -
Page 5: General Safety Instructions
User Manual OABR2Ethernet General safety instructions The OABR2Ethernet Media Converter is only intended for use by qualified personnel. Read the user manual and especially this chapter thoroughly before operating. CAUTION Electric shock due to damaged components Damages to the converter or the connection cable can result in electric shock. -
Page 6: Product Overview
User Manual OABR2Ethernet Product overview Identification The identification plate is located on the bottom side of the OABR2Ethernet Media Converter. It contains information about: device type hardware revision serial number date of manufacture This user manual applies to the OABR2Ethernet Media Converter in hardware revision 1.01. - Page 7 User Manual OABR2Ethernet Activity LED for OABR (A) Colour Meaning green interface ready green (blinking) data transmission on this interface yellow USB bootloader mode Connection for power, OABR and CAN (B) Function CAN_H CAN_L KL30(Ubatt) KL31(GND) OABR_N OABR_P Service interface (C) Use the Micro USB interface to change the configuration or to update the firmware.
- Page 8 User Manual OABR2Ethernet LED for CAN (E) Colour Meaning blue interface in initialisation phase green interface ready red (blinking) activity on this interface Link LED for OABR (F) Colour Meaning connection established yellow USB bootloader mode Activity LED for Ethernet (G)
- Page 9 User Manual OABR2Ethernet Reset button (J) This button is used to: restart the converter switch the converter into USB bootloader mode (further information in the chapter Connect to converter) Ethernet interface (K) The pin assignments of the RJ45 connector conform to the Ethernet standard.
-
Page 10: Installation
User Manual OABR2Ethernet Installation Mounting CAUTION Device damage due to overheating Overheating may result in malfunction or destruction of the converter. Do not operate the converter outside the specified temperature range. Do not operate the converter in the vicinity of heat sources. - Page 11 User Manual OABR2Ethernet The following instructions refer to the connection cable provided by X2E. If you use other ca- bles, connect accordingly. Plug the connection cable into the socket (B). Connect the cable labelled OABR to the ECU or any other OABR device.
-
Page 12: Can Configuration And Firmware Update
User Manual OABR2Ethernet CAN configuration and firmware update In addition to the general converter configuration with DIP switches (I), it is possible to change the following two values with the tool Gateway configuration, part of X2E's X ORAYA- Suite: ... -
Page 13: Install Xoraya Suite
User Manual OABR2Ethernet Install X Suite ORAYA Start the X Suite installation wizard and follow the instructions. ORAYA Make sure that the component Gateway configuration is installed. Start Gateway configuration Start the X Suite. ORAYA Click in the Windows notification area. -
Page 14: Buttons
User Manual OABR2Ethernet Buttons The following table displays a short overview of the toolbar buttons and the equivalent menu commands that are relevant to the converter. You find detailed step-by-step instructions on the subsequent pages. Function Menu command creates a new project Project >... -
Page 15: Create And Save Configuration
User Manual OABR2Ethernet Create and save configuration Click to create a new project. At Variant, label your configuration with a freely selectable letter. At Sleep timeout, enter the number of seconds without CAN activity that puts the converter into sleep mode. -
Page 16: Transfer Configuration
User Manual OABR2Ethernet Transfer configuration Establish a connection to the converter (see chapter Connect to converter). Click to load a saved configuration. Navigate to the directory that contains the configuration file and select the File name. ... -
Page 17: Cleaning
Never open the converter. Maintenance and repair must be carried out by X2E personnel only. In case of malfunctions or damages, please contact X2E via e-mail to get information about returning the converter: xoraya-return@x2e.de Disposal Within the European Union, the disposal of electrical devices is determined... -
Page 18: Appendix
User Manual OABR2Ethernet Appendix Technical specifications Dimensions (H x W x D) 20.9 mm x 55.8 mm x 84 mm Supply voltage 5 V to 28 V Current consumption max 150 mA Current consumption (standby) max 32 mA Data rate... - Page 20 X2E GmbH Jahnstrasse 2b 76870 Kandel GERMANY Phone +49 7275 9143 100 +49 7275 9143 109 E-Mail info@x2e.de Internet http://www.x2e.de...
