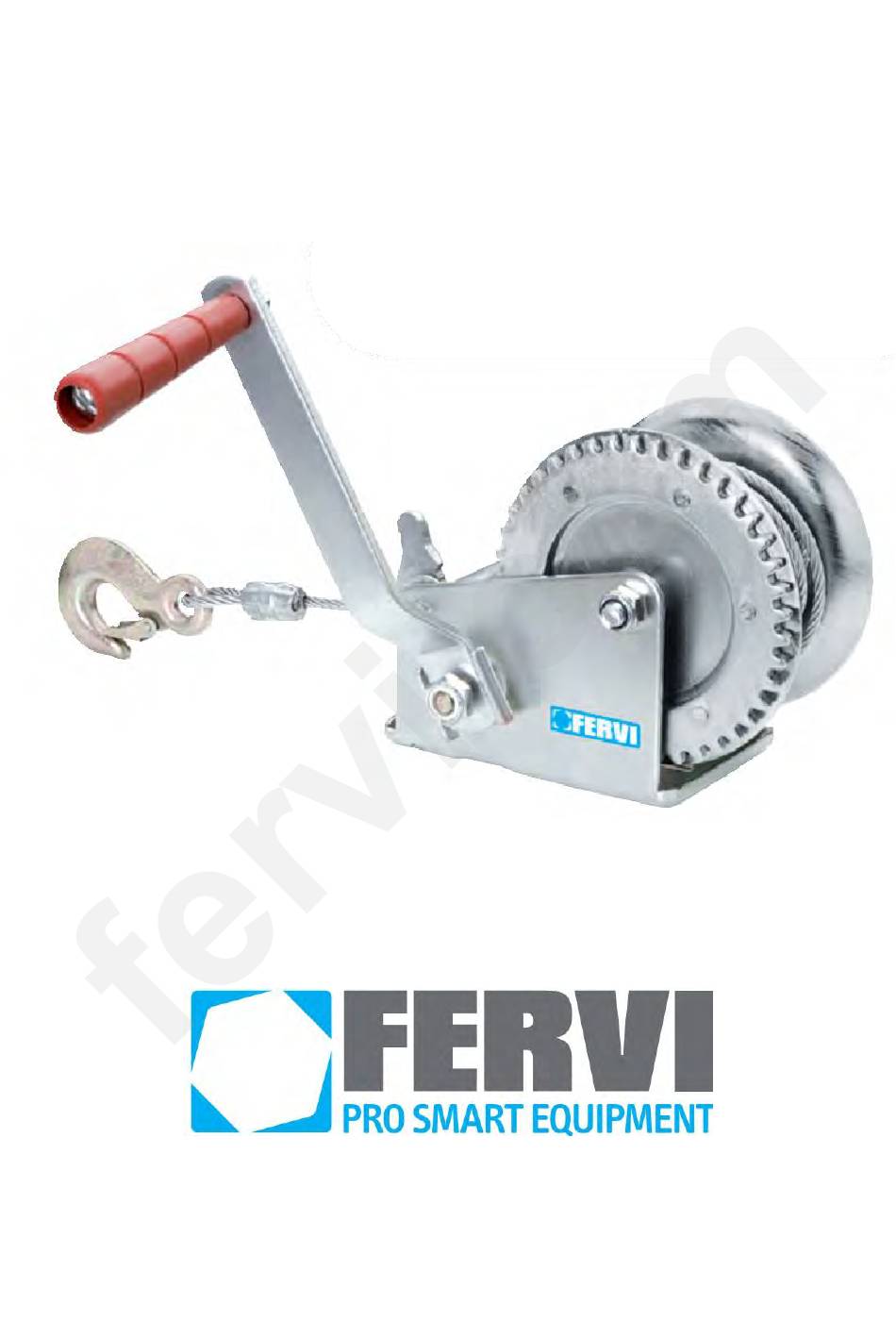

- Page 1 OPERATION AND MAINTENANCE MANUAL Hand geared winch with cable Art. 0070/C TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issuance and listed herein; On the other hand, the winch may also be subject to important technical changes in the future, without the manual being updated. Therefore, see FERVI for information about modifications that could be implemented. REV. 1 June 2014...
-
Page 3: Table Of Contents
MACHINES AND ACCESSORIES CONTENTS GENERAL SAFETY INSTRUCTIONS ............. 4 Risks Associated with the Work Area ................4 Personal protective equipment ..................4 Technical support ......................4 DESCRIPTION AND INTENDED USE ............5 Plate ..........................6 Technical specifications ....................6 IMPROPER USE AND CONTRAINDICATIONS ..........7 COMMISSIONING .................. -
Page 4: General Safety Instructions
MACHINES AND ACCESSORIES 1 GENERAL SAFETY INSTRUCTIONS 1. Do not try to operate the winch at higher performance levels than those for which it was designed, in particular regarding the magnitude of the load to be lifted. In other words, do not make demands of the winch in excess of its maximum pulling capacity. -
Page 5: Description And Intended Use
ACCESSORIES 2 DESCRIPTION AND INTENDED USE The winch Art. 0070/C is a device to be used for the horizontal "pulling" of vehicles or other loads that move on a horizontal flat surface (or slightly tilted). They can be mounted on vehicles such as trailers, three-wheeled vans, boats, etc. -
Page 6: Plate
2.1 Plate The following information plate is attached to the device Figure 3 –Plate 2.2 Technical specifications HAND GEARED WINCH WITH CABLE – Art. 0070/C Maximum pulling capacity (kg) Groove width (mm) Outer coil diameter (mm) Minimum coil diameter (mm) -
Page 7: Improper Use And Contraindications
MACHINES AND ACCESSORIES 3 IMPROPER USE AND CONTRAINDICATIONS IT IS STRICTLY FORBIDDEN!! To use the winch for lifting loads (vertical pull). The Winch is not a lifting device. To lift people, animals or things. To pull loads weighing more than the MAXIMUM PULLING CAPACITY of the winch indicated on the rating plate. -
Page 8: Commissioning
MACHINES AND ACCESSORIES 4 COMMISSIONING The winch is supplied in a cardboard box completely assembled, with the exception of the operation handle. Before disposing of the shipping carton, check you do not to throw away parts of the machine, the owner's manual or other documentation Standard packaging Packaging materials (bags, cardboard, etc.). -
Page 9: How To Use
MACHINES AND ACCESSORIES 5 HOW TO USE 5.1 Pulling the load Crushing / Impacts IT IS ABSOLUTELY FORBIDDEN to lift loads. The Winch is not designed for that purpose! At least 3 wraps of cable! Before putting tension on the cable and pulling the load, CHECK that the cable is wrapped around the drum at least three times. -
Page 10: Releasing The Load
MACHINES AND ACCESSORIES Overloading Never use an extension on the operation handle, but only use the grip on the handle. Winding the cable When pulling the load, inspect the cable layout, which must be properly wrapped on the drum with a spacing equal to the diameter of the cable (Figure 7). Figure 7 –... -
Page 11: Maintenance And Cleaning
MACHINES AND ACCESSORIES 6 MAINTENANCE AND CLEANING The purpose of this section is to provide all the information on the maintenance procedures and frequency that the winch requires. Frequency INTERVENTION Daily Weekly 1. General visual inspection 2. General cleaning 3. Lubricate moving parts 1. -
Page 12: Bill Of Materials And Spare Parts
MACHINES AND ACCESSORIES 7 BILL OF MATERIALS AND SPARE PARTS Description 0070/C/01 Nut M8 0070/C/02 Travel limit pawls 0070/C/03 Travel limit pawl 0070/C/04 Drum lock device 0070/C/05 Cable tangle regulation device 0070/C/06 Screw M6 x 100 0070/C/07 Spring 0070/C/08 Spring...
