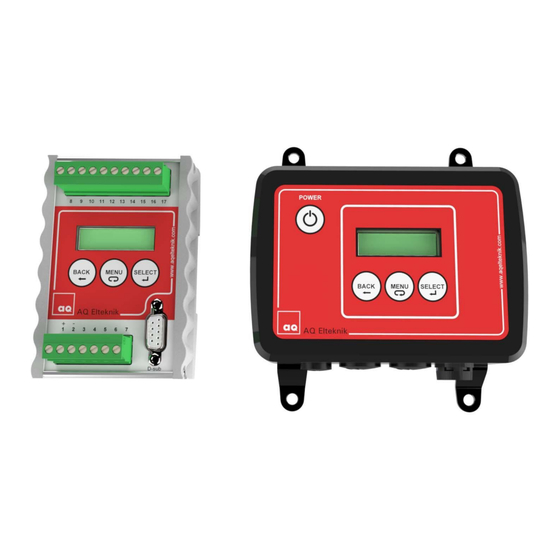

- Page 1 Ultrasound Controller D72 DP72 D128 G72 Manual AQ Elteknik AB...
- Page 2 Ultrasound Controller Manual...
- Page 3 Ultrasound Controller D72 DP72 D128 G72 AQ Elteknik AB Manual version 4.70 Software version 4.7x D72 hardware version RevE DP72 hardware version RevE D128 hardware version RevA G72 hardware version RevA GSD file version The manual version should agree with the software and hardware version of the Ultrasound Controller.
-
Page 4: Table Of Contents
Certificate of Quality and Function ....................................5 Manufacturer ............................................. 5 Introduction ............................................. 6 Ultrasound Controller ........................................6 Installing the Ultrasound Controller D72 and G72 ................................6 Installing the Ultrasound Controller DP72 ..................................7 Installing the Ultrasound Controller D128..................................7 Navigating the menu system ......................................... 8 Sensor MODE and the start-screen .................................... -
Page 5: Manufacturer Information
Replacement as provided under this warranty is the only remedy of the purchaser. The purchaser pays freight to AQ Elteknik AB. AQ Elteknik AB shall in no event be held liable for indirect or consequential damages of any kind or character to the purchaser. -
Page 6: Introduction
Four single gel- levels can be measured with one Ultrasound Controller. Installing the Ultrasound Controller D72 and G72 The Ultrasound Controller D72 should be protected from dust and water. It is made to be attached to a DIN-rail, to D72, G72... -
Page 7: Installing The Ultrasound Controller Dp72
A person with the required knowledge Relay 4 should perform the installation. mA output MINUS + 4-20mA output A + 4-20mA output B Enclosure Gasket Bottom plate Screws Terminals Dummy coverings Cable glands (small and big) Pressure compensation element AQ Elteknik AB Ultrasound Controller Manual... -
Page 8: Navigating The Menu System
3. Navigating the menu system Toggle between Go back to previous Scroll through menu- Select a menu standby and menu-level text, parameter-names power-on. or parameter- Confirm the Cancel a values selection of a Selected parameter-value Switches (D128 only) operation Keep MENU button pressed to scroll continuously. Press BACK button while pressing MENU button to scroll backwards. -
Page 9: Air Sensor Mode
The Air Sensor is more sensitive to bubbles at the top if it is rotated so that the cable connector (and label) is facing up. If instead low bubble sensitivity is desirable rotate the Air AQ Elteknik AB Ultrasound Controller Manual... -
Page 10: Setting Lowest Possible Sensitivity For Bubbles
Sensor so that the cable connector (and label) is facing down. This makes the Air Sensor less sensitive for bubbles at the top of the tube. Setting lowest possible sensitivity for bubbles If mounted horizontally rotate the Air Sensor so that the cable connector is facing down. FILTER setting determines the delay (response time) for detecting air. -
Page 11: Connecting The Air Sensor
Delay means that air will be indicated when air has been continuously detected for a time longer than the delay time. FILTER delay SENSITIVITY Long and low is useful if some quantities of bubbles should be undetected. AQ Elteknik AB Ultrasound Controller Manual... -
Page 12: Air Sensor Start-Screen
FILTER integrate SENSITIVITY Short and high is useful when almost every bubble should be detected. SET RELAY Select to set how the relays should act. There are four relays each with one normally open contact (at power off and when sensor is not connected the relay is open). Each relay can be set independently. -
Page 13: Advanced Settings
Air Sensor, it should be near 100%, depending on the liquid. All liquids do not conduct Ndata sound equally well. If with liquid is > 130% or if it is < 80% it is advisable to calibrate the Air Sensor with liquid again. AQ Elteknik AB Ultrasound Controller Manual... -
Page 14: Very Low Sensitivity Data
> 5. AUXILIARY DATA This page shows unprocessed data from the Air Sensor. It can be used for troubleshooting when contacting AQ Elteknik AB. HELP Select HELP to show information about how to connect the Ultrasound Controller. Sound velocity in the Air Sensor With sensitivity set to low, medium or high and with two liquids having different sound velocities in the Air Sensor and with these liquids not well mixed, there can be false indication of air. - Page 15 The reason for this can be: Calibration of LIQUID has been done with air or liquid having lots of bubbles or particles attenuating the sound. Or wrong settings of Air Sensor Type or Diameter. Or Air Sensor is wrongly connected. Or Air Sensor is faulty AQ Elteknik AB Ultrasound Controller Manual...
-
Page 16: Level Switch Mode
5. Level Switch Mode In Level Switch Mode the Level Switch measures a single level from the side of the container. It measures the presence or no presence of liquid behind the container (or pipe) wall. The Level Switch senses through the wall AND no hole is needed. Four Level Switches can be connected to one Ultrasound Controller. -
Page 17: Echo Technique
The advantage of the WR-technique is it is independent of liquid properties and there is no need for a reflecting surface. AQ Elteknik AB Ultrasound Controller Manual... -
Page 18: Mounting The Level Switch
Mounting the Level Switch How to mount the Level Switch on the container is described in Level Switch manual. Level Switch start-screen Lev Sw When power is applied, the Level Switch start-screen is displayed showing on first line to the right signifying this is Level Switch start-screen. . On the second line to the right is written 1234 which shows the state of each of the four relays. -
Page 19: Container With Jacket
0 and 70 should be shown. Then by pressing on the inner side of the Level Switch with a finger this value should increase if the Level Switch is ok. A Level Switch wrongly connected or unconnected shows a value higher than 100. AQ Elteknik AB Ultrasound Controller Manual... -
Page 20: Advanced Settings
ADVANCED SETTINGS Set sensor MODE Air Sensor mode, Level Switch mode, Level Sensor mode Select to set either Sensor mode mode. It determines which sensor can be connected. SIMULATE Select to simulate detection of air or liquid. Press SELECT button to toggle between simulation of Air and Liq. - Page 21 Also any unscreened part of the cable between the Level Switch and Ultrasound Controller should be short. If ex-barriers are used, Ex-barriershields must be used especially if there is more than one Ultrasound Controller. AQ Elteknik AB Ultrasound Controller Manual...
-
Page 22: Level Sensor Mode
6. Level Sensor Mode In Level Sensor mode a level sensor is attached at the bottom of the container and measures the continuous liquid level. The level sensor is attached outside the container and senses through the bottom (no hole is needed). A velocity sensor can also be attached, measuring sound velocity. -
Page 23: Mounting The Level Sensor
10˚. Fill the container more than half full and put the level sensor with Level Sensor measured data. The echo silicone between it and the bottom. If there is no error go to AQ Elteknik AB Ultrasound Controller Manual... -
Page 24: Mounting The Velocity Sensor
strength is shown in dB. Small adjustments can be made of the angle of the level sensor and the thickness of the silicone layer in order to achieve maximum echo strength. Calibrate liquid once more. Then keep the level sensor in place until the silicone cures. Mounting the velocity sensor A velocity sensor (= Level Switch) must be mounted so it can measure the echo bouncing at the opposite container wall. -
Page 25: Calibration
Level Switch mode, Level Sensor mode Select to set either Sensor mode mode. It determines which sensor can be connected. RESTORE settings and calibrations Select to restore all settings and calibrations to factory-settings. AQ Elteknik AB Ultrasound Controller Manual... -
Page 26: Help
HELP HELP Select to show information about connecting the Ultrasound Controller. Level Sensor TROUBLESHOOTING Display shows: - Settings is missing - Calibration of air and/or liquid must to be done. - Some setting is missing. - Measurement cannot be done due to an error that was measured during calibration: Either level sensor or velocity sensor echo is too weak or the velocity sensor echo with air is too strong. - Page 27 The liquid is rotating and the centrifugal force makes the surface not horizontal thereby reflecting echo in wrong direction. – Try finding better position for the level sensor. AQ Elteknik AB Ultrasound Controller Manual...
-
Page 28: Gel Sensor Mode
7. Gel Sensor Mode Gel Sensor Mode can measure the presence and concentration of gel media, used in chromatography systems. It can measure single levels of gel and gel concentration behind the container wall. The Gel Sensor senses through the wall (no hole is needed). Four single levels can be measured with one Ultrasound Controller. -
Page 29: Measuring Gel
Level Switch is attached. Steel or glass wall should be in the range 1,3mm - 15 mm and plastic wall <30mm (PP<10mm). Testing on AQ Elteknik AB Ultrasound Controller Manual... -
Page 30: Mounting The Level Switch
the actual container is recommended. Any welding-joint in the wall should be avoided as it can refract the sound-beam. The ultrasound beam behaves similar to a light-beam, the direction of the echo depend on from what angle it hits the reflecting surface. The sound beam is approximately 1cm in diameter. Obstructing objects in the path between sensor and the reflecting surface may cause the beam to divert. -
Page 31: Settings
Level Switch and the container, wrong angled Level Switch, wrong settings, liquid that attenuates the sound, glass or steel wall with thickness that do not let through the selected frequency very well (try a different frequency). AQ Elteknik AB Ultrasound Controller Manual... -
Page 32: Show Data
SHOW DATA Measured data Select to show measured data. All four Gel Sensors are shown together. Pressing Gelconc. Relativ Signal RelativAtt. dB/m, Signal dB Liq WR MENU button scrolls through: sensor Gelconc. %, is the measured gel concentration. Reltiv Signal %, is measured echo signal strength in percent of calibrated echo signal strength. - Page 33 Also any unscreened part of the cable between the Level Switch and Ultrasound Controller should be short. If ex-barriers are used, Ex-barriershields must be used especially if there is more than one Ultrasound Controller. AQ Elteknik AB Ultrasound Controller Manual...
-
Page 34: Profibus Dp
8. Profibus DP Connecting Profibus The Ultrasound Controller DP72,GP72 supports Profibus DP-V0 with communication speeds up to 1,5Mbit/s. The Profibus cable connects to DP72,GP72 via a 9-pin D-sub connector see table. To terminate the Profibus cable, put 390Ω between pin6 and pin8 and 220Ω between pin6 and pin5 and 390Ω... -
Page 35: Response Data
DP72 do not accept them. Something is wrong with the parameter telegrams. The reason can be the master has wrong gsd-file or wrong gsd-file version. If no Profibus status-symbol is shown at all it means Profibus is not enabled. AQ Elteknik AB Ultrasound Controller Manual... - Page 36 Response Air Sensor Mode Level Switch Mode Level Sensor Mode Data Level Sensor 1 Level Switch 1 Air Sensor 1 bit0: velocity sensor 0=Air bit0: 0= Air 1= Liquid bit0: 0= Air 1= Liquid Efrq Wfrq 1=Liq bit1: bit0² bit1: not used bit1: - Efrq Wfrq...
-
Page 37: Technical Specifications Ultrasound Controller
9. Technical specifications Ultrasound Controller Hardware version See page 3 Software version See page 3 Weight 210g (D72,DP72,G72,GP72), 370g (D128) Operating temperature 0°C to 50°C Supply voltage 24V ± 3V DC Current consumption max 200mA Relay 1-4 potential free contacts (open when power is off) -
Page 38: 10. Parameter Settings
10. Parameter settings Air Sensor Level Switch MODE TECHNIQUE of measurements Possible values Level Switch Possible values Not set ☼ Air Sensor No Level Switch ☼ Level Switch Type LS, Technique EHCO Level Sensor Type RS, Technique WR TYPE Type LS, Technique WR Air Sensor Possible values FILTER... - Page 39 Closed: Weak Echo or >10% gel mA output Possible values disabled ☼ 1,5mA / Geldetection Attenuation GS1 Attenuation GS2 Attenuation GS3 Attenuation GS4 Gelconcentration GS1 Gelconcentration GS2 Gelconcentration GS3 ☼ indicates default setting Gelconcentration GS4 AQ Elteknik AB Ultrasound Controller Manual...
