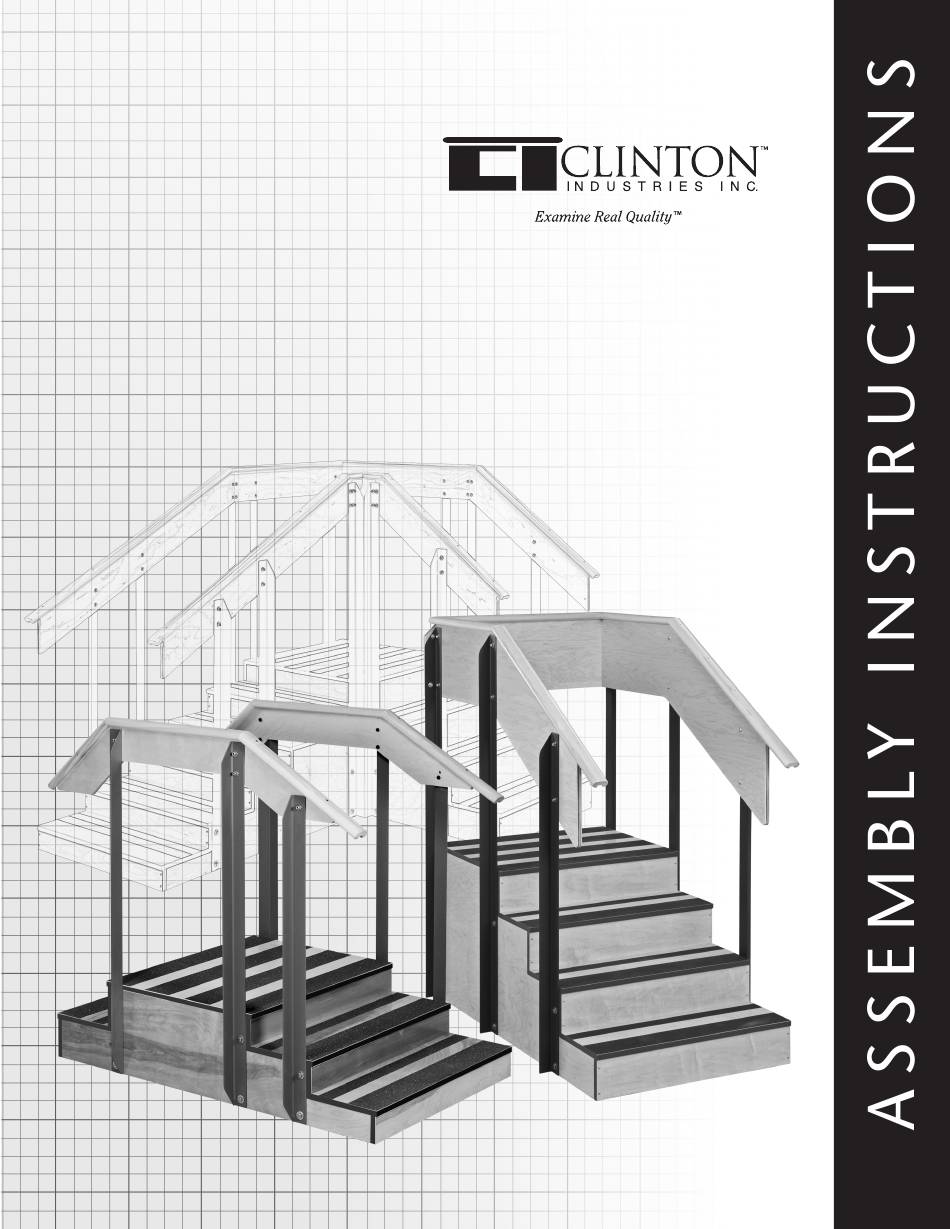

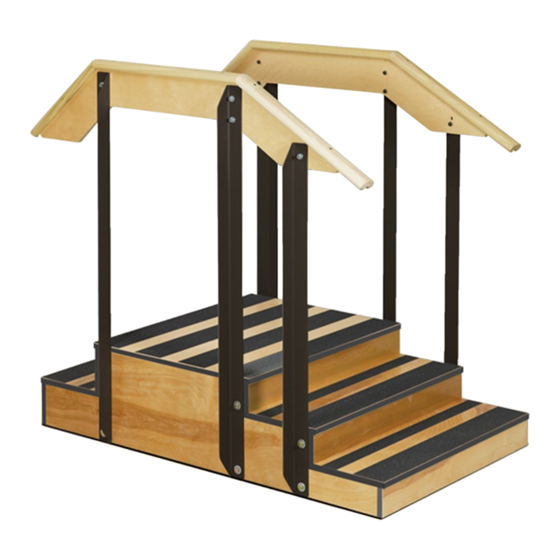

- Page 1 CLASSIC SERIES STAIRCASES MODELS 4-5500, 4-5501 & 4-5080...
-
Page 2: Hex Bolts
MODELS 4-5500, 4-5501 & 4-5080 — All Sizes MAXIMUM WEIGHT CAPACITY 500 LBS Thank you for counting on Clinton to meet your physical therapy needs by purchasing this quality equipment. All Clinton equipment is designed and manufactured to provide years of dependable service because we want you as a customer now and in the future. - Page 3 For models 4-5500-30, 4-5500-36, 4-5501- For models 4-5501-30 & 4-5501-36. Place connecting back rail (H) into position and 30 & 4-5501-36. secure with 1-1/4" silver bolts and Place platform(s) on side. 3/4" silver washer in front of 7/16" locknut. Using two persons, position left side of staircase (pre- attached handrails and uprights) on left side of staircase and line up holes.
-
Page 4: For All Models
For models 4-5080-30 & 4-5080-36 For models 4-5080-30 & 4-5080-36 STRAIGHT CONFIGURATION. CORNER CONFIGURATION. Place the straight connecting back rails (S & At back of staircase where handrails form a right T) into position between the two sections and secure with angle, fasten with 1-1/2"... -
Page 5: Intended Use
Care & Cleaning Clinton products are built to be durable. With proper care, your Clinton equipment will provide years of superior looks and performance. Clean staircase with a soft cloth and any mild cleaning agent that may be required for sanitation. - Page 6 1140 East Edison St., York, PA 17403 800-441-9131 • 717-848-3519 Toll-Free Fax 866-522-1233 Fax 717-843-5871 www.clinton-ind.com © Copyright, Clinton Industries, Inc.
