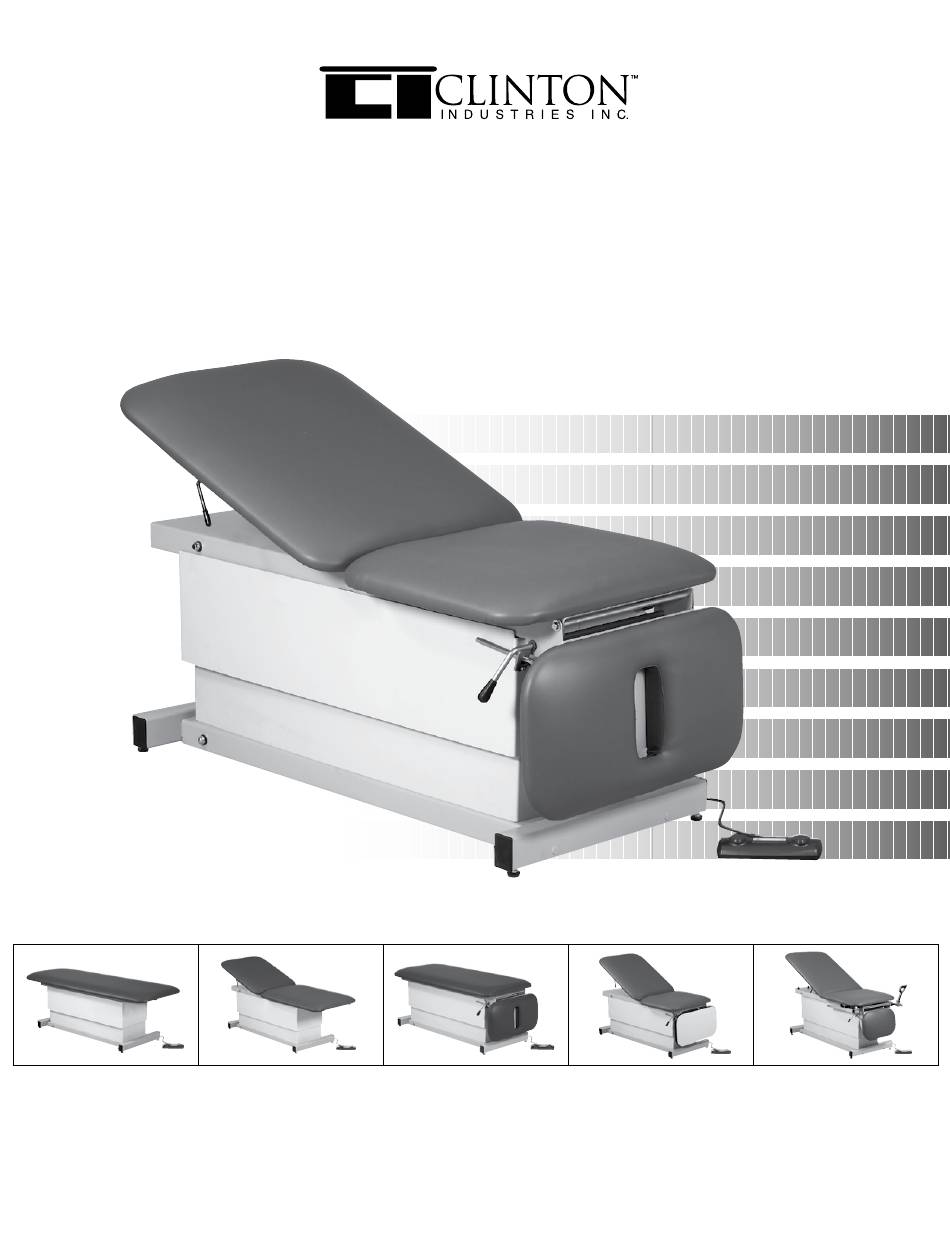

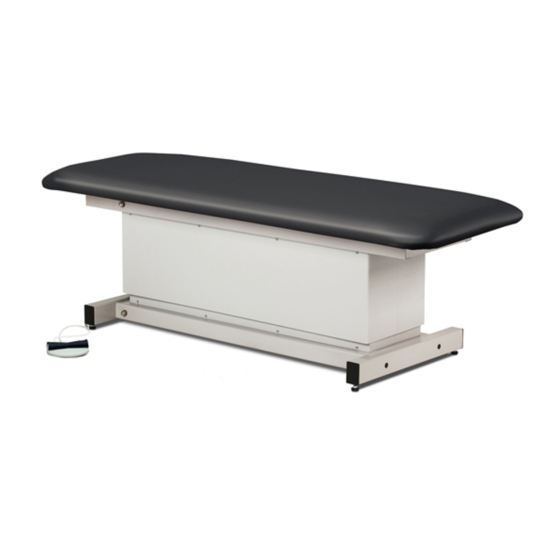

- Page 1 ™ Examine Real Quality & Value OPERATION, CARE & MAINTENANCE Shrouded PoWer TABLeS Models 81100, 81200, 81220, 81330, 81350 & 81360 ™ Examine Real Quality & Value Model 81330 Model 81100 Model 81200 Model 81220 Model 81350 Model 81360...
- Page 2 Thank you, for selecting and purchasing quality Clinton equipment. We are proud to serve your medical equipment needs with products that deliver value and offer superior performance. Please read these instructions carefully to insure your Clinton products are used and operated according to specifications and that they are ™...
- Page 3 Use only mild cleaning agents on upholstery. Clinton recommends using a 1 to 1 mix of ammonia and water or a 1 to 4 mix of bleach and water, rinse thoroughly with clean water and pat surface dry.
- Page 4 ADJUSTMENTS (continued) BACKREST CYLINDER REPLACEMENT (models 81200, 81330, 81350 & 81360 only) The backrest cylinder is replaceable in the field by following these simple directions below. Cylinder Pin Remove cotter pin. Then remove align holes in cylinder bracket with holes in table bracket by adjusting Finished view of cylinder assembly.
- Page 5 ADJUSTMENTS (continued) (models 81220, 81330, 81350, 81360 only) DROP SECTION The drop section is located at the foot-end of the table and is shown below at left in a semi-extended position. The drop section can be raised and lowered using the drop section levers on either side of the table. To lower the drop section, place your hand under the upholstered top of the drop section and move the lever forward towards the foot-end of the table.
- Page 6 TROUBLE SHOOTING ProBLeM: Table is squeaking. SOLUTION: Raise the table all the way up. Disconnect the power cord. Remove the three screws on each side of the top portion of the shroud. After removing the screws, gently guide the top portion of the shroud over the bottom portion.
- Page 7 Check to make certain foot pedal cord is properly and securely plugged into motor. If after checking all these areas, the table will not operate, or operates improperly, call a technician, or call Clinton Industries at 800-441-9131 for assistance.
- Page 8 1140 East Edison St., York, PA 17403 800-441-9131 • 717-848-3519 Toll-Free Fax 866-522-1233 Fax 717-843-5871 www.clinton-ind.com © Copyright 2012, Clinton Industries, Inc.
