HENRI Kelkay H5301F2LRH Manual

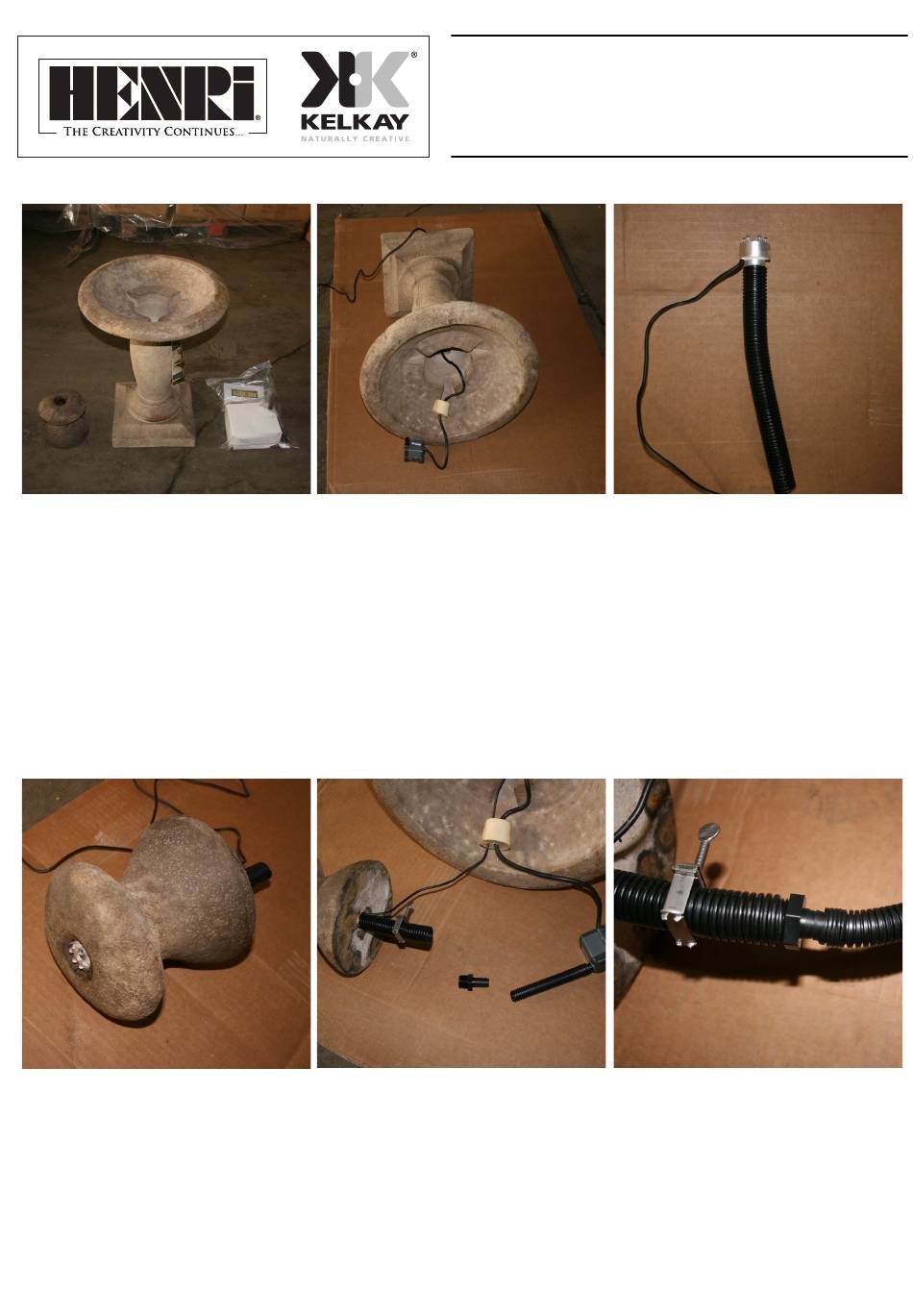

STAGE 1

Ensure you have all the correct items
before you begin the assembly
process.

STAGE 4

Feed the light cable and black plastic
tubing through the top of the fountain
and feed all the way through. This will
be an extremely snug fit; use washing
up liquid or petroleum jelly to lubricate
the tubing if it is too tight.
H5301F2LRH
Europa Bubbler

STAGE 2

Lay the main body of the fountain on
its side ensuring not to damage the
fountain; use some cardboard or matting
for protection. thread the loose end of the
pump cable through the centre of the
fountain and feed through leaving approx
30cm of cable between the fountain and
the pump. Locate the rubber stopper and
open it up wrapping it around the pump
cable. Do not push the rubber stopper
into the hole yet.

STAGE 5

Feed the metal 'clamp' over the
protruding end of the black rubber
tubing and tighten just enough to hold
it in place; this can later be used to
control the water flow. Locate the
threaded nozzle adaptor and thread the
wide end into the open end of the black
rubber tubing.

STAGE 3

Locate the L.E.D. light plume light and
large black plastic tubing and slide the
tubing over the 'stork' end of the light.

STAGE 6

Locate the small black tubing and push
one end on to the pump's adaptor (this
adaptor may be too small but there
should be another one in the
pump/instruction pack) push the other
open end on to the nozzle end of the
threaded adaptor.
1 of 2
