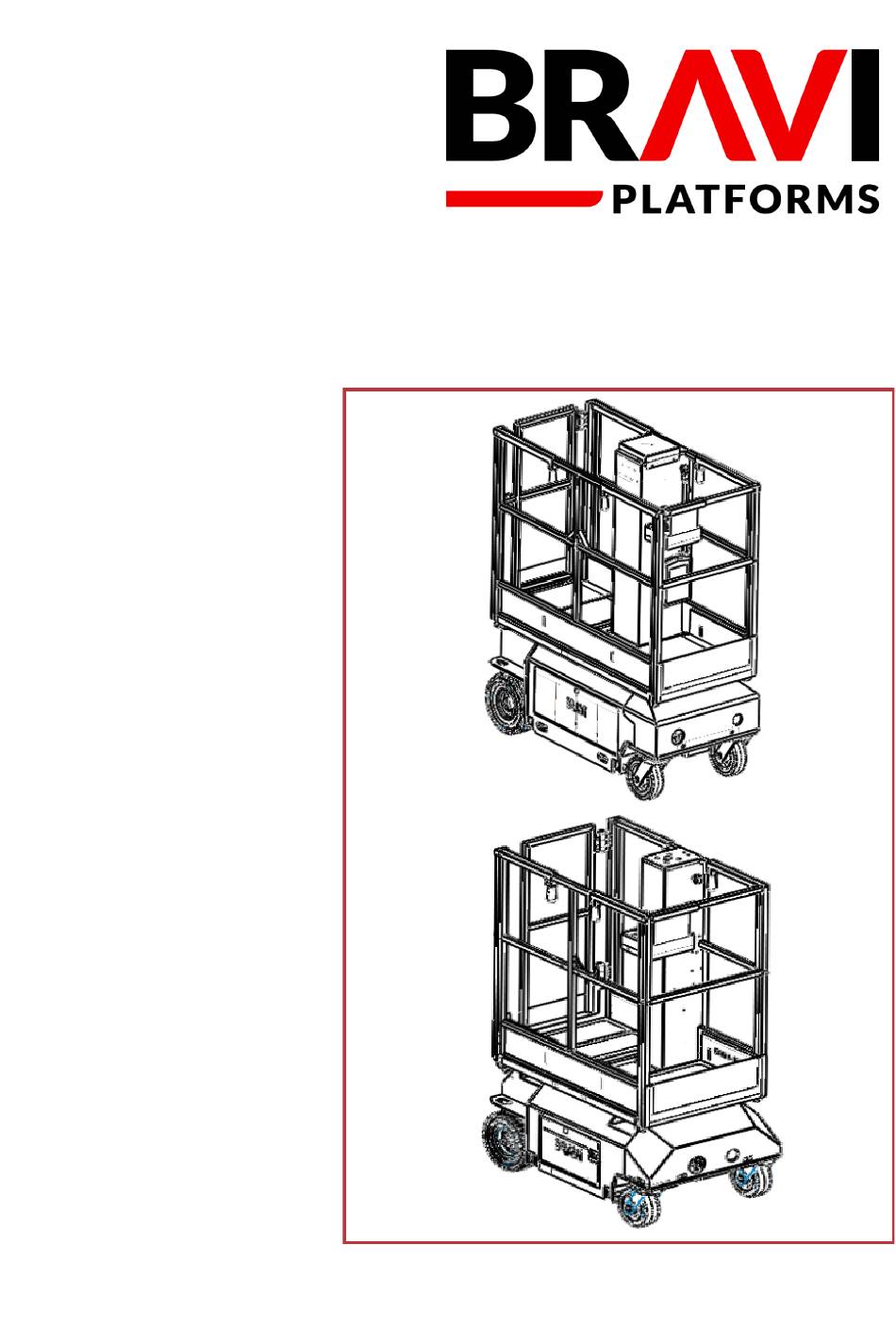

USER AND MAINTENANCE MANUAL
Original instructions
LUI WH 460
LUI HD
LUI HD WD
LUI HD EL
English
ANSI A92.20 - 2018 - AS/NZS 1418.10 (int). - EN280 2013
04-2020 Rev 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUI WH 460 and is the answer not in the manual?

Questions and answers

Related Manuals for Braviisol LUI WH 460

Summary of Contents for Braviisol LUI WH 460

  • Page 1 USER AND MAINTENANCE MANUAL Original instructions LUI WH 460 LUI HD LUI HD WD LUI HD EL English ANSI A92.20 - 2018 - AS/NZS 1418.10 (int). - EN280 2013 04-2020 Rev 01...
  • Page 2 In this way it can be obtained from the PLATFORM all the information about the reason it has been manufactured and use it in a maximum security. Remember that any update must be inserted in the manual itself as it will be indicated by Braviisol Divi- sione Meccanica srl.

  • Page 3: Maintenance

    NOTIFIED BODY: RESIDUAL RISKS Even if Braviisol Divisione Meccanica srl has done everything possible to manufacture the Platform with the greatest knowledge in its possession on security and consulting all the directives, laws and regula- tions at its disposal, still exist, even if reduced, some residual risks during the phases of:...
  • Page 4 BraviisolD.M. srl, S.S. ADRIATICA 16KM314,600 - 60022 CASTELFIDARDO (AN) ITALY. Castelfidardo, dd/mm/yyyy Legal Representative BRAVI PIERINO TEST REPORT Company: BRAVIISOL DIVISIONE MECCANICA SRL S.S. ADRIATICA 16 KM 314600 60022 CASTELFIDARDO (ÀN) ITALY Subject: AERIAL PLATFORM Model: Serial number:...

  • Page 5: Table Of Contents

    9.2 - Safety positioning, lifted basket maintenance 9.58 9.2a - If the basket does not lift electrically For models LUI HD - LUI HD WD - LUI HD EL - LUI WH 460. maintenance 9.59 9.2b - maintenance 9.59 If the basket does not lift electrically 9.3 - Caster Wheel Greasing...

  • Page 6: Part 1 Introductory Informations

    • The drawings and any other document supplied together with the Platform is property of Braviisol Divisione Meccanica srl that reserves all rights and cannot be put at disposal of third parties without Its written consent. The manufacturer hopes that you can take advantage of the multiple functions of the Platform.
  • Page 7 Each Platform has its own number, with the consequent CE marking. 1.2.2 To contact Braviisol Divisione Meccanica srl or its centres of assistance concerning the Platform, please always refer the model and serial number legibly affixed to the identification plate placed on the basket of the Platform.
  • Page 8 ART 1 NTRODUCTORY NFORMATIONS Parte 1 informazioni Introduttive 1.3 GENERAL DELIVERY NOTES Platforms and their components and/or accessories can be shipped in containers, or on a pallet wrapped in a pro- tective film, or packed in boxes (optional). Always verify that upon receipt: 1 - The packaging is intact 2 - The supply corresponds to the order specifications (see bill of lading or packing-list)
  • Page 9 IF THE WARRANTY IS NOT INCLUDED IN THE SALES CONTRACT, THE FOLLOWING GUIDELI- NES APPLY TO THE MACHINE WARRANTY. The Manufacturer BRAVIISOL SRL warrants that all new units of equipment manufactured and sold by it conform to the Company latest specifications. Moreover, Mast and hydraulic cylinder carry a Special Warranty of 10 years.
  • Page 10 DED. No employee, dealer, Sales Representative, or other person purporting to act on behalf of BRA- VIISOL DM SRL is authorized to alter the terms of this warranty, or in any manner assume on behalf of the Manufacturer any liability or obligation which exceeds BRAVIISOL DM SRL obligations under this warranty.
  • Page 11 Parte 1 informazioni Introduttive 1.5 PLATFORM DESCRIPTION 1.5.1 Platform description With “Platform” we intend the set of Platforms - LUI WH 460 - LUI HD - LUI HD WD - LUI HD EL 1.5.2 Intended Use or Platform Purpose or Function...
  • Page 12 Parte 2 Prescrizioni di Sicurezze FOREWORD TO SAFETY REQUIREMENTS The BRAVIISOL DIVISIONE MECCANICA SRL has designed the Plat- form to be safe and reliable. It is designed to place the personnel together with the equipment and materials on aerial work positions.
  • Page 13 EXTRAORDINARY MAINTENANCE OPERATIONS Any maintenance intervention highlighted by this symbol must to be required to the authorized dealer Braviisol Divi- sione Meccanica srl. 04-2020 Rev.01 2.13...
  • Page 14 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze Before using the Platform, the operator must make sure that: • The floor, where it will be used, is sufficiently leveled (leveled and without holes) • Can support the weight (see Chapter 3 Specifica- tions) •...
  • Page 15 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze 2.6 “ZERO”POWER CONDITION: DISCONNECTION FROM POWER SOURCE Before performing any cleaning, maintenance and lubricat- ing operation, it is necessary to bring the Platform to the Zero Power Condition, that is: - Platform completely lowered (see PART 5 Control Panel or, in case of maintenance, with the basket locking device - The emergency buttons pressed...

  • Page 16: Safety Prescriptions

    ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze If, in case of extraordinary interventions, it would not be possible to bring totally the Platform to the Zero PowerCondition, please signal work in progress by placing the sign on the Platform. 2.10 Never lean or sit for any reason on any part of the Plat- form, whether it is in the phase of the productive cycle, or...
  • Page 17 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze 2.14 The use, cleaning and maintenance must be strictly per- formed, unless otherwise indicated, by a single operator and never by MORE PEOPLE. The operator must always wear all work safety protections. Moreover he has to: - Wear a work overall closed at the wrists.
  • Page 18 Caution– Risk of fall It’s forbidden: - To let go on the Platform more than a person, (except for model LUI WH 460 where can go on two persons). - identify the objects that lead to exceeding the load limits for which the Platform is approved and/or prepared.
  • Page 19 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze 2.23 It is to be considered dangerous the zone within two me- ters from the Platform. The operator must be sure that there are no standing or passing people, animals, things exposed in this area and that there are no obstacles both in the lower part of the Platform (in the ground), and in the higher (as tie-rods, columns, rods or other air barriers).
  • Page 20 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze 2.28 The additional load of the Platform MUST NOT: - Exceed the working load limit (See Part 3, Specifications) - Stick out from the basket, but must be well balanced. 2.29 It is strictly forbidden to use the Platform as a crane .
  • Page 21 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze 2.32 DO NOT REPLACE CRITICAL ITEMS FOR THE STABILITY OF THE PLATFORM WITH ARTICLES WITH DIFFERENT WEIGHTS AND SPE- CIFICS. Battery total weight: 42 kg (LUI HD each battery 21 Kg ); 120Kg (LUI WH 460 each battery 30Kg) To replace all broken or worn parts, use only original spare parts.
  • Page 22 ART 2 SAFETY PRESCRIPTIONS Parte 1 informazioni Introduttive 2.37 In case it is necessary to replace worn and/or broken parts, please use exclusively original spare parts. 2.38 At the end of the work it is forbidden to leave the Platform in potentially dangerous areas, so bring it to the Zero Power Condition .
  • Page 23 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze 1 Emergency Stop Button 8 Lifting device for Handling 2 Locking knobs Basket extension Platform Manual (standard 8a – optional 8b) 3 Bumper Rubber 9 Anchor and lifting points 4 Flashing/Acoustic alarm device 10 Anti-tilt device 5 Electronic tilt control 11 Overload device...
  • Page 24 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze LUI WH 460 04-2020 Rev.01 2.24 05 -2015 Rev.1...
  • Page 25 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze LUI HD– LUI HD WD—LUI HD EL 04-2020 Rev.01 2.25 05 -2015 Rev.1...
  • Page 26 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze N° ANSI/CE DESCRIPTION Prescription for a safe use of the platform WARNING Rated Workload, Side Load, Rated number of occupants Critical components for the stability of the machine Total Batteries weight ANSI Compliance - Section 4 Close the gate before any operation performed from the basket DANGER tip-over hazard...
  • Page 27 ART 2 SAFETY PRESCRIPTIONS Parte 2 Prescrizioni di Sicurezze 003 CE 003 ANSI 005 ANSI 009 ANSI / CE 013 CE 04-2020 Rev.01 2.27 05 -2015 Rev.1...
  • Page 28 ART 3 MACHINE SPECIFICATIONS Parte 3 Caratteristiche Tecniche 3.1 MACHINE SPECIFICATIONS LUI HD serial number MODEL LUI HD LUI HD WD LUI HD EL DIMENSIONS Working Height C 4900 mm - 16 ft 6040mm - 19.3ft Platform Height A 2900 mm - 9 ft 6 in 4040mm - 12.8ft Height with basket lowered H 1747 mm - 5 ft 7 in...
  • Page 29 ART 3 MACHINE SPECIFICATIONS Parte 3 Caratteristiche Tecniche LUI HD – LUI HD WD Translatory Movement Motors Watt 500; Volt24; Nm 1.33; F.F. 1; RPM 3600; Ah26; IP 54; DUTY S2;Brake 24V +6/-10% stabilized Gearbox MRIV 50 U03A; PW 1400 min-1: 0,27 Kw; Speed: i=56; Pump 2200W;...
  • Page 30 ART 3 MACHINE SPECIFICATIONS Parte 3 Caratteristiche Tecniche 3.2 MACHINE SPECIFICATIONS LUI WH 460 serial number MODEL LUI WH 460 DIMENSIONS Working Height C 6620mm- 21 ft 8 in Platform Height A 4620mm - 15 ft 2 in Height with basket lowered H...
  • Page 31 ART 3 MACHINE SPECIFICATIONS Parte 3 Caratteristiche Tecniche LUI WH 460 serial number MODEL LUI WH 460 Translation motors Watt 1200; Volt24; Nm 3.2; F.F. 1; RPM 3600; Amp65; IP 20; DUTY S2 Gearmotors/Reducer MRIV 63 U03A; PW 1400 min-1: 0,74 Kw;...

  • Page 32: Part 3 Technical Specifications

    ART 3 MACHINE SPECIFICATIONS Parte 3 Caratteristiche Tecniche 3.3 TECHNICAL SPECIFICATIONS LUI WH EL serial number LUI HD EL MODEL LUI HD EL DIMENSIONS Working Height mm 5900 - Platform Height mm 3900 - Height of the machine at rest mm 2870 - Total Length of the machine mm 1215 -...

  • Page 33: Transport And Handling

    ART 4 TRANSPORT AND HANDLING Parte 4 Trasporto e Movimentazio- 4.1 PREMISE TO TRANSPORT AND HANDLING 4.1.a Danger crushing, collusion abrasion The staff in charge of the Platform moving must have read and understood the safety requirements in lead of this man- ual (see Part 2).
  • Page 34 ART 4 TRANSPORT AND HANDLING Parte 4 Trasporto e Movimentazio- 4.2 UNLOADING/UPLOADING PLATFORM PROCEDURES WITH A FORKLIFT 4.2.a The Platform can arrived: 4.2.a1- boxed with a pallet 4.2 a2 – wrapped in cellophane with a pallet 4.2.a3 – wrapped in cellophane without pallet 4.2.a1 - Boxed with a pallet To unload the Platform in a box with a pallet using a fork- lift , do as follows:...
  • Page 35 ART 4 TRANSPORT AND HANDLING Parte 4 Trasporto e Movimentazio- 4.2.a3 - Wrapped in cellophane without pallet To unload the Platform with cellophane by using the fork lift do as follows: -Place the forks in the suitable housings of the Platform. -Lift up the Platform very slowly for about 10 or 20 cm and …...
  • Page 36 Parte 4 Trasporto e Movimentazio- 4.3 PLATFORM LOADING/UNLOADING PRO- CEDURE BY USING RAMPS AND WINCH (FOR LUI WH 460; LUI HD; LUI HD WD) 4.3.a In order to perform the loading/unloading procedure of the Plat- form by using the ramps and the winch, proceed as follows:...
  • Page 37 ART 4 TRANSPORT AND HANDLING Parte 4 Trasporto e Movimentazio- 4.3.f Position the Platform manually on the ramps and... 4.3.g ...operate the winch carefully in order to move the Platform and/or to bring it closer to the loading and unloading ramps.
  • Page 38 ART 4 TRANSPORT AND HANDLING Parte 4 Trasporto e Movimentazio- 4.4 LOAD/UNLOAD PLATFORM PROCEDURE USING A CRANE 4.4.a To carry out the procedure to load/unload the Platform us- ing a crane please do as follows: 4.4.b Danger of cutting The operator must wear anti cut gloves -Take the shears -Take away the cellophane making attention not to hurt the hands and damage the Platform.
  • Page 39 ART 4 TRANSPORT AND HANDLING Parte 4 Trasporto e Movimentazio- 4.5 MANUAL EMERGENCY HANDLING for LUI WH 460; LUI HD; LUI HD WD; LUI HD EL. 4.5.a Pull the Q3 and/or P6 Stop/Emergency buttons. 4.5.b Turn the ignition key Q2 to the right (relative light is on with the ZAPI system) to enable the controls from below.

  • Page 40: Part 5 Control Panel And Its Description

    ART 5 CONTROL PANEL Parte 5 Pannello Comandi 5.1 CONTROL PANEL LUI WH 460; LUI HD; LUI HD WD; LUI HD EL CONTROL PANEL AND ITS DESCRIPTION The ground modules and control boxes can have different positions, personalization or composition, even divided in different panels or joined in a single block.
  • Page 41 ART 5 CONTROL PANEL Parte 5 Pannello Comandi LUI WH 460; LUI HD; LUI HD WD; LUI HD EL P5 - Joystick Module The Joystick controls the driving of the vehicle as well as the lifting and lowering of the Platform.
  • Page 42 Turned to the left it enables only the commands from the control box on the Platform board (for LUI WH 460, LUI HD, LUI HD WD and LUI HD EL. lights up the LED Q1l). Turned to the right it enables only the commands from the ground module of the chassis.
  • Page 43 ART 5 CONTROL PANEL Parte 5 Pannello Comandi Q1 - Display It is the main display of the control system and shows useful information regarding the system status and any anomalies. Q1a BATTERY CHARGE STATE The indicator of the battery charge status is represented by 10 notches: each notch represented 10% of the battery charge.
  • Page 44 ART 6 OPERATIONS Parte 6 Utilizzo 6.1 INTRODUCTION BEFORE EVERY USE 6.1.a Danger of crushing – collision and abrasion The operator in charge of using the Platform must be informed about the safety instruc- tions shown in this manual (see Part 2) and must wear work gloves and safety shoes. 6.1.b Before and after every use at the beginning of every moving the operator must always carry out:...
  • Page 45 ART 6 OPERATIONS Parte 6 Utilizzo 6.3 FUNCTION TEST Do not forget that, before carrying out the Function Test, the operator must have carried out the pre-starting inspection procedure. 6.3.a Danger – Risk of electrocution The machine is NOT insulated. 6.3.b Maintain safe clearances from electrically charged conductors (power lines) and appa- ratus.
  • Page 46 ART 6 OPERATIONS Parte 6 Utilizzo 6.3.f Function Test - B) Control and operation of the basket : 6.3.f 1 Turn the key switch Q2 to the left (control panel ). 6.3.f 2 Enter the basket, then close and secure the entrance. 6.3.f 3 Press the P3 drive mode button to select the drive function.
  • Page 47 ART 6 OPERATIONS Parte 6 Utilizzo 6.4 OPERATING INSTRUCTION - Introduction 6.4.a Warning – Generic risks Operation must be only carried out by qualified Operators who have been trained on how to use the machine. Operators must also carefully read and understand the safety regulations in Part 2 and the contents of this manual before operating the machine.
  • Page 48 11.82) intervenes preventing the basket from being lifted. Any replacement of the valve not authorized by Braviisol D.M., is forbidden. - the load does NEVER stick out more than 20 cm from both sides of the basket ,...
  • Page 49 ART 6 OPERATIONS Parte 6 Utilizzo 6.6.f Warning-Danger of Fall The operator does not, in any case, go on the railings of the basket, nor place on it stairs, boards or other things to reach higher working positions. Moreover, does not in any case lean out of the basket railing of the Platform.
  • Page 50 ART 6 OPERATIONS Parte 6 Utilizzo 6.7.f Lifting/Lowering Operation - Press once the P2 button, the LED will lighten to indicate that the lifting/lowering function has been selected. Note: when the LED is blinking or off, to restart the func- tion please press the button again.
  • Page 51 ART 6 OPERATIONS Parte 6 Utilizzo 6.9 ON REQUEST - RAISED PLATFORM ASSEMBLY FOR MODEL LUI HD WD NOTE: The superelevation kit MUST only be installed on a LUI HD WD platform and must be used only indoors on a flat floor.

  • Page 52: Part 7 Stops

    ART 7 STOPS Parte 7 Arresti 7 INTRODUCTION-SHUTDOWN PHASE The Platform can be stopped as described hereunder: 7.1 - Temporary shutdown 7.2 - Daily shutdown 7.3 - Prolonged shutdown 7.4 - Emergency shutdown 7.5 - Emergency lowering 7.6 - Manual emergency handling The following information describes how to behave in each of the aforementioned cases .
  • Page 53 ART 7 SHUTDOWN PHASE Parte 7 Arresti 7.3 PROLONGED SHUTDOWN For this kind of shutdown, please do as follows: 7.3.a Move the platform indoor, to an area protected against any water leakage or condensate; the access to this area must only be allowed to trustworthy staff (any potential external tampering condition must be eliminated thus guaranteeing the operators safety).
  • Page 54 ART 7 SHUTDOWN PHASE Parte 7 Arresti 7.4 EMERGENCY SHUTDOWN 7.4.a In case the operator is compelled to push the Stop Emer- gency button P6-Q3, perform the following operation. 7.4.b Inspect the machine to find out the cause of the emergen- cy stop.

  • Page 55: Part 8 Cleaning

    ART 8 CLEANING Parte 8 Pulizia 8.1 CLEANING 8.1.a As the Platform works in presence of dusts, it must be dai- ly or whenever it would be necessary clean it. 8.1.b The person in charge with the cleaning must have read and well understood the safety prescriptions shown in this manual (Part 2).

  • Page 56: Ordinary Maintenance

    9.1.a Routine maintenance is the key to the economic and efficient operation of the Platform. Braviisol Mechanical Division srl has worked hard to increase reliability and simplify rou- tine maintenance operations. A minimal attention to the few routine maintenance operations required will be sufficient in order to guarantee an efficient performance of the Platform.
  • Page 57 9.2 - Safety positioning, lifted basket 9.2a - In case the basket cannot be electrically lifted - For LUI WH 460. - LUI HD - LUI HD WD and LUI HD EL. 9.2b - In case the basket cannot be electrically lifted 9.3 - Caster wheel greasing...
  • Page 58 ART 9 ORDINARY MAINTENANCE Parte 9 Manutenzione Ordinaria 9.2 STANDARD SAFETY POSITION WITH LIF- TED BASKET This operation must be performed only when maintenance activities are required. The operator must use the ground control according to the following procedure: 9.2.1 Disabling all the Emergency buttons.
  • Page 59 ART 9 ORDINARY MAINTENANCE Parte 9 Manutenzione Ordinaria 9.2A THE BASKET CANNOT BE ELECTRICALLY LITED - FOR LUI WH 460 - LUI HD - LUI HD WD AND LUI HD EL 9.2a1 Bring the Platform to the Zero Power Condition (Part 2 page 2.16).
  • Page 60 Platform to the Zero Power Condition (Part 2 page 2.16). 9.4.c Remove: - For LUI HD - LUI HD WD - LUI HD EL. the front cover. - For LUI WH 460 the central cover. 9.4.d Remove the oil cap. 9.4.e Fill up with mineral oil until reaching the proper level.
  • Page 61 If the battery terminals are dirty or oxidized, perform the following actions: 9.5.c - For LUI WH 460 - LUI HD - LUI HD WD - LUI HD EL open the hatch using the black pommel. 9.5.d Loosen the nuts with a 10 mm screwdriver .
  • Page 62 9.6.c It is possible to check the water level by removing the hood. - For LUI WH 460 - LUI HD - LUI HD WD - LUI HD EL open the hatch using the black pommel. 9.6.d Remove the battery covers and make sure that the water level is above the plates of the internal parts for at least 5mm;...
  • Page 63 ART 9 ORDINARY MAINTENANCE Parte 9 Manutenzione Ordinaria 9.7 BATTERY CHARGE PROCEDURE 9.7.a Bring the Platform to the Zero Power Condition (Part 2 page 2.16). 9.7.b Warning – Battery check and recharge The full charge of the batteries must be done: -After the daily use -After a long work stoppage of the Platform -And at least once every 7 days.
  • Page 64 Platform. Do not forget that all the operations must be carried out only and strictly by maintenance technicians authorized by Braviisol Divisione Meccanica srl and who have followed a training course in the authorized assistance centers. 9.9 WIRING CHECK 9.9.a...
  • Page 65 ART 9 ORDINARY MAINTENANCE Parte 9 Manutenzione Ordinaria 9.10 INSPECTION - Introduction The user/operator should not accept operating responsibility until the Manual has been read and ful- ly understood as well as having operated the lift under supervision of an experienced and qualified operator.
  • Page 66 ART 9 ORDINARY MAINTENANCE Parte 9 Manutenzione Ordinaria 9.10b ANNUAL INSPECTION - ANNUAL INSPECTION CHECK LIST - FORM B WARNING THIS INSPECTION MUST BE COMPLETED NO LATER THAN 13 MONTHS FROM THE DATE OF THE PRIOR ANNUAL INSPECTION. FAILURE TO PERFORM THIS INSPECTION COULD RESULT IN DEATH OR SERIOUS INJURY.

  • Page 67: Troubleshooting

    TROUBLESHOOTING AND ERROR CODES ART 10 Parte 10 Ricerca Guasti 10.1 TROUBLESHOOTING AND ERROR CODES (ZAPI) MODEL LUI WH 460 TYPE DESCRIPTION W=war ning A=allar BATTERY LOW Battery low voltage The truck is in standby when the tiller switch remains open for...
  • Page 68 TROUBLESHOOTING AND ERROR CODES ART 10 Parte 10 Ricerca Guasti SENS MOT TEMP Motor temperature sensor out of order The motor does not receive the CAN message from the display or from NO CAN MSG. TILLER SMARTDRIVER KO The board does not provide positive EB WAITING FOR NODE Canbus node in alarm CURRENT SENS.KO...
  • Page 69 TROUBLESHOOTING AND ERROR CODES ART 10 Parte 10 Ricerca Guasti 10.2 Troubleshooting and error code (TRIONIC) MODEL LUI HD - LUI HD WD - LUI HD EL MOST COMMON ERRORS ERROR CODE LOW BATTERY FLASH BCI when at LOW BATTERY DEAD BATTERY FLASH BAT on CAN DISPLAY BATTERY CHARGING...
  • Page 70 ART 11 TECHNICAL INFORMATIONS Parte 11 Informazioni di assistenza tecnica 11.2 HYDRAULIC DIAGRAM - LUI WH 460 1 - Serbatoio 2 - Pompa elettrica 3 - Valvola di massima 4 - Elettrovalvola di blocco 5 - Valvola unidirezionale 6 - Tappo...
  • Page 71 ART 11 TECHNICAL INFORMATIONS Parte 11 Informazioni di assistenza tecnica 11.3 HYDRAULIC DIAGRAM LUI HD - LUI HD WD - LUI HD EL 1 Serbatoio Oil tank 2 Elettropompa Motor pump 3 Valvola di massima Unlock valve(loading capacity) 4 Elettrovalvola di blocco Block solenoid 5 Valvola unidirezionale One way valve...
  • Page 72 ART 11 TECHNICAL INFORMATIONS Parte 11 Informazioni di assistenza tecnica 11.5 ELECTRIC DIAGRAM - LUI MINI WH 460 04-2020 Rev.01 11.72 05 -2015 Rev.1...
  • Page 73 ART 11 TECHNICAL INFORMATIONS Parte 11 Informazioni di assistenza tecnica 11.6 SCHEMA ELETTRICO - 11.7 TRIONIC) 11.7 ELECTRIC DIAGRAM (TRIONIC) LUI MINI 220 - LUI Mini HD - LUI Mini HD S.I.W./S.I.E. LUI HD - LUI HD WD - LUI HD EL GROUND MODULE 04-2020 Rev.01 11.73...
  • Page 74 ART 11 TECHNICAL INFORMATIONS Parte 11 Informazioni di assistenza tecnica TS100 PIN DESCRIPTION INPUT PCAN-1 CAN1H TO CAN DISPLAY MODULE (Plat) PCAN-2 CAN1L TO CAN DISPLAY MODULE (Plat) PCAN-3 Shield PRS232-1 RS232 B+ supply PRS232-2 RS232 Rx to DIAGNOSTIC CENTER PRS232-3 RS232 Tx to DIAGNSOTIC CENTER...
  • Page 75 ART 11 TECHNICAL INFORMATIONS Parte 11 Informazioni di assistenza tecnica CONTROL BOX MODULE 04-2020 Rev.01 11.75 05 -2015 Rev.1...
  • Page 76 ART 11 TECHNICAL INFORMATIONS Parte 11 Informazioni di assistenza tecnica CAN TILLER DESCRIPTION INPUT P10-1 out 1 TILT ALARM P10-2 out 2 OVERLOAD ALARM P10-3 ana 1 HALL A/B (Drive FWD/REV) P10-4 ana 2 HALL C/D (STEER LEFT/RIGHT) P10-5 5V for ana 5V for Joystick P10-6 neg for ana...
  • Page 77 ART 12 ANNEX Parte 12 Allegati FREQUENT INSPECTION CHECK LIST MODEL ______________________ SERIAL NUMBER ______________________ YEAR OF CONSTRUCTION ______________________ DESCRIPTION ______ 1. Verification of the controls detailed in the pre-start list. ______ 2. Check oil level and appearance (light brown). ______ 3.
  • Page 78 ART 12 ANNEX Parte 12 Allegati ANNUAL INSPECTION CHECK LIST - FORM B Date: Serial Number: Model: Date last inspection : Date placed into Service Customer: Dealer: Address: Address: City/State/ZIP code: City/State/ZIP code: Phone: Phone: Contact Name: Contact Name: DECALCOMANIA ELECTRICAL COMPONENTS Legibility Ground module operation...

  • Page 79: Annexes

    All the Aerial Platforms showed in this Manual can have dedicated extra equipment that can be installed only if supplied by Braviisol D.M. srl. or its approval. Extra equipment can be used only if the User has read and understood his responsibilities shown in this manual and in the extra equipment User Manual supplied with each device.
  • Page 80 ART 12 ANNEX Parte 12 Allegati ANNEX 2 Wheel lock device: It is the device (P1) described in part 5 - Control panel of this user manual. The wheel lock is enabled by moving the selector to the right or by pressing the corresponding button, allowing the vehicle to be driven only towards a straight line, both from and towards the other.
  • Page 81 BRAVIISOL Divisione Meccanica S.r.l. S.S. 16 Adriatica km. 314,600 60022 Castelfidardo (AN) Tel. 071.7819090 Fax 071.7819355 E-mail: info@bravi-platforms.com Website: www.bravi-platforms.com Spare parts: www.bravi-parts.com...
