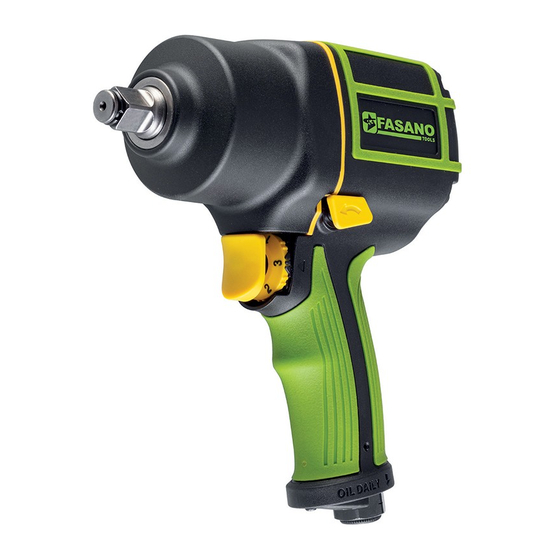

AIR IMPACT WRENCH
Rev.102018
FGA 309
The reproduction of this document (even in partial form) is prohibited without the Fasangas S.r.l. authorization

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FGA 309 and is the answer not in the manual?

Questions and answers

Related Manuals for FASANO TOOLS FGA 309

Summary of Contents for FASANO TOOLS FGA 309

  • Page 1 AIR IMPACT WRENCH Rev.102018 FGA 309 The reproduction of this document (even in partial form) is prohibited without the Fasangas S.r.l. authorization...

  • Page 2: Table Of Contents

    CONTENT GENERAL WARNINGS TECHNICAL FEATURES OF THE TOOL IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS FOR THE USE OF THE TOOL MAINTENANCE TROUBLESHOOTING DISPOSAL INFORMATIONS EC DECLARATION OF CONFORMITY WARRANTY...

  • Page 3: General Warnings

    2. TECHNICAL FEATURES OF THE TOOLS Model: FGA 309 Type: impact wrench Weight: 1.99 kg (4.40 lb)

  • Page 4: Important Safety Instructions

    3. IMPORTANT SAFETY INSTRUCTIONS When using this air tool, the following basic safety precautions should always be followed to reduce the risk to personal injury: Always wear safety glasses with side shields in accordance with applicable regulations. Air powered equipment are capable of propelling materials such as metal chips, saw dust and other debris at high speed, which could result in serious eye injury.

  • Page 5: Instructions For The Use Of The Tool

    4. INSTRUCTIONS FOR USE OF THE TOOL Before each use: ATTENTION Before proceeding with the operation of lubrication, detachment / attachment, adjustment or installation of accessories, disconnect the air supply hose from the tool, having first taken care to close the tap of compressed air supply Drain water from air compressor tank and condensation ATTENTION Always use clean, dry air at 90 PSI (6.2 bars) maximum air pressure.

  • Page 6: Maintenance

    To switch rotation, push the switch (2). WARNING Do not change the tool direction/speed of rotation while it is running. To adjust output power, turn the regulator (3) have the medium torque that correspond at 2/3 of the max. torque approximately To start the machine, simply pull the trigger (1).

  • Page 7: Disposal Informations

    7. DISPOSAL INFORMATIONS When the tool is not usable and not repairable, dispose it according to regulations of the place in order to safeguard the environment. 8. EC DECLARATION OF CONFORMITY This product complies with the dispositions of the following European Directives and Harmonized Standards: EN ISO 12100:2010 EN ISO 11148-6:2012 2006/42/EC...
